Unmanaged Switch

www.alvasta-tech.com / Enterprises / Planet / Planet Lan Switches / Unmanaged Switch / GSW-1600HP

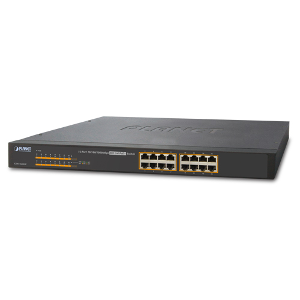

GSW-1600HP

GSW-1600HP
16-Port 10/100/1000Mbps 802.3at PoE+ Ethernet Switch


Key Features

Interface
  • 16-Port 10/100/1000Mbps Gigabit Ethernet RJ-45 ports
  • Each port supports 52V DC power to PoE Powered Device
Power over Ethernet
  • Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet
  • Up to 16 IEEE 802.3af / IEEE 802.3at devices powered
  • Supports PoE Power up to 30 Watts for each PoE port
  • Auto detect powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
Switching
  • Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • 9K Jumbo Frame supports at all speed (10/100/1000Mbps)
  • Automatic address learning and address aging
  • Supports Pre-Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Hardware
    • 19-inch desktop size, 1U height
    • LED indicators for PoE ready and PoE activity
    • Ethernet Link Energy-Saving technology
- Link down power saving- Intelligent scales power based on cable length
