Unmanaged Switch

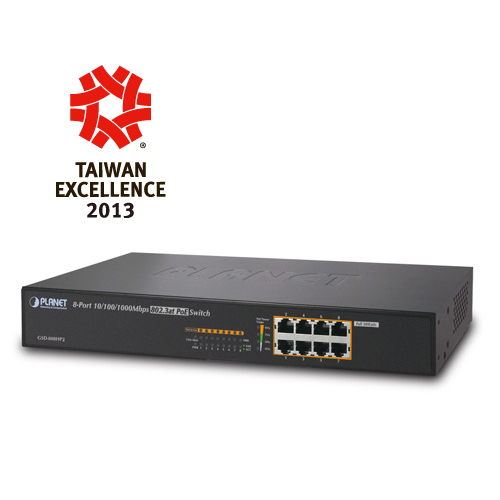

GSD-808HP2 8-Port 10/100/1000Mbps 802.3at PoE Desktop Switch - 240W

Key Features

RJ-45 Interface

• 8-Port 10/100/1000Mbps Gigabit Ethernet ports

PoE

• 8-Port supports 56V DC power to PoE Powered Device
• Complies with IEEE 802.3af / 802.3at Power over Ethernet End-Span PSE
• Up to 8 IEEE 802.3af / 802.3at devices powered
• 240-watt PoE Budget for whole system
• PoE Power up to 30 watts for each 802.3at PoE port
• Over Temperature Protection support
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m

Switching

• Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X
• Flow control for Full Duplex operation and back pressure for Half Duplex operation
• Integrates address look-up engine, supporting 8K absolute MAC addresses
• 9K Jumbo Frame supports at all speed (10/100/1000Mbps)
• Automatic address learning and address aging

Hardware

• 13-inch desktop size mountable in 19-inch rack
• LED indicators for system Power, Fan Failure, per port speed, Link / Act
• LED indicators for per port PoE In-Use and PoE Power Usage (25%, 50%, 75% and 95%)
• 1 fan to provide stable and efficient power performance
• Ethernet Link Energy-saving technology ?- Link down power saving
  ?- Intelligent scales power based on cable length
