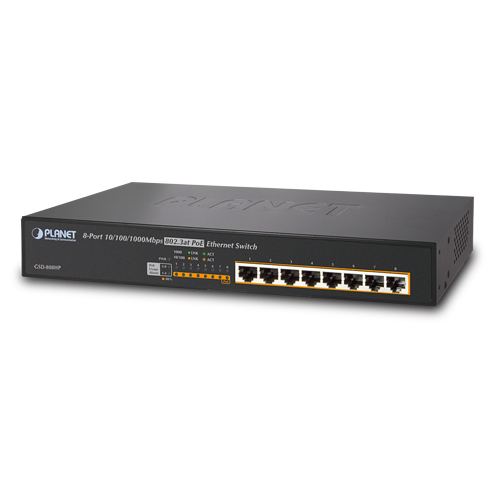

GSD-808HP

GSD-808HP
8-Port 10/100/1000bps 802.3at PoE Desktop Switch


Key Features

RJ45 Interface
  • 8 10/100/1000Mbps Gigabit Ethernet ports
  • 8-Port supports 52V DC power to PoE Powered Device

Power over Ethernet
  • Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet End-Span PSE
  • Up to 8 IEEE 802.3af / IEEE 802.3at devices powered
  • Supports PoE Power up to 30 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • PoE Usage Alarm LED
  • Remote power feeding up to 100m

Switching
  • Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • 9K Jumbo Frame supports all speeds (10/100/1000Mbps)
  • Automatic address learning and address aging
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

Hardware
    • 12-inch desktop size, 1U height
    • LED indicators for PoE ready, PoE activity and PoE Usage Alarm
    • Fanless design
    • Ethernet Link Energy-Saving technology
- Link down power saving- Intelligent scales power based on cable length
