R06IB3S-IPA1

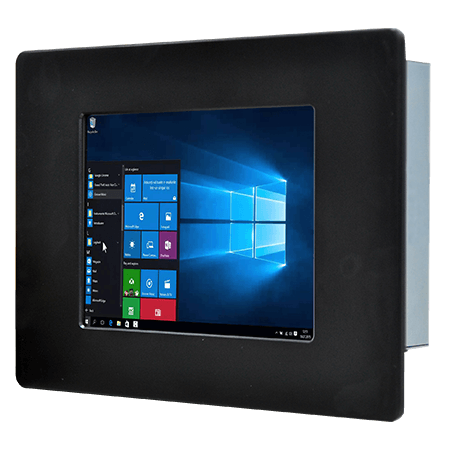

6.5" Intel® Celeron® N2930 Front IP65 Panel PC

KEY FEATURES

• 6.5" TFT SVGA LCD
• Intel® Celeron® N2930 Quad Core 1.83 GHz Processor
• 1 x SO-DIMM, max. 8 GB DDR3L 1600
• Integrated VGA, Dual-channel 24-bit LVDS, HDMI
• 2 x Gigabit Ethernet
• 1 x SATA, 1 x USB 2.0,1 x USB 3.0, 1 x HDMI, 2 x COM, 1 x Mini PCIe slot

Download Datasheet

Waterproof Front IP65 Design

Winmate's Front IP65 Series Panel PC built for wet and dusty applications; it is rated to IP65 and supports water and dust resistance while keeping a compact and narrow bezel design, suitable for use in wet and dusty environments such as factory automation, outdoor kiosks, swimming pool and SPA kiosk, and others.

Intuitive Operations with the Touchscreen

For the convenience of the operators working in the industrial environment, the Front IP65 Panel PC Series offers flexible surface options such as cover glass (when touch is not required) and a resistive touch screen to meet different specifications.

HDMI, VGA Signal Interfaces

For easy integration to all embedded boards and systems,
the Front IP65 Series Panel PC comes with VGA, HDMI signal
interfaces. Both interfaces are easy to use and support most
of the industrial and commercial applications.

Easy Installation

The Front IP65 Series Panel PC has a unique rubber (O-ring) on the rear of the front bezel. This design allows sealing the front bezel and the customer's fixture to prevent water and dust from entering the enclosure. Moreover, the panel pc is easy to install inside a cabinet or a rack for various applications.

Suitable for Outdoor Kiosk Applications

When embedded in an enclosure, the Front IP65 Series Panel
PC is suitable for use in wet and dusty industrial environments. When installed correctly, the panel pc rated IP65 from the front side withstands rigors of outdoors - water, humidity, cold, heat, sunlight, airborne particles – making it suitable for outdoor kiosks in parking, gas stations, swimming pools, and other locations.
