GS-2240-24T4X

GS-2240-24T4X

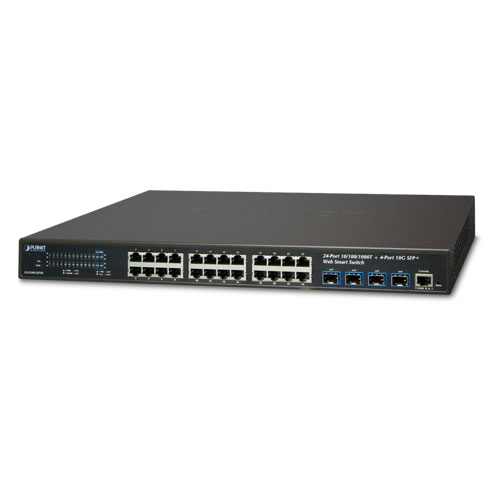

24-port 10/100/1000T + 4-port 10G SFP+ Web Smart Switch

Key Features

Physical Port

24 10/100/1000BASE-T Gigabit RJ45 copper ports
4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
RJ45 to RS232 DB9 console interface for basic management and setupS

Layer 2 Features

Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Supports VLAN

- IEEE 802.1Q tagged VLAN- IP subnet-based VLAN- MAC-based VLAN- Protocol-based VLAN- Private VLAN

Supports Spanning Tree Protocol

- STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)

Supports Link Aggregation

- IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)

Provides port mirror (many-to-1)

Multicast

Supports IGMP snooping v1, v2 and v3
Querier mode support
IGMP router port

Security

DHCP snooping to filter distrusted DHCP messages
MAC security

- Static MAC address- MAC binding- MAC auto binding- Per port MAC address entries limitation

Storm control

- Broadcast, multicast, unknown-unicast
Management

IPv4 management
Switch management interface

- Web switch management- Telnet command line interface- Console command line interface- SNMP v1, v2c

System maintenance

- Firmware upload/download via HTTP- Configuration upload/download through web interface- Hardware reset button for system reboot or reset to factory default

Link Layer Discovery Protocol (LLDP)
Ping diagnostics
Trace-route
SNMP trap for interface linkup and linkdown notification
Log management

Layer 2 Web Smart Ethernet Switch

GS-2240-24T4X

Layer 2 Web Smart Ethernet Switch
