Key Features

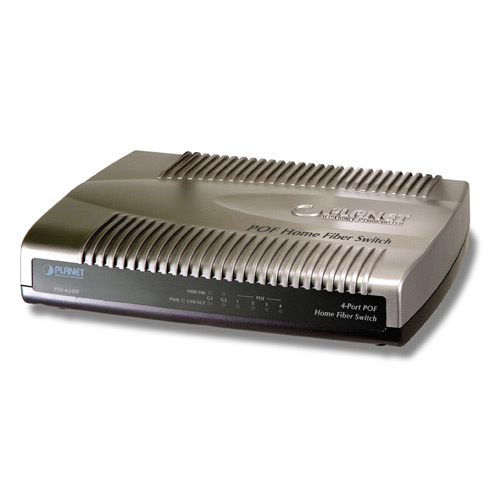

| • Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit 　Ethernet standard • 4-Port 100Base-FX POF Web Smart Switch • 2 Gigabit interfaces (One 1000Base-T port and one Gigabit mini-GBIC interface) • Each Switching ports support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet), 　1000/2000Mbps (Gigabit Ethernet) supported • Auto-MDI / MDI-X detection on RJ-45 port • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) • High performance Store and Forward architecture, broadcast storm control, runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth • 4K MAC address table, automatic source address learning and ageing • 2.75Mb embedded memory for packet buffers • Remote Web interface for Switch management and setup • Broadcast Storm Control support • Supports up to 6 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN • Supports QoS , bandwidth control and MAC address filter / TCP & UDP filter on each port • Supports port mirroring function and IGMP Snooping v1 / v2 • Firmware upgrade through Web interface • Password setting, IP setting and device description setting through Planet Smart discovery utility • Desktop placement size • Internal full-range power supply suitable for worldwide use • EMI standards complies with FCC, CE class A |
