Layer 2 Managed Switch

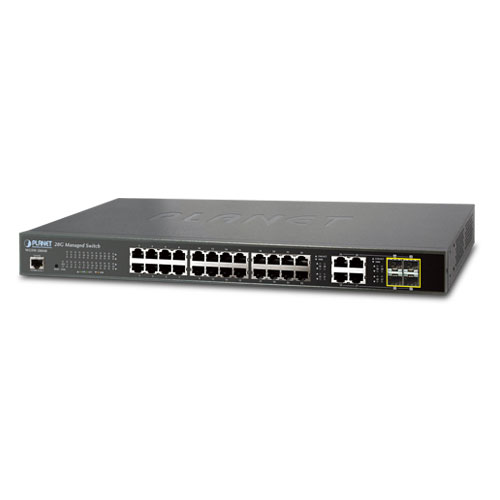

WGSW-28040 24-Port 10/100/1000T + 4-Port Gigabit TP/SFP Combo Managed Switch

Key Features

Physical Port

• 28-Port 10/100/1000Base-T Gigabit RJ45 copper
• 4 100/1000Base-X mini-GBIC/SFP slots, shared with Port-25 to Port-28
• RJ45 console interface for switch basic management and setup

Layer 2 Features

• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Supports VLAN
- IEEE 802.1Q tagged VLAN- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Protocol VLAN- Voice VLAN- Private VLAN- Management VLAN- GVRP
• Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
• Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 8 trunk groups, up to 8 ports per trunk group
• Provides port mirror (many-to-1)
• Loop protection to avoid broadcast loops

Quality of Service

• Ingress / Egress Rate Limit per port bandwidth control
• Storm control support
- Broadcast / Unknown-unicast / Unknown-multicast
• Traffic classification
- IEEE 802.1p CoS- TOS / DSCP / IP Precedence of IPv4 / IPv6 packets
• Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

• Supports IGMP snooping v2 and v3
• Supports MLD snooping v1, v2
• IGMP querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering

Security

• Authentication
- IEEE 802.1X port-based network access authentication- Built-in RADIUS client to co-operate with the RADIUS servers- RADIUS / TACACS+ login user access authentication
• Access Control List
- IPv4 / IPv6 IP-based ACL- MAC-based ACL
• MAC Security
- Static MAC- MAC Filtering
• Port security for source MAC address entries filtering
• DHCP snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• DoS attack prevention
• SSH/SSL

Management

• IPv4 and IPv6 dual stack management
• Switch management interface
- Web switch management- Console / Telnet command line interface- SNMP v1, v2c and v3- SSH / SSL secure access
• User privilege levels control
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System maintenance
- Firmware upload / download via HTTP / TFTP- Configuration upload / download through Web interface- Dual images- Hardware reset button for system reboot or reset to factory default
• SNTP Network Time Protocol
• Cable diagnostics
• Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
• SNMP trap for interface link up and link down notification
• Event message logging to remote Syslog server
• Four RMON groups (history, statistics, alarms and events)
• PLANET Smart Discovery Utility
