W24L100-RKS1ML

W24L100-RKS1ML

W24L100-RKS1ML

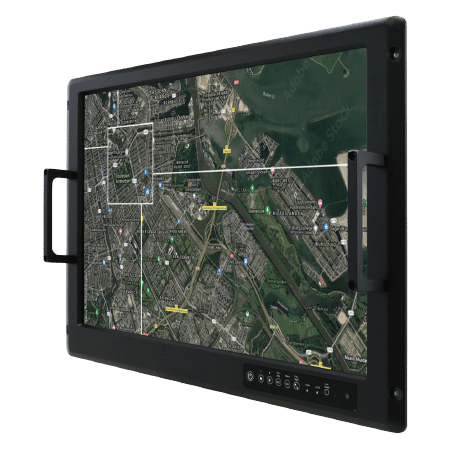

24" Rack Mount Defence Display

KEY FEATURES

  • Compliant MIL-STD 810G/ MIL-STD 461E, Rack Mount Defence Display
  • Rack mount mechanical design, supports VESA mount
  • High image quality, 1920 x 1200 pixels resolution
  • AR protection glass
  • Military-grade power connector (MIL-DTL-38999/1)
  • AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional)
  • Resistive Touch (Optional)
  • Build-in Light Sensor for Auto Brightness Control

Download Datasheet

Reliable Computing Tailored for Defence Applications

To meet the regulatory requirements of the military and defense, all Winmate's Defence Console Rack Displays are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standard.  Winmate performs in-house reliability test to ensure optimal performance in harsh defence environments.

Command Center Focused Design

Increase the efficiency of the command center and control room personnel. Built your ergonomic command console that complies with military and defense precise needs with Defence Console Rack Displays that feature rack mount mechanical design (8U).

Defence – Grade Connectors for Compatibility with Existing Defence Systems

The Defence Console Rack Displays come with MIL-DTL-38999 type I power input connector – high-performance cylindrical connector for cable-to-panel applications in the defence, air traffic control, or other mission-critical situations. Compatible with existing defence systems.

Ultimate Touch Experience and Convenient On-Screen User Controls

The Defence Console Rack Displays feature a user-friendly touchscreen and physical OSD buttons for fast access to the central control located on the front panel.

Auto Brightness Control with Built-in Light Sensor

The Defence Console Rack Displays feature a built-in light sensor for auto-brightness control. The screen brightness effortlessly changes with the lighting conditions throughout the day.
