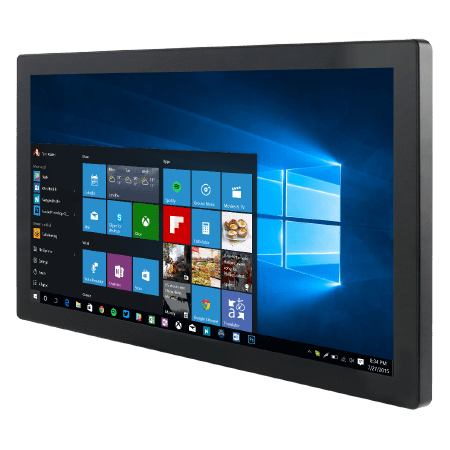

W24IK7T-GCA223.8" Intel® Core™ i3/i5/i7 Standalone Panel PC HMI

KEY FEATURES

• 23.8" 1920 x 1080 with P-CAP touchscreen, Standalone Panel PC HMI
• Intel® 7th Generation Core™ i3/i5/i7 processor (Kaby Lake)
• Front IP65 for protection against water and dust
• A true flat, easy-to-clean front surface with edge-to-edge design
• Flexible storage devices, one 2.5-inch HDD and one SSD socket
• DP Support 4096x2304@60Hz
• HDMI Support 2560x1600@60Hz

Download Datasheet

An actual flat, easy-to-clean front surface with an edge-
to-edge design

Winmate's Flat aluminum P-Cap panel PCs and display go beyond
that of the standard industrial panel computers with an elegant,
edge-to-edge design. Easy to maintain and clean, to prevent water
or liquid droplets penetrates every opening in the device.

Front IP65 Protection against water

Winmate multipurpose and waterproof with Front IP65 panel pc is protected against outer dust and water splash, and ideal for use in harsh environments.

Complete input range power supply

Since panel computers are not mobile systems to be carried around,
they have no internal battery (other than a possible backup battery
or uninterruptible power supply). Instead, the devices use DC power
via conventional external AC adapters. Winmate's standard
configurations use 12 Volt DC with lockable power connectors. For
applications that require a wide/variable input power range, Winmate offers a 9 to 36 Volt (for Intel Bay Trail-based panels) and 9 to 24 Volt (for ARM Freescale-based models) wide-range power option.
