W07IP3S-PCO1AC-POE

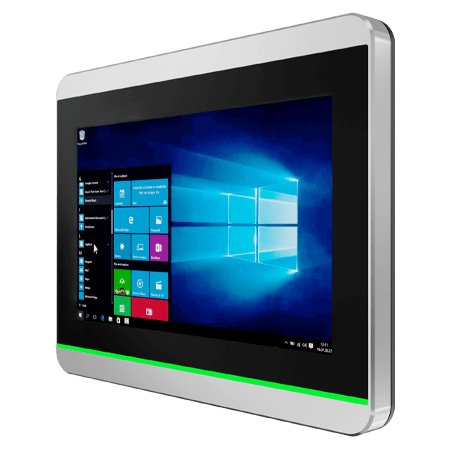

7" Intel® Pentium® N4200 S Series HMI Panel PC

KEY FEATURES

• 7” 1024 x 600 PCAP multi-touch screen
• Intel® Pentium® N4200 Apollo Lake Processor
• Fanless cooling system and ultra-low power consumption
• Dual Gigabit Ethernet
• RGB LED Light Bar
• Front IP65 and full IP22 ratings
• Optional 2 MP Front Camera
• Optional HF RFID Reader
• Support PoE function
• Stylish design for room booking, access control and room information applications

Download Datasheet

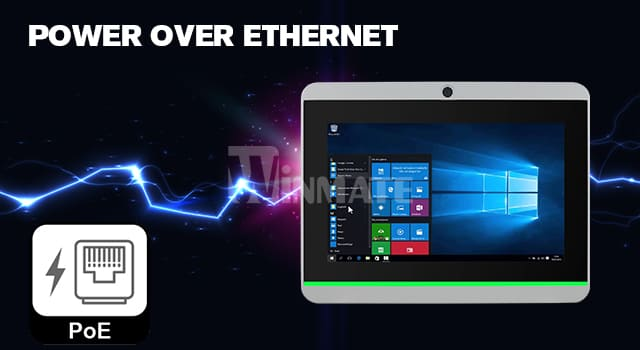

Power over Ethernet (Data and Power connections in a single cable)

The hardware installation becomes easier with Power over Ethernet. PoE reduces the number of cables needed for the connection of various devices. This infrastructure allows for centralized power management; therefore, it is a cost-effective solution for access control, home, and industrial automation.

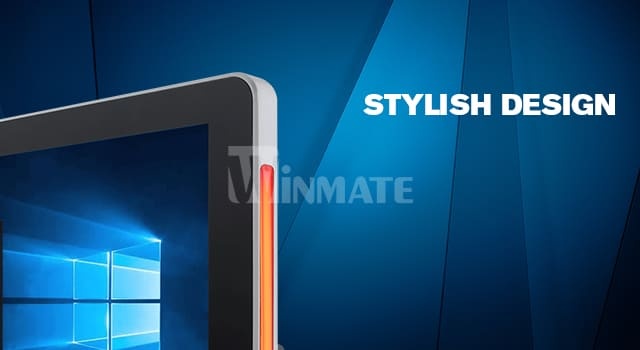

Stylish Design

Winmate’s S-series HMIis 35% thinner than a traditional Panel PC.
With the slim design, it has an aesthetically pleasing look that fits
modern interiors and exteriors. Its true flat surface is not only for
a stylish look but easy to maintain and clean. No more clogged
dust on the edges.

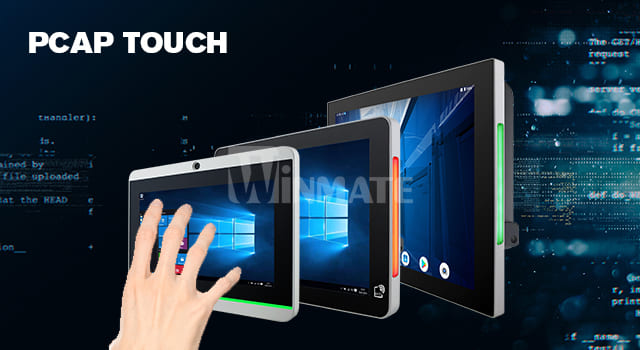

P-Cap Touch (Resistant to scratches)

The glass cover lens provides great protection from scratches. P-Cap Touch supports 4-point multi-touch and can easily be controlled by fingers. This technology allows enjoying every touch and improving the convenience of using the device. Thus, it helps to enhance the overall customer experience.

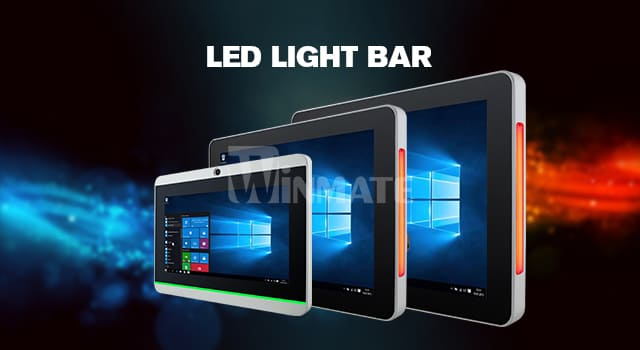

LED Light Bar (Indicates the status of the machine or process afar)
and HF RFID/NFC (Limited Access Control)

LED Light Bar is designed to control the status of the running processes
afar, yet saving energy by keeping a display turned off. The settings are easily programmable according to your preferences. Choose one of the four colors - red, green, blue, or orange to send valuable messages based on your settings. Also, HF RFID/NFC helps to limit the access to only the personnel in charge. Greater control for security purposes is now available with S-Series HMI.

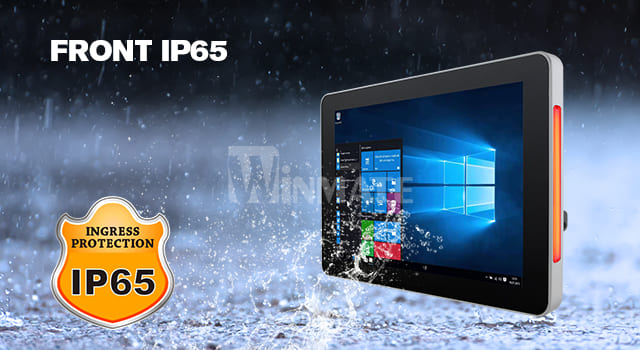

Front IP65 (Water and Dust Proof)

Don't worry whether somebody split the coffee over S-Series HMI, or if the raindrops reach the device! This HMI is sealed with IP65 on the front side and is protected against possible damages from outer dust and water splash.
