W07IM3S-GST1

W07IM3S-GST1

W07IM3S-GST1

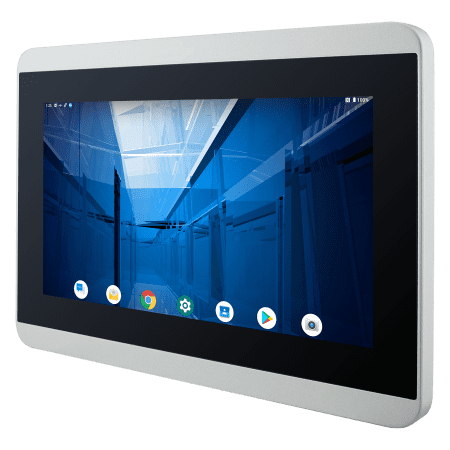

7" ARM A53 G-WIN GS-Series Full IP65 PCAP Panel PC

KEY FEATURES

  • 7” 1024 x 600 with P­CAP touchscreen
  • ARM A53 Quad Core 2.0GHz
  • Fanless cooling system and Ultra­low power consumption
  • Full IP65
  • Onboard 32GB eMMC
  • Onboard LPDDR4 4GB
  • 1 x LAN, 1 x RS232, 1 x USB, 1 x Micro USB, 1 x Micro SD
  • Support Android or Linux operating system

Download Datasheet

Easy-to-Clean Flat Surface

Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The Panel PC is easy to clean, plus the screen is resistant to water and liquid droplets.

Dust and Water Protection

The dust and waterproof Panel PC complies with IP65 standards. Plus, the M12 connectors are waterproof for varying industrial environments.

Fanless Cooling System

The fanless design eliminates dust circulation for improved product longevity – especially in heavy-duty applications where dusty conditions are prevalent.

Comprehensive I/O Ports

Combining ruggedness with a range of I/O ports makes this device highly usable for heavy-duty industrial applications. Plus, the waterproof connectors come with screw-on caps for added protection.

Anti-Shock and Vibration

The G-Win series is as tough as it gets. The Panel PCs are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensure the screen and housing are both rugged to the max.
