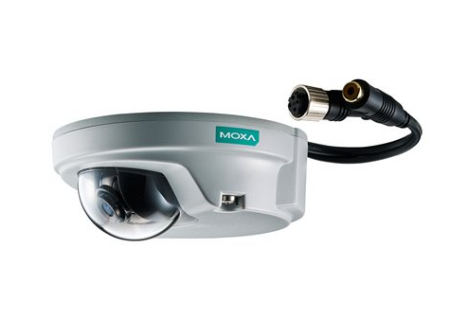

VPort P06-1MP-M12 Series

Features and Benefits  1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps  High quality video imaging with DNR and WDR  Up to 3 H.264 or MJPEG independent video streams  DynaStream™ for optimized network efficiency  CBR Pro™ for high image quality in limited bandwidth transmissions  Supports DHCP options 66 and 67 for auto-configuration  1 built-in audio input or microphone  ONVIF support for standardization and interoperability

Introduction

The compact VPort P06-1MP-M12 cameras provide an HD (720P, 1280 x 720) video image, and feature 3 H.264/MJPEG video streams, giving them the versatility and ruggedness to excel in many different installations and environments for mobile IP video surveillance applications. In addition, the cameras are compliant with mandatory sections of EN 50155,  covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications. The cameras feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature range, a rugged M12 Ethernet port, 1 audio input, PoE power inputs, IP66 rain and dust protection, a dehumidifying membrane, and a selectable lens.

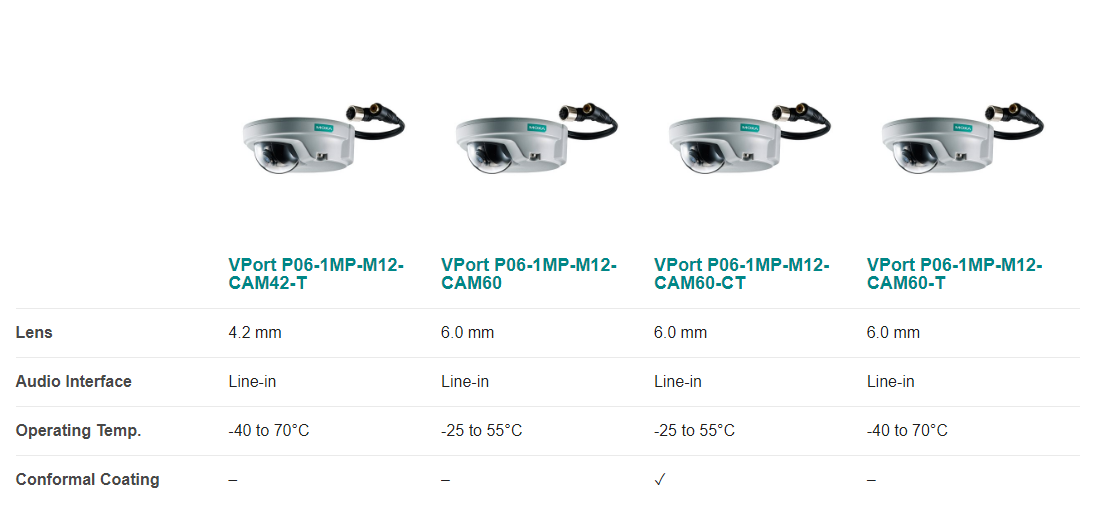

Models
