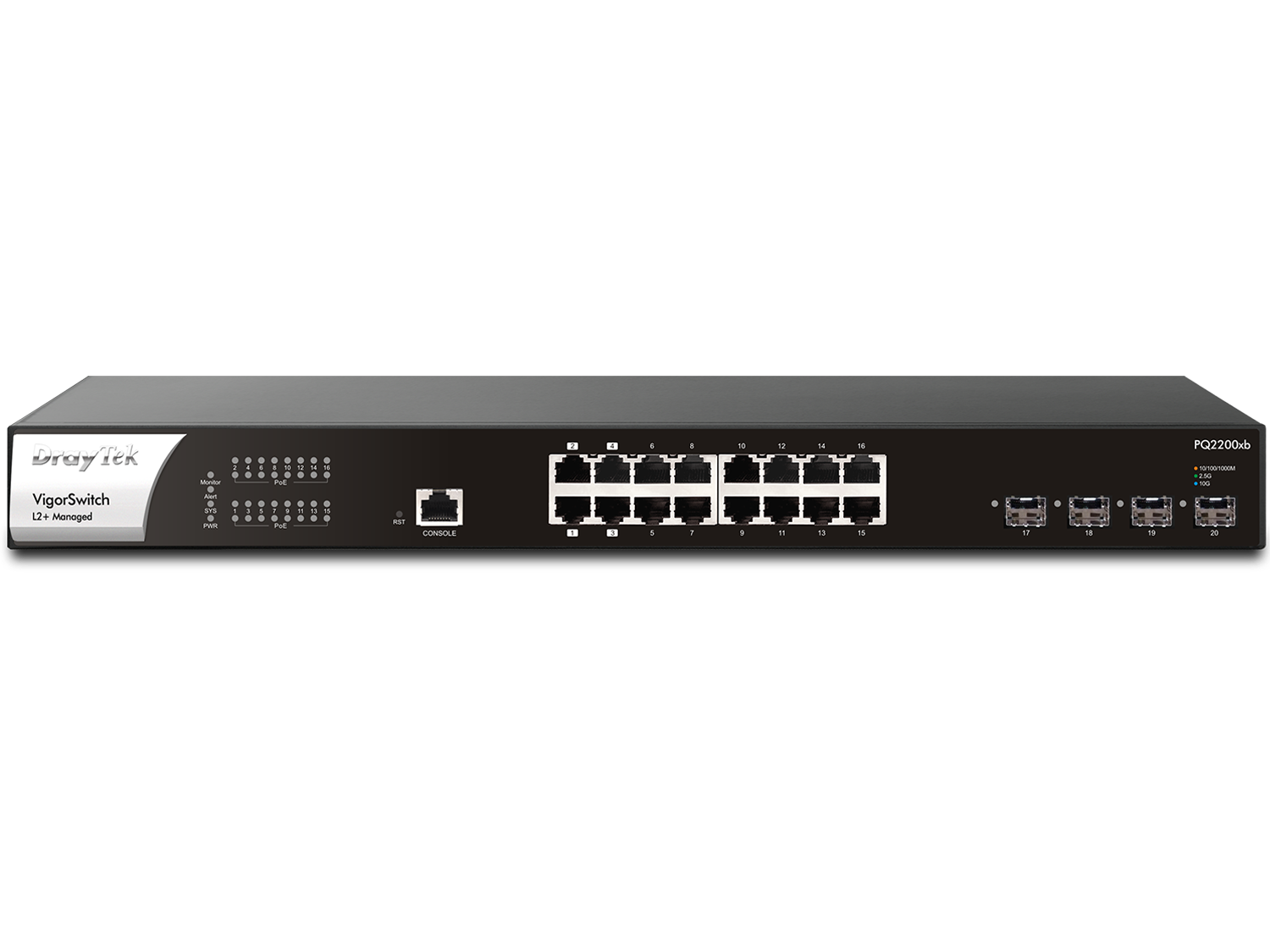

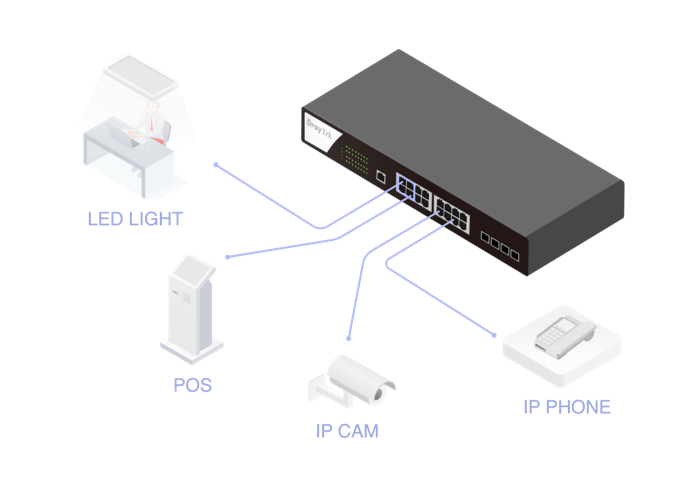

DrayTek VigorSwitch PQ2200xb features 2.5GbE ports for LAN and 10G SFP+ for uplink/downlink. Together with WiFi6 VigorAPs (e.g., VigorAP 1060C), VigorSwitch PQ2200xb brings the full WiFi 6 performance to LAN clients. VigorSwitch PQ2200xb has 4 PoE++ ports providing up to 90W per port and 12 PoE+ ports. With total 400W output, it is ideal for more IoT applications integration, including LED lighting, POS (point of sale) computer, motion sensors, IP Cam,…etc. Supporting advanced Layer 3 features, DHCP Server, and VLAN Routing, VigorSwitch PQ2200xb improves network efficiency and helps your LAN network to work continuously even when the gateway is offline, which is ideal to be placed as the core switch in SME/SMB. | |

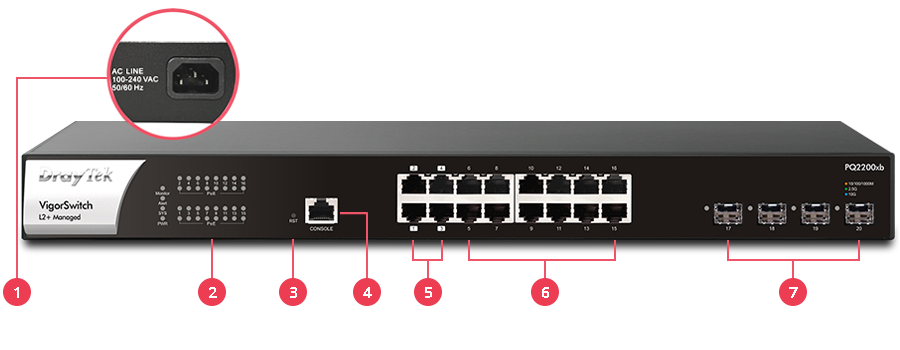

1. Power Socket 2. LED Indicator 3. Reset Button | 4. Console Port 5. 4x PoE++ 2.5GbE 6. 12x PoE+ 2.5GbE | 7. 4x SFP+ Ports |
Key Features
| PoE++ (802.3bt)Deliver up to 90W over one Ethernet cable. Turn on/off the PoE device periodically with PoE Schedule. | | QoS (Quality of Service)Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag. |
| Ping Device CheckEnable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert. | | ONVIF-FriendlyRecognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. |
| 2.5GbEProvides higher performance to WiFi 6 AP and other Ethernet devices. | | IPv6 ReadyVigorSwitch PQ2200xb supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver. |
| 10G SFP+Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches. | | Web-Based GUIEasily manage and monitor the network through the web-based console with graphics showing ports and hardware status. |

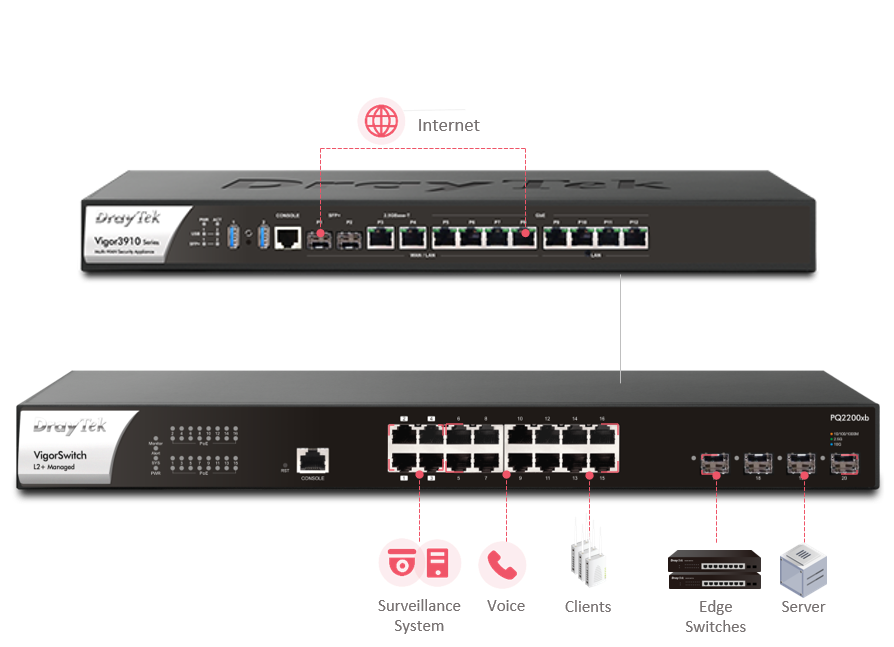

| Wire-Speed VLAN RoutingImprove overall network performance by using VigorSwitch PQ2200xb to route the inter-VLAN traffic directly and offload the router. | | Multiple Admin AccountsMultiple Admin accounts with two levels of administrator privilege. |
| Auto Surveillance & Voice VLANRecognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization. | | Central Switch ManagementSet up VLAN easily from the router and get a centralized hierarchy view of the switches. |
| IP Conflict PreventionImprove network stability by avoiding IP conflicts caused by a misconfigured or malicious host. |
| |

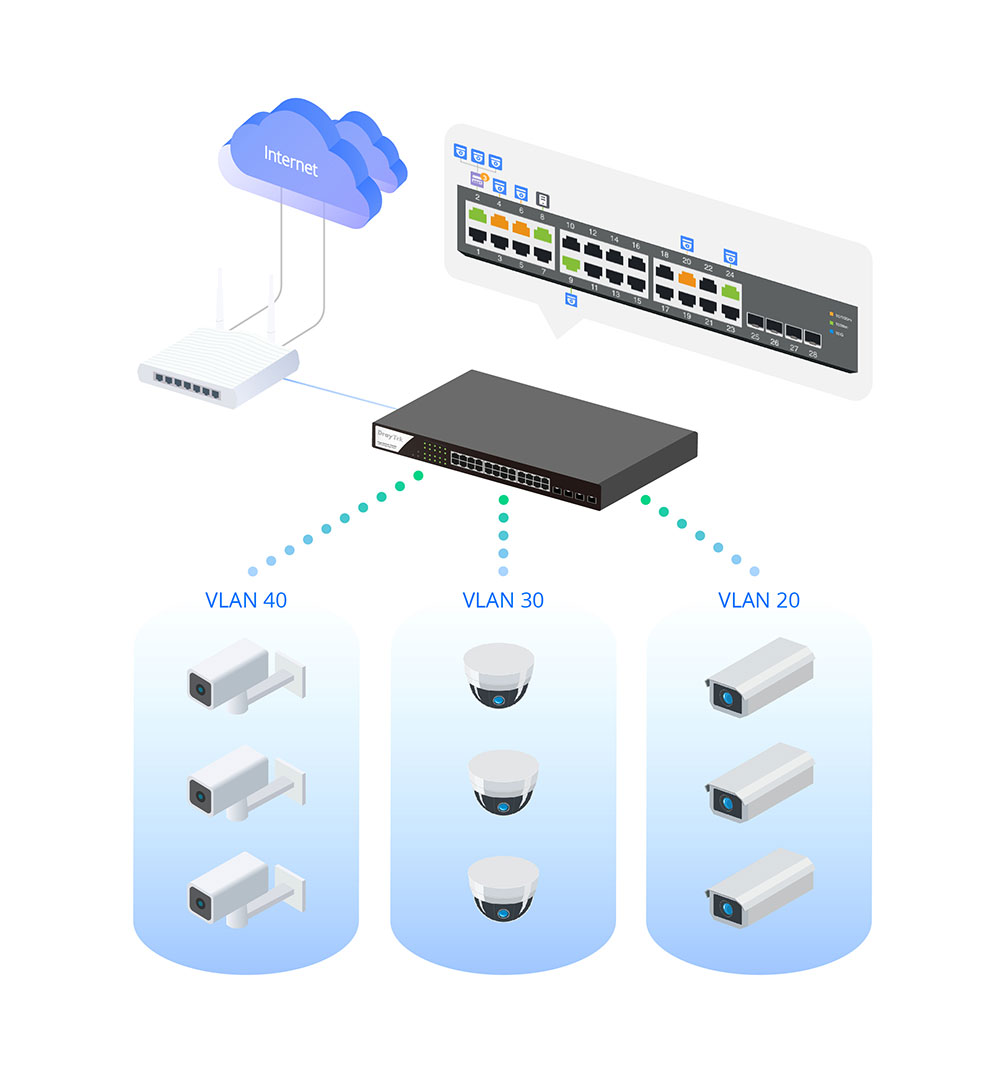

ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
|

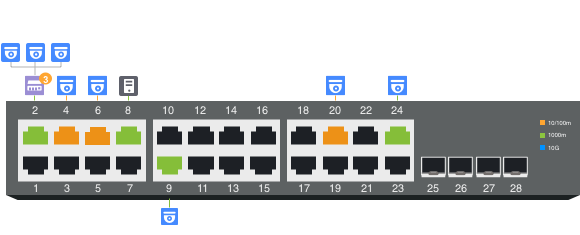

Centralized Hierarchical ViewVigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs. Images ViewingImages filmed by IP cameras can be viewed directly on VigorSwitch. Device ManagementSupport ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc. |

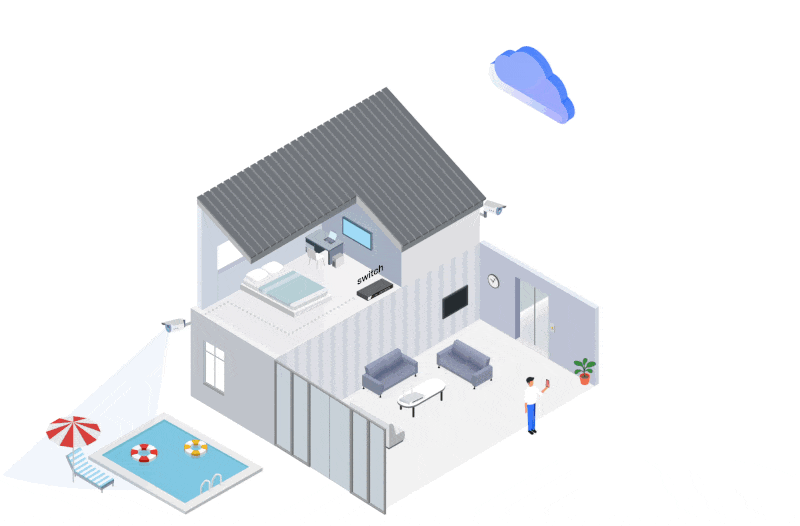

ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy
| It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning. To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding. With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera. |

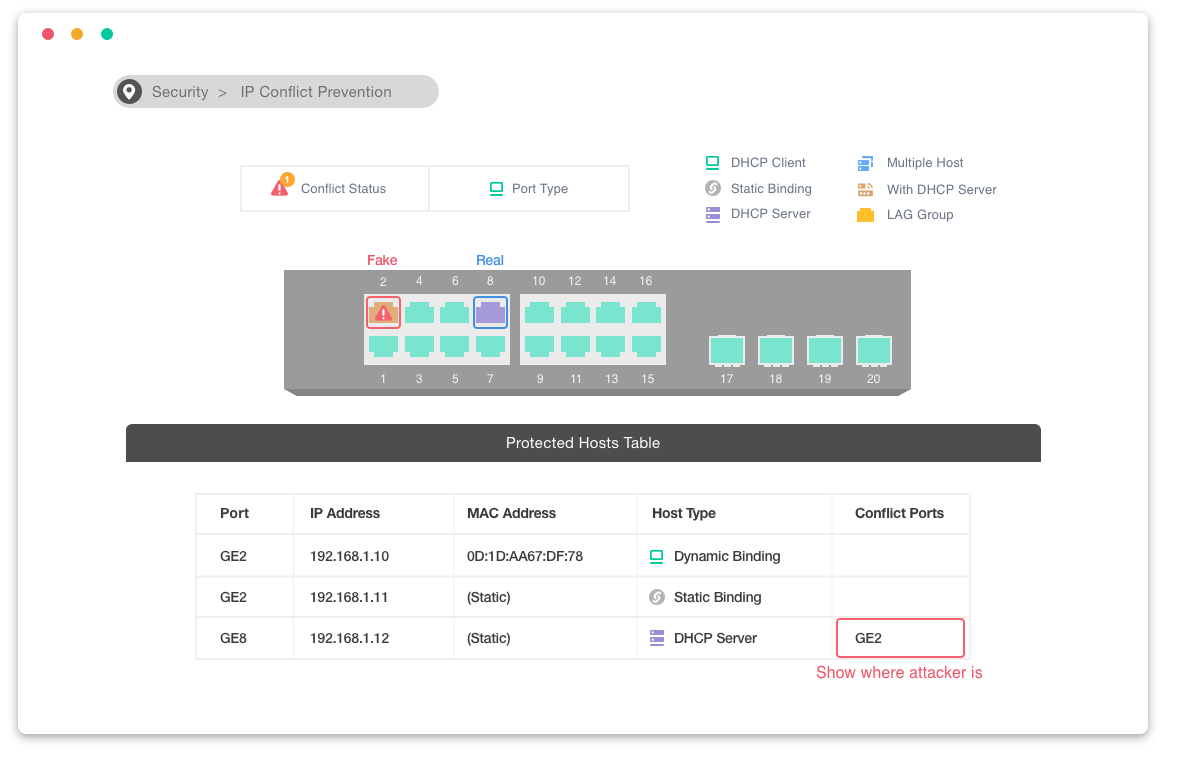

IP Conflict Detection & Prevention
Conflict DetectionKeep an eye on the environment and notify the administrator of any IP conflicts. Conflict PreventionFor a more stable network, VigorSwitch can't only detect but block the misconfigured or malicious IP host.
| |

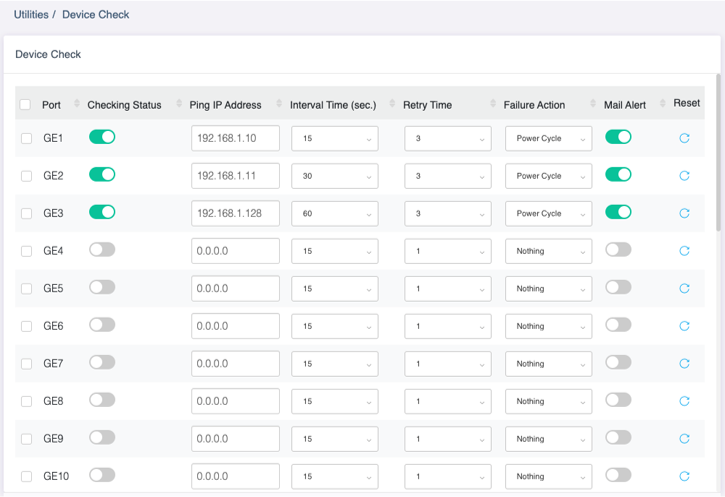

Device Check
| Ping Check for LAN DevicesVigorSwitch keeps pinging on the LAN devices. Once the device stops responding to the ping, PoE cycle a port (PoE model only) or send email alert. |
LAN Management
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.
Automatic Device DiscoveryAll you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed. ProvisioningSwitch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely. MonitoringVigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there's log and alert happens. System MaintenanceYou may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There's no need to log in to each device's management page. | |
Management Solution
All-in-One Management | Software Management |
| | |
- Auto-Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Reboot PoE Devices Remotely
- Quick VLAN Configuration
| - Discovery
- Automatic Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot PoE Devices Remotely
- Scheduled Maintenance
| - Zero Touch Deployment & Provisioning
- Auto-VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- Application-Based SD-WAN Policy
- Customized Hotspot Page with Multilingual
- Hotspot Clients Analytics
- ACS Server Load Balancing / Failover
|
