VigorSwitch P2280x

www.alvasta-tech.com / Enterprises / DrayTeK / Switches / All Switches / VigorSwitch P2280x /

VigorSwitch P2280x

Enhancing Network Performance

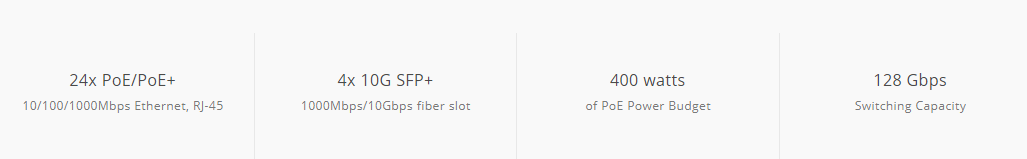

DrayTek VigorSwitch P2280x is a Layer 2+ Managed Gigabit PoE switch ideal for a network with growing network traffic. The switch has 24x Gigabit Ethernet PoE/PoE+ ports with a power budget of 400 watts and 4 additional dedicated SFP+ for 10G Fiber link.

Business can get enhanced network performance through the integrated L2 and L2+ features, it provides various types of VLAN for you to segment the local network and keep the traffic only at where it needs to go. Moreover, it supports VLAN routing to route the inter-VLAN traffic directly, shares loads of the router, and improve overall network performance.

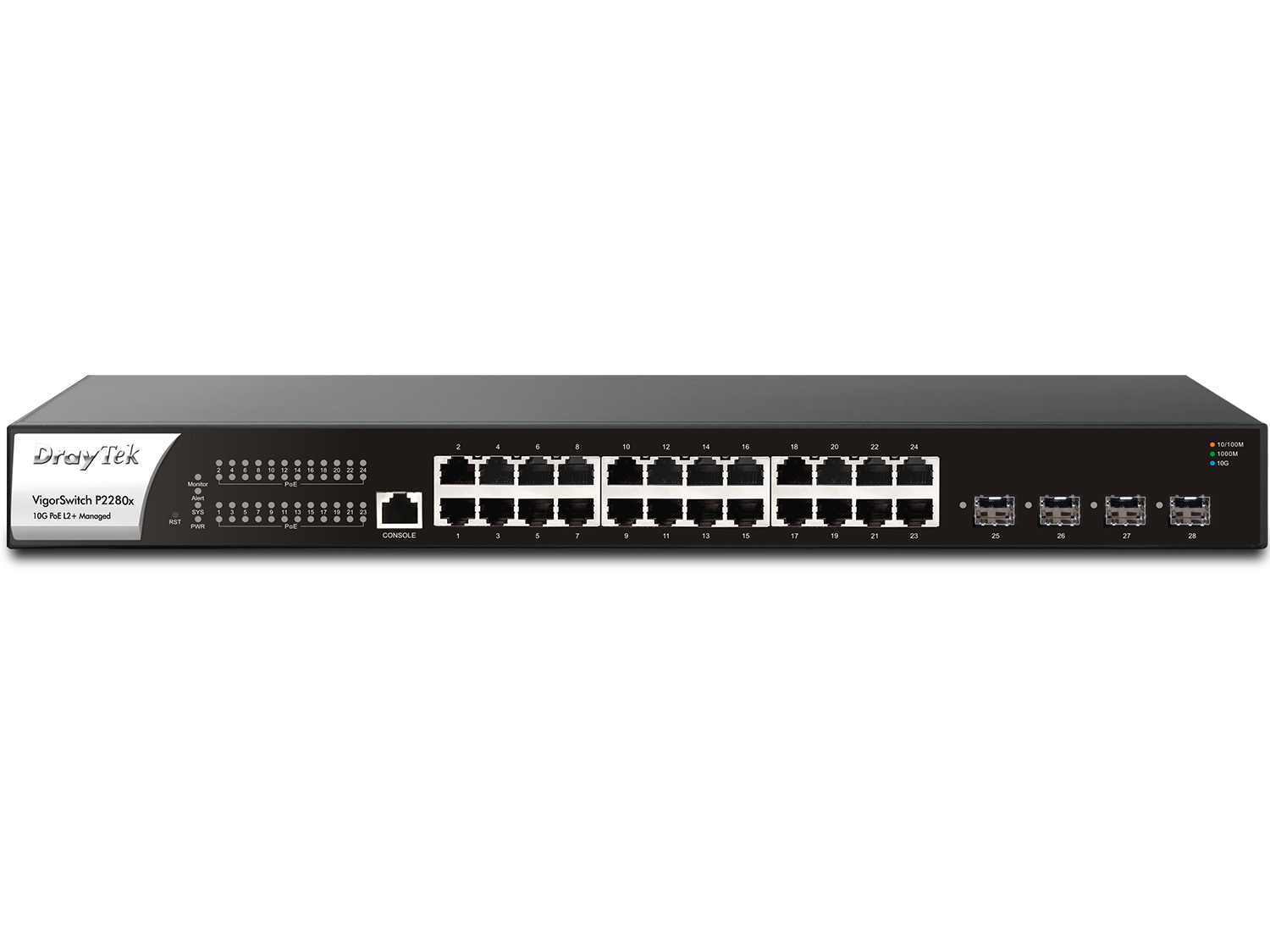

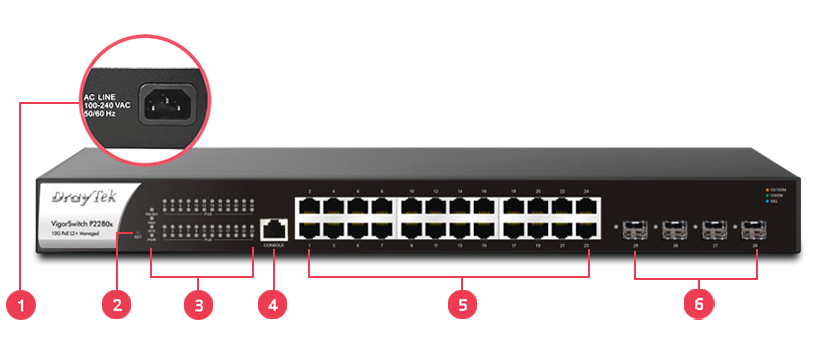

1. Power Socket

2. Reset Button

3. LED Indicator

4. Console Port

5. 24x PoE/PoE+ Gigabit Ethernet

6. 4x SFP+ Port

Key Features

	PoE (Power over Ethernet) Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.		10G SFP+ Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
	Ping Device Check Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.		ONVIF-Friendly Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.
	Wire-Speed VLAN Routing Improve overall network performance by using VigorSwitch P2280x to route the inter-VLAN traffic directly and offload the router.		IPv6 Ready VigorSwitch P2280x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

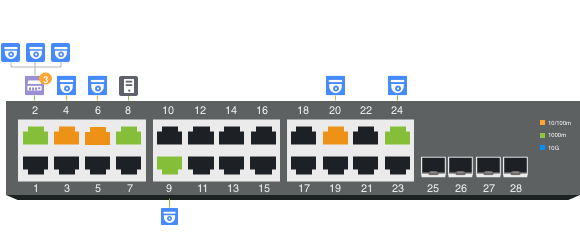

	Auto Surveillance & Voice VLAN Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.		Web-Based GUI Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.
	IP Conflict Prevention Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.		Multiple Admin Accounts Multiple Admin accounts with two levels of administrator privilege.
	QoS (Quality of Service) Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.		Central Switch Management Set up VLAN easily from the router and get a centralized hierarchy view of the switches.

Advanced Layer 2+ Features

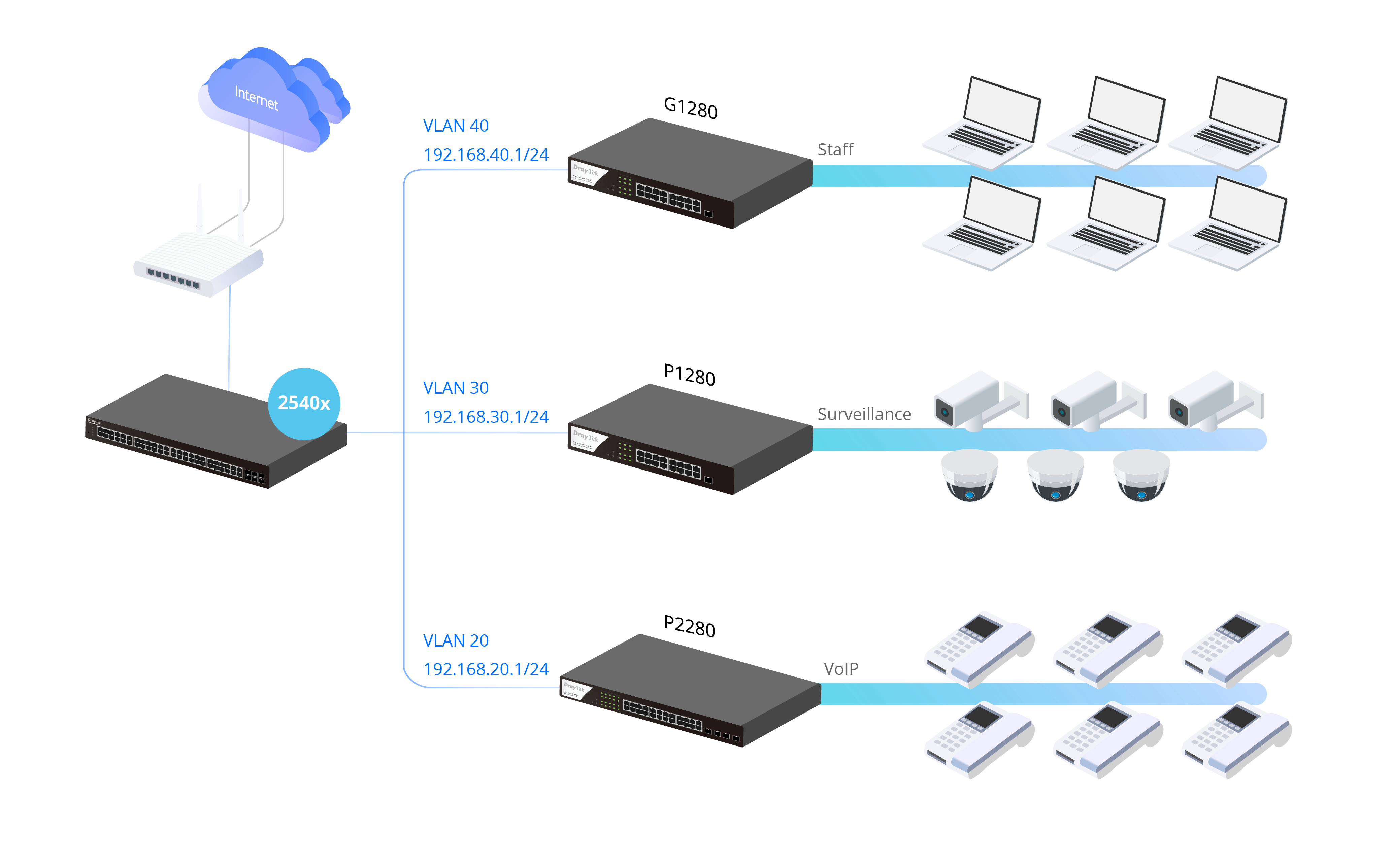

DHCP Server & VLAN Routing

Improving LAN Network Sustainability and Efficiency,
with or without a Router

In a large LAN network, much traffic doesn’t go to Internet, but to the servers in LAN. For example, IP cameras store videos to NVR, IP phones register to PBX, clients access to file server, etc.

L2+ switch with DHCP server and VLAN routing functionalities, as the device receiving traffic before the router, is ideal to share the loading of your router and to help your LAN network to work continuously even when the router is offline.

As a DHCP server, VigorSwitch assigns dynamic IP addresses for up to 8 VLANs. With VLAN routing, VigorSwitch supports up to 512 routes.

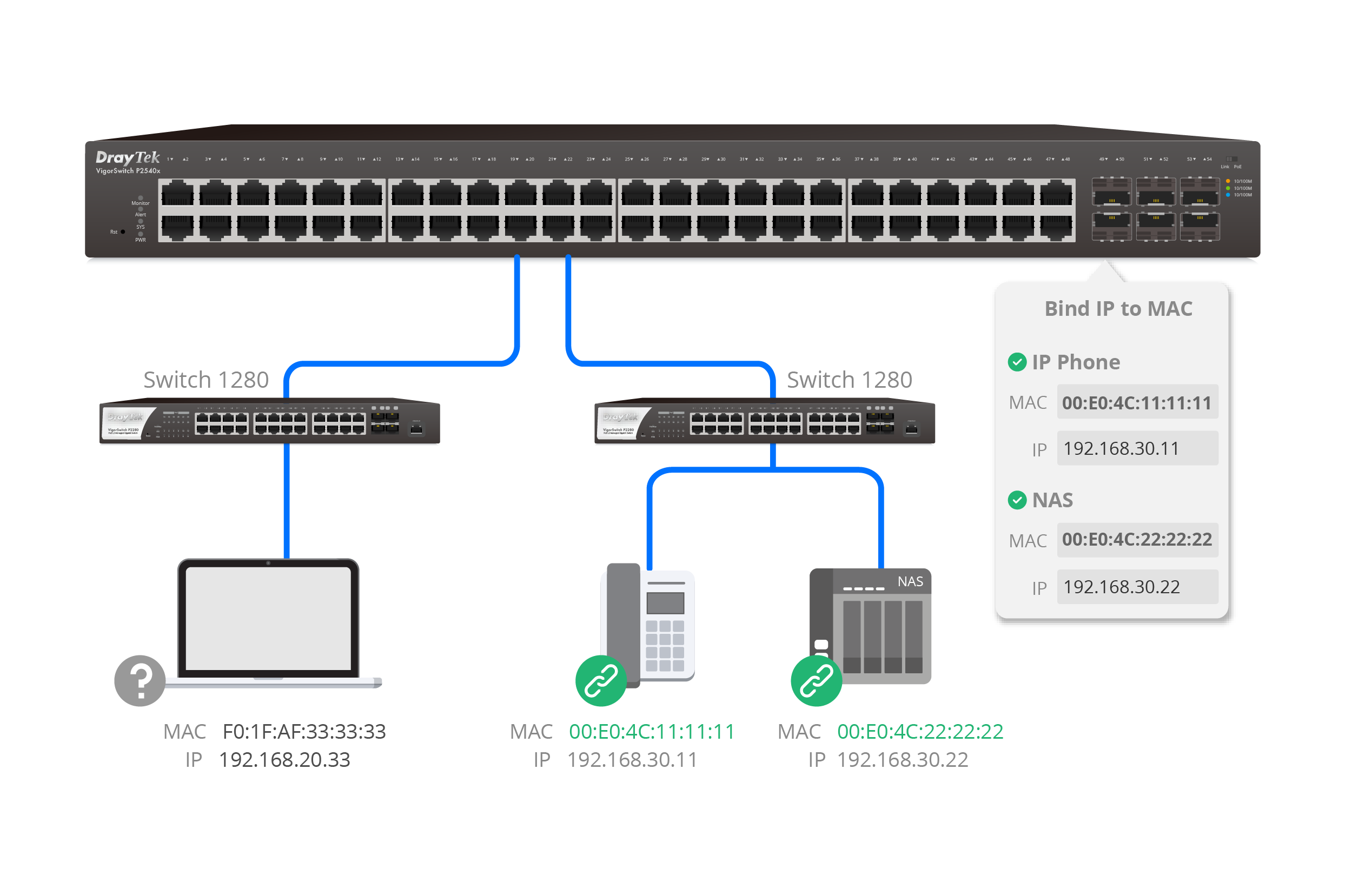

Bind IP to MAC

Reserve an IP Address for an Important Device

As a DHCP Server, layer 2+ VigorSwitch helps reserving IP addresses for your important devices that most users will access frequently.

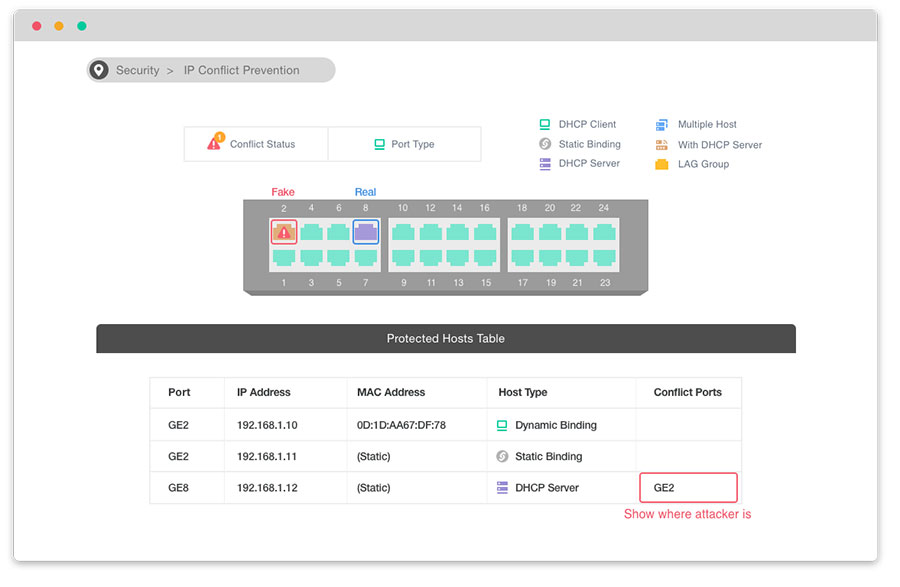

IP Conflict Detection & Prevention

Conflict Detection

VigorSwitch keeps an eye on the environment and notify the administrator of any IP conflicts.

Conflict Prevention

For a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host.

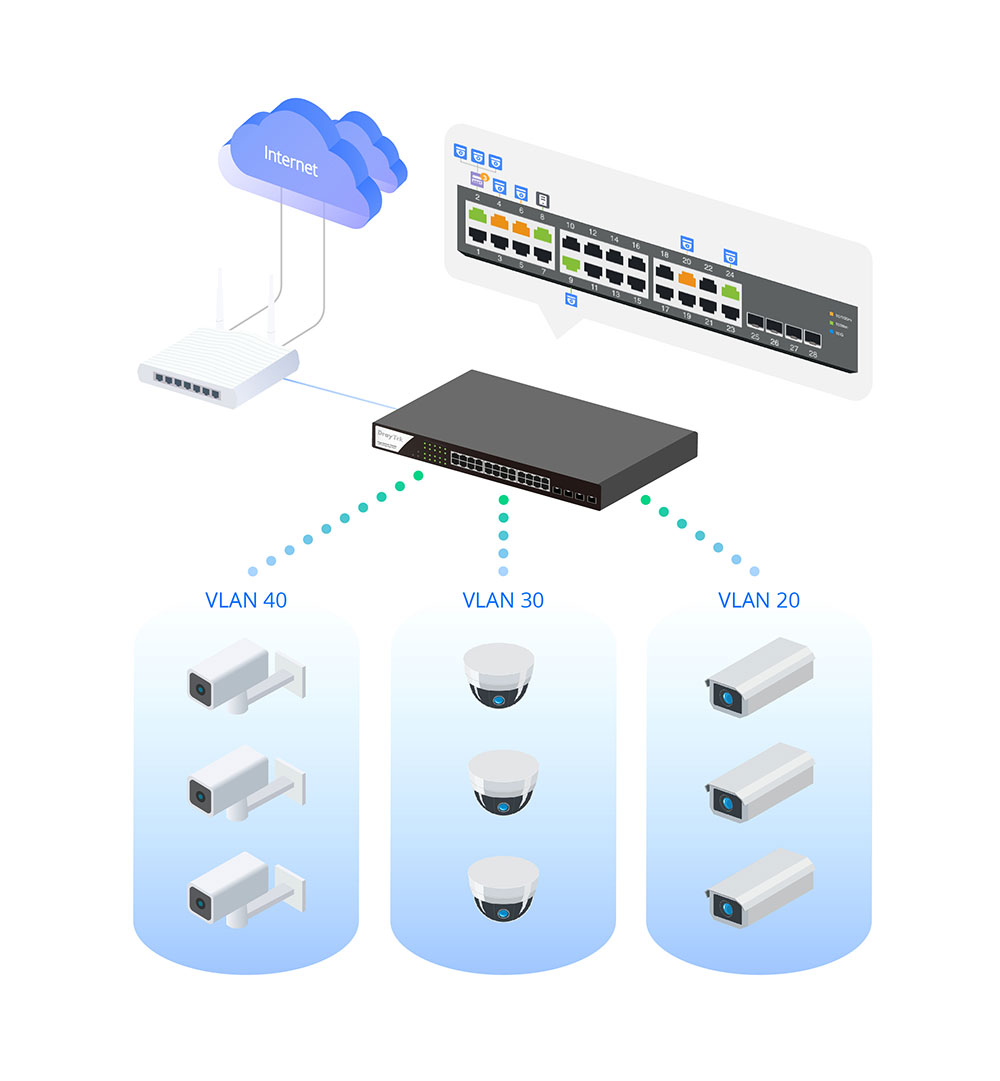

ONVIF-Friendly

Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.

Centralized Hierarchical View

VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.

Images Viewing

Images filmed by IP cameras can be viewed directly on VigorSwitch.

Device Management

Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.

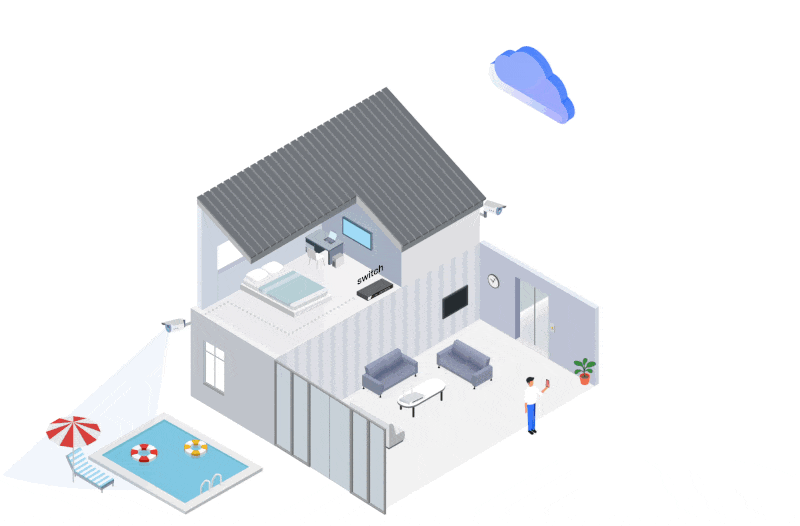

ONVIF Snapshot Alert

Locating Not-Responding Cameras Made Easy

It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.

To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.

With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.
