VigorSwitch P2100

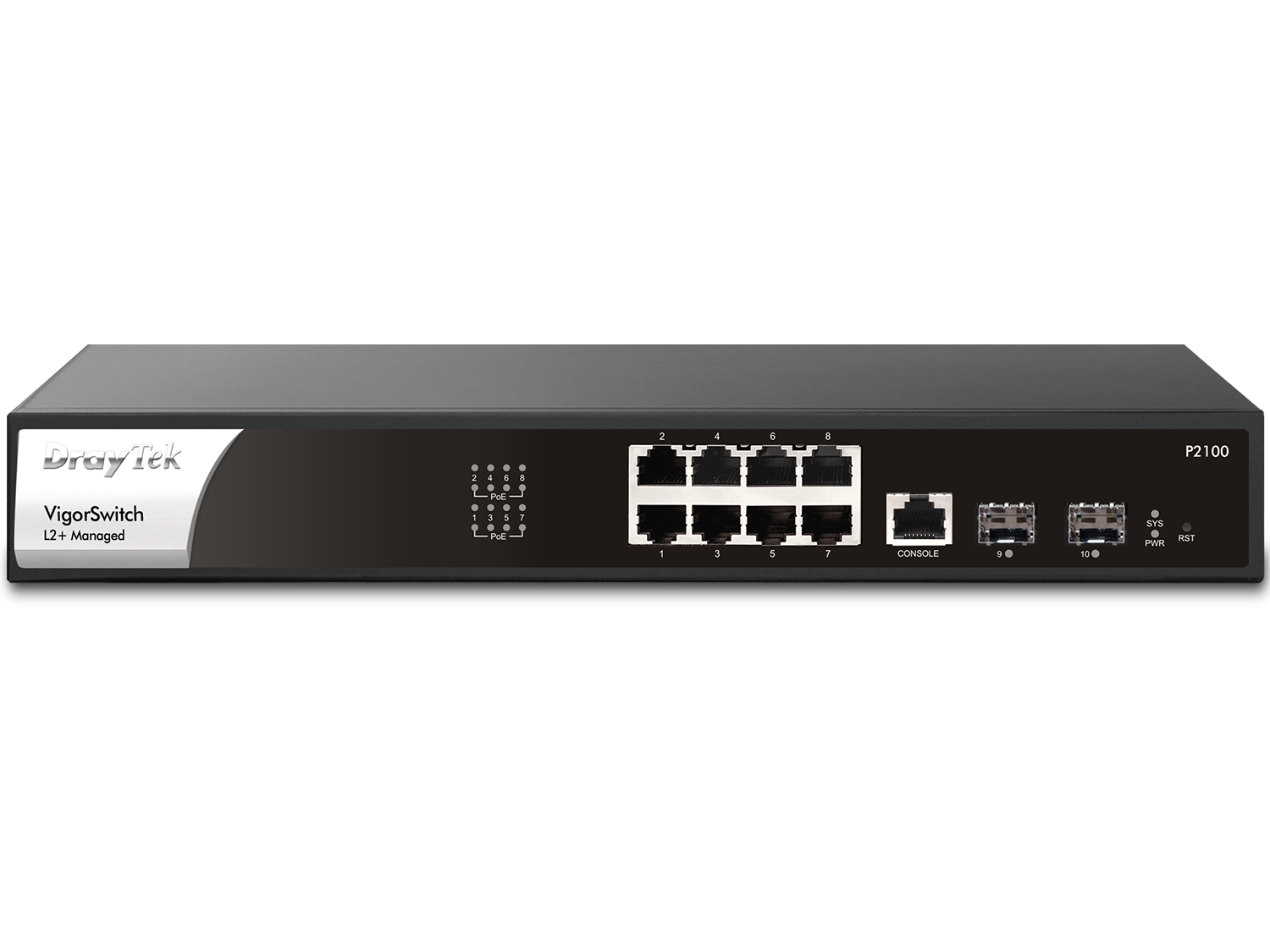

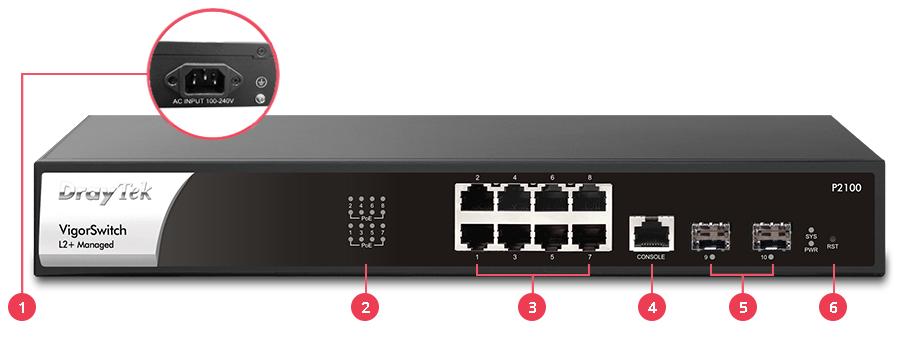

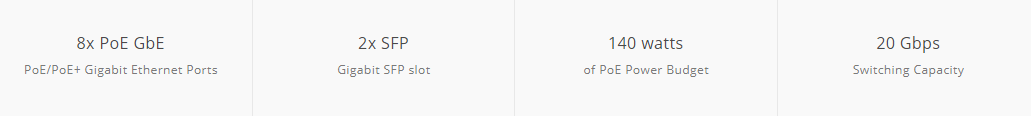

DrayTek VigorSwitch P2100 is a compact Layer 2+ Managed Gigabit PoE switch well-suited for smart home and branch/remote sites. It has 2x GbE SFP ports, 8x Gigabit Ethernet PoE/PoE+ ports with power budget of 140 watts, and 1x console port. Featuring Layer 3 features, including DHCP Server and VLAN Routing, VigorSwitch P2100 improves local network sustainability and efficiency regardless of the gateway. Furthermore with IP Conflict Detection & Prevention, ONVIF Surveillance, ping watchdog and a lot more, this is the balanced switch that brings advanced features into small environments.

Key Features

	PoE (Power over Ethernet) Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.		QoS (Quality of Service) Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
	Ping Device Check Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.		IPv6 Ready VigorSwitch P2100 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
	Auto Surveillance & Voice VLAN Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.		Web-Based GUI Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.
	ONVIF-Friendly Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.		Multiple Admin Accounts Multiple Admin accounts with two levels of administrator privilege.
	Wire-Speed VLAN Routing Improve overall network performance by using VigorSwitch P2100 to route the inter-VLAN traffic directly and offload the router.		Central Switch Management Set up VLAN easily from the router and get a centralized hierarchy view of the switches.
	IP Conflict Prevention Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.		Energy-Efficient Ethernet Compliant with IEEE 802.3az to reduce power consumption.
	Access Control VigorSwitch P2100 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.

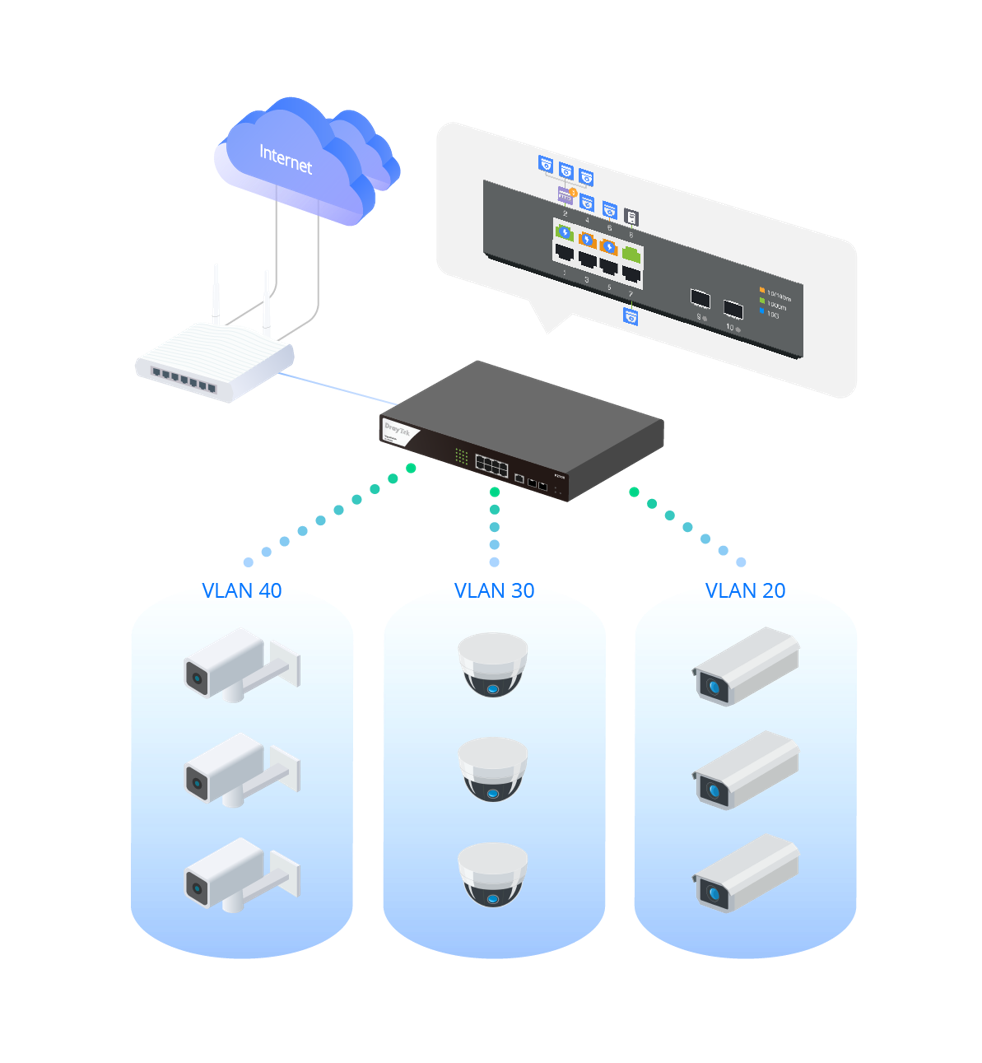

ONVIF-Friendly

Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.

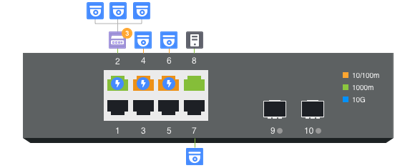

Centralized Hierarchical View

VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.

Images Viewing

Images filmed by IP cameras can be viewed directly on VigorSwitch.

Device Management

Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.

ONVIF Snapshot Alert

Locating Not-Responding Cameras Made Easy

It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.

To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.

With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.

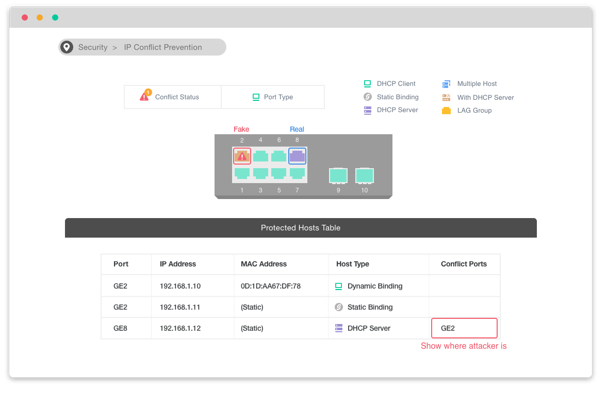

IP Conflict Detection & Prevention

Conflict Detection

Keep an eye on the environment and notify the administrator of any IP conflicts.

Conflict Prevention

For a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host.

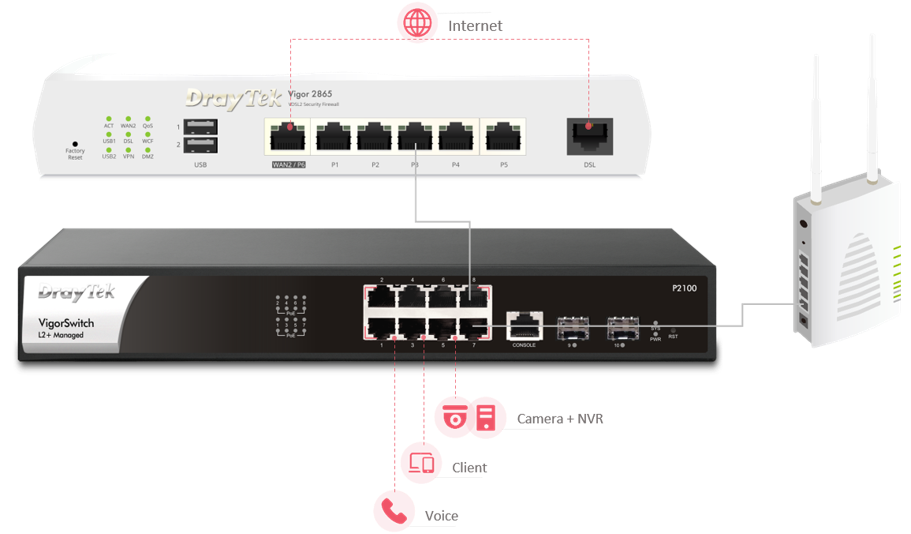

LAN Management

An all-in-one management platform for Vigor devices on the LAN side.

Automatic Device Discovery

All you need is connect the Vigor Switch/AP to the LAN side of the router, Vigor Router will then discover the devices to be managed

Provisioning

Switch profile, including VLAN, enabled/disabled port, and rate limit, may be set on the Vigor Router and provisioned to the VigorSwitch.

Monitoring

Vigor Router provides a centralized hierarchical view of managing devices. Once there’s alert happens, you may also check the log and receive the notification.

System Maintenance

You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the Vigor Router. There’s no need to log in to each device’s management page.
