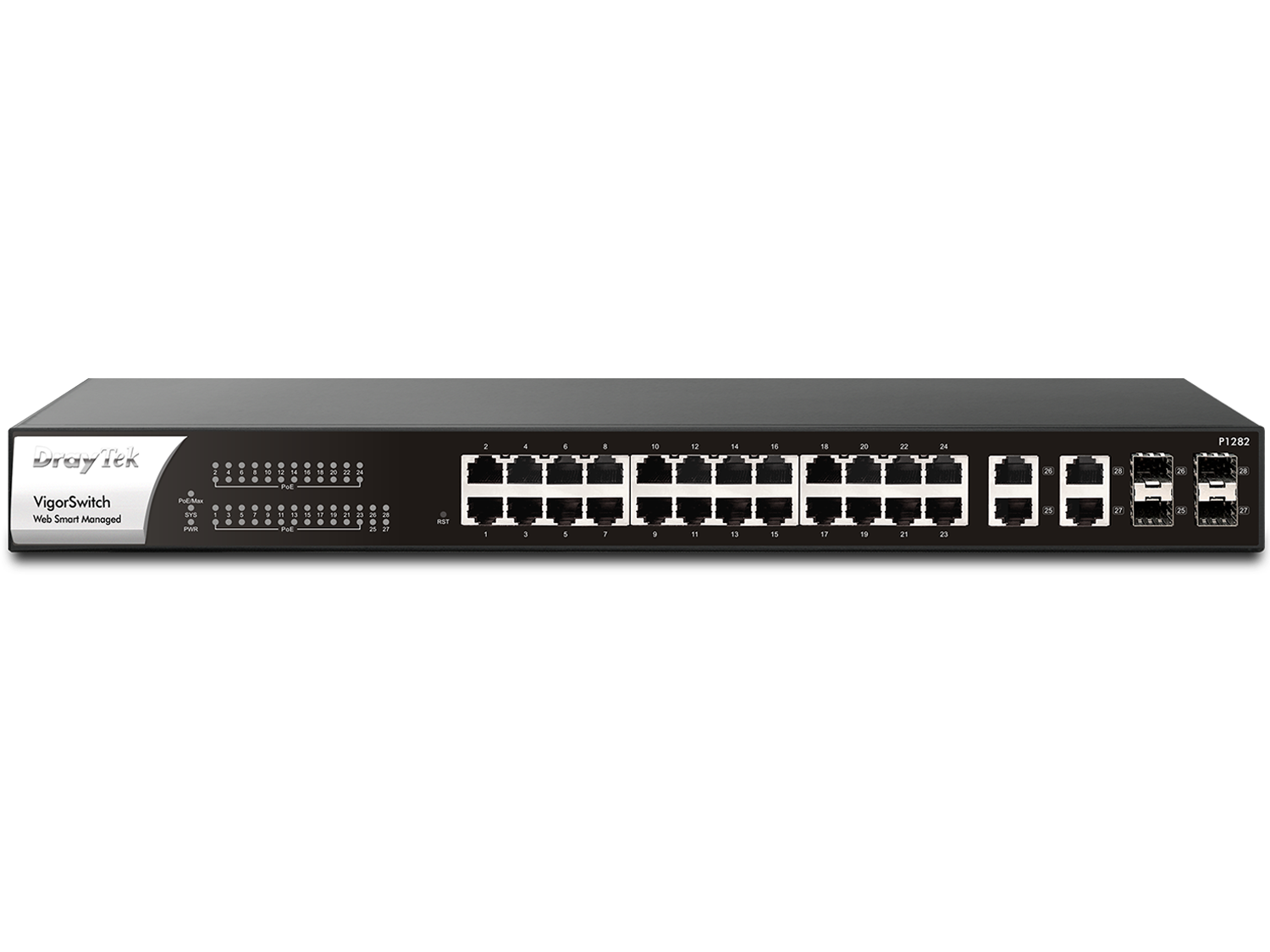

DrayTek VigorSwitch P1282 is a Web Smart Gigabit PoE switch. It has 24x GbE PoE/PoE+ ports with 400 watts of power budget and 4x GbE/SFP combo ports.
Equipped with enterprise-level features, including IP Conflict Detection & Prevention, ONVIF Surveillance, and ping watchdog, VigorSwitch P1282 is a managed switch that brings network security and stability into mid-sized environments.

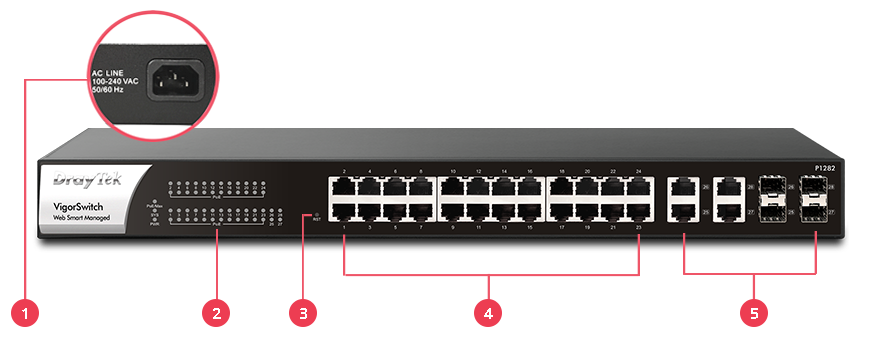

1. Power Socket 2. LED Indicator 3. Reset Button |
| 4. 24x PoE/PoE+ Gigabit Ethernet 5. 4x Gigabit Ethernet/SFP Combo |
Key Features
| PoE (Power over Ethernet)Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule. | | IP Conflict PreventionImprove network stability by avoiding IP conflicts caused by a misconfigured or malicious host. |
| Ping Device CheckEnable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert. | | Web-Based GUIEasily manage and monitor the network through the web-based console with graphics showing ports and hardware status. |

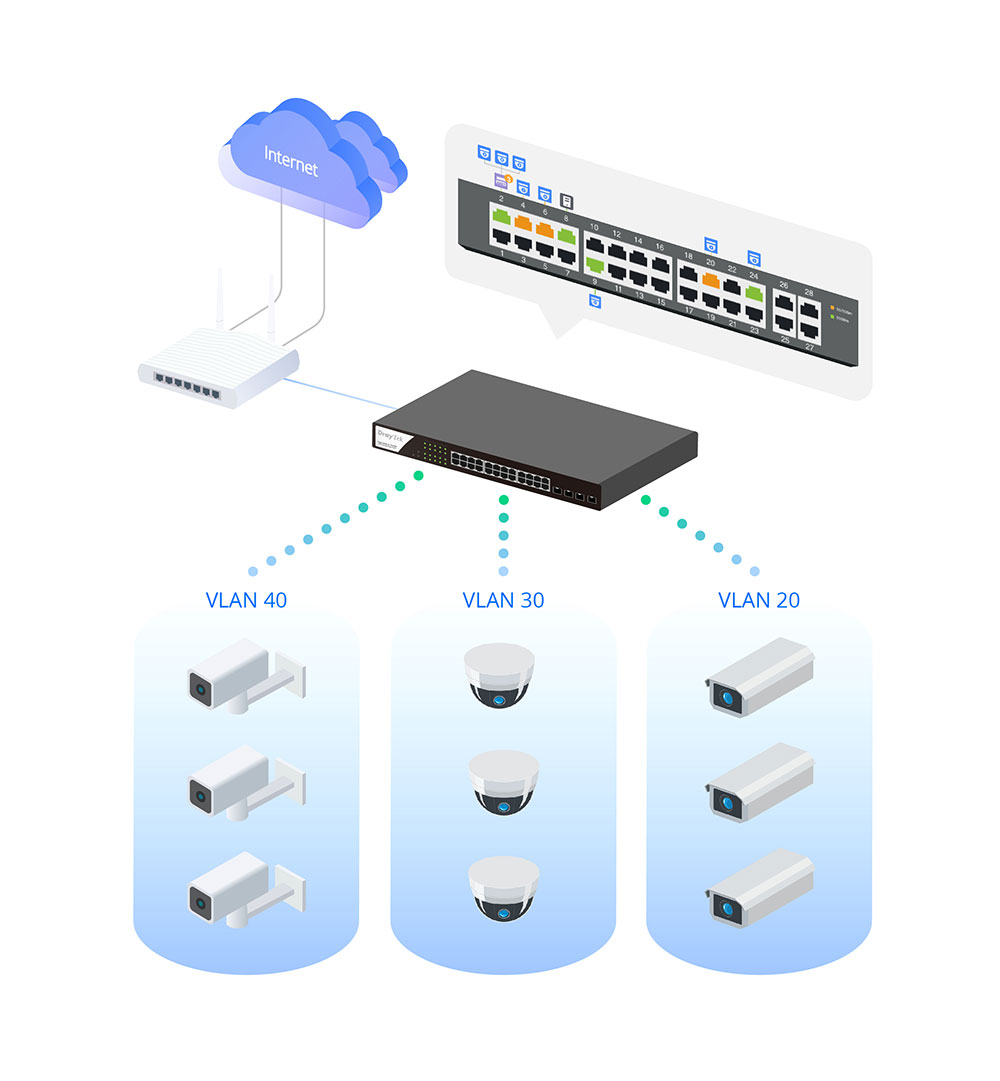

| Auto Surveillance & Voice VLANRecognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization. | | Multiple Admin AccountsMultiple Admin accounts with two levels of administrator privilege. |
| QoS (Quality of Service)Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag. | | Central Switch ManagementSet up VLAN easily from the router and get a centralized hierarchy view of the switches. |
| ONVIF-FriendlyRecognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. | | Energy-Efficient EthernetCompliant with IEEE 802.3az to reduce power consumption. |
ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
|

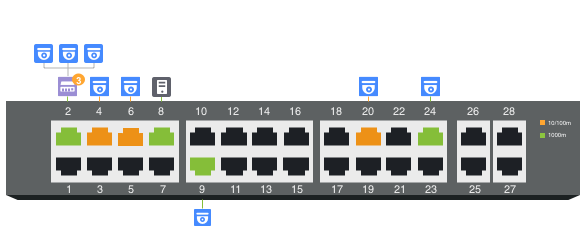

Centralized Hierarchical ViewVigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs. Images ViewingImages filmed by IP cameras can be viewed directly on VigorSwitch. Device ManagementSupport ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc. |
ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy
| It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning. To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding. With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera. |

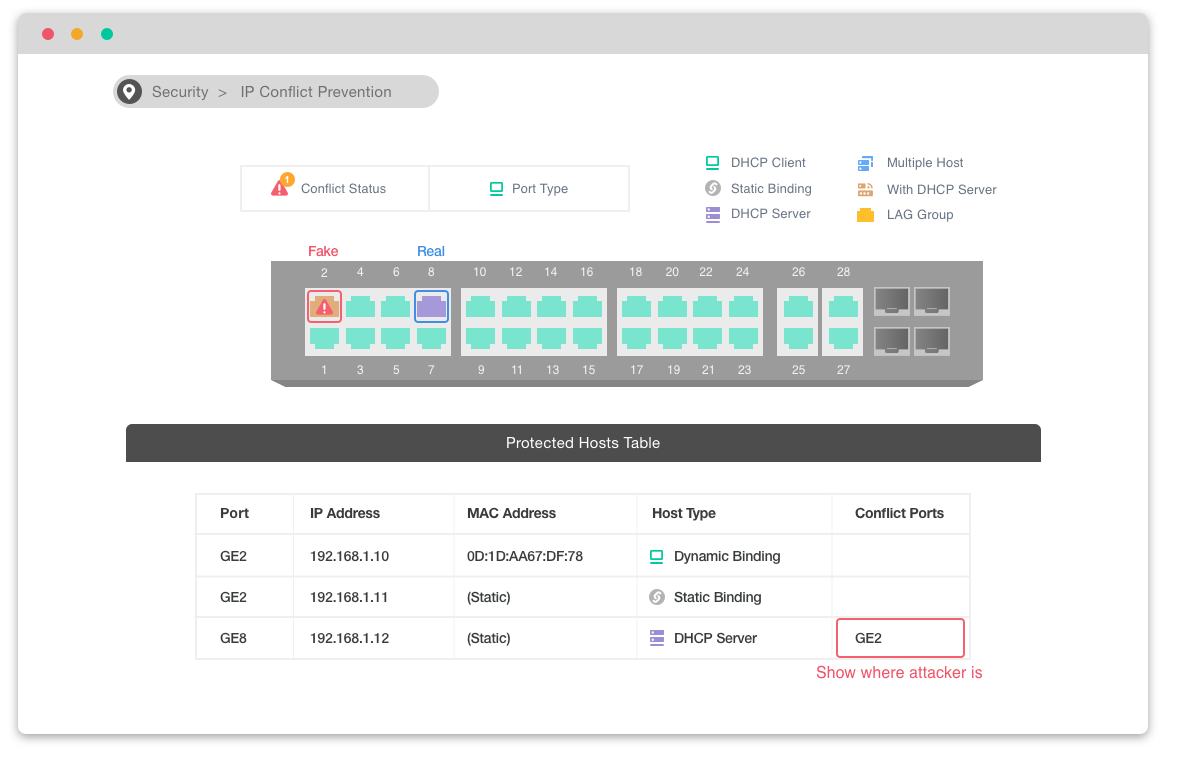

IP Conflict Detection & Prevention
| Conflict Detectionkeeps an eye on the environment and notify the administrator of any IP conflicts. Conflict PreventionFor a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host. |

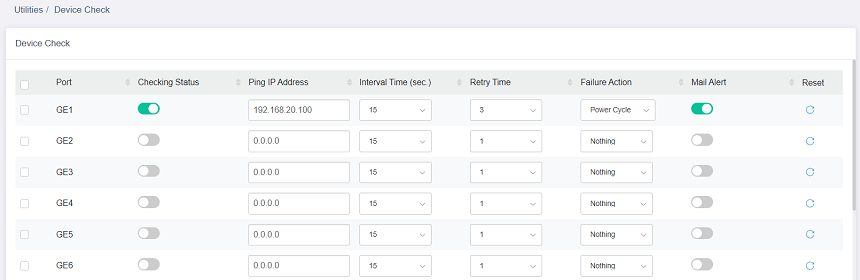

LAN Device Check
Ping Watchdog for LAN DevicesVigorSwitch keeps pinging on the LAN devices. Once the device stop responding to the ping, PoE cycle a port or send email alert. | |

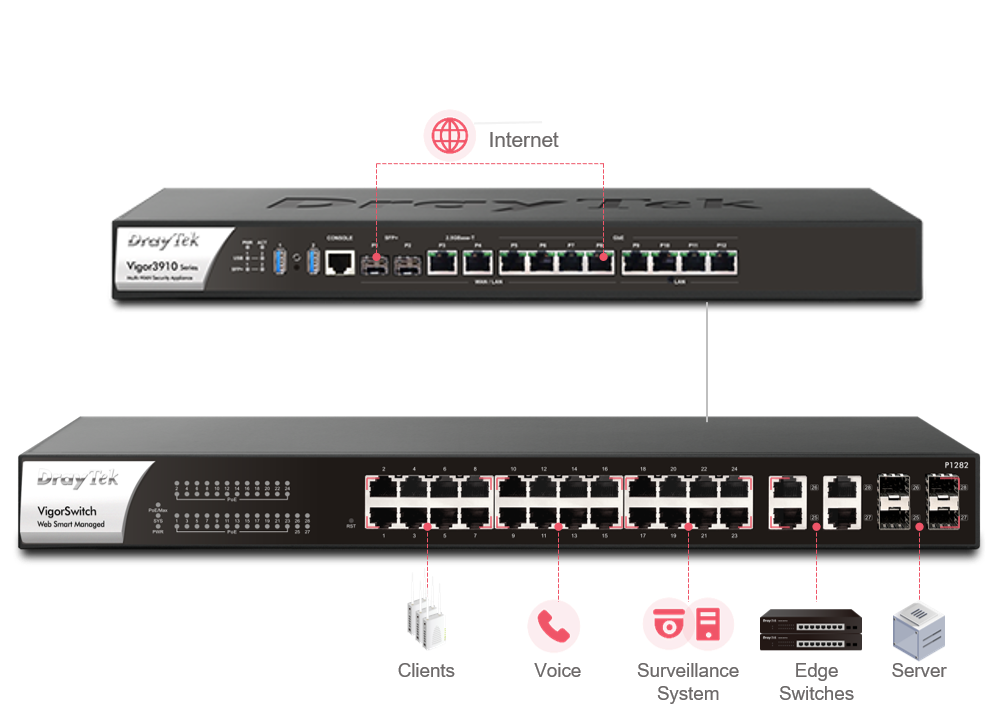

LAN Management
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.
Automatic Device DiscoveryAll you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed. ProvisioningSwitch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely. MonitoringVigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there's log and alert happens. System MaintenanceYou may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There's no need to log in to each device's management page. | |
Management Solution
All-in-One Management | Software Management |
| | |
- Auto-Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Reboot PoE Devices Remotely
- Quick VLAN Configuration
| - Auto-Discovery
- Auto-Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot PoE Devices Remotely
- Scheduled Maintenance
| - Zero Touch Deployment & Provisioning
- Auto VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- Application-Based SD-WAN Policy
- Customized Hotspot Page with Multilingual
- Hotspot Clients Analytics
- ACS Server Load Balancing / Failover
|
