VigorSwitch G2540xs

Providing excellent Network efficiency

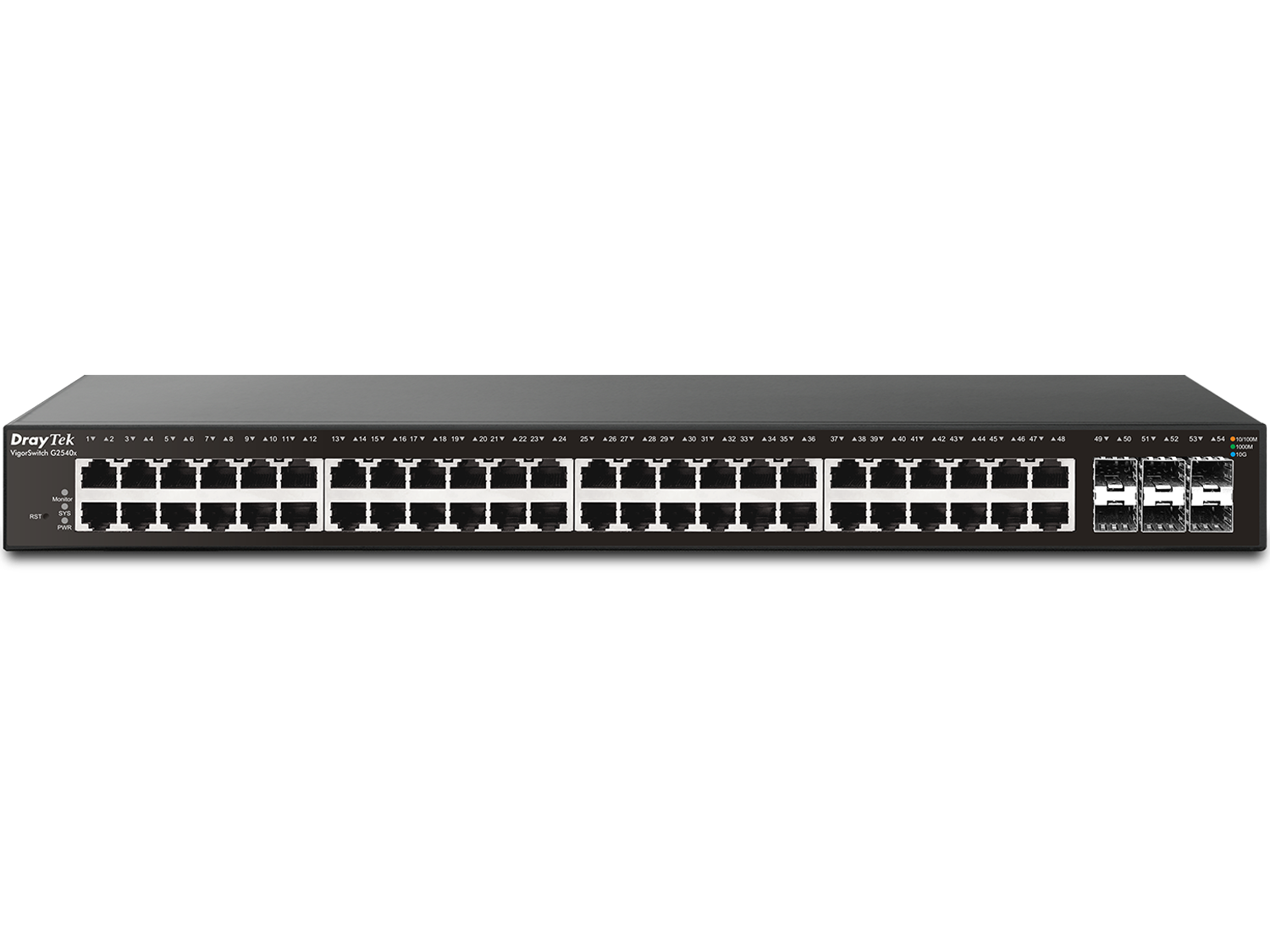

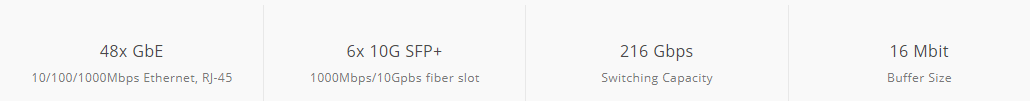

DrayTek VigorSwitch G2540xs is a Layer 2+ Managed 10 Gbps switch. It has 48x Gigabit Ethernet ports and 6 x SFP+ 10Gbps Fiber links. Supporting advanced Layer 3 features, DHCP Server and VLAN Routing, VigorSwitch G2540xs improves network efficiency and helps your LAN network to work continuously even when the gateway is offline, which is ideal to be placed as the core switch in SME/SMB.

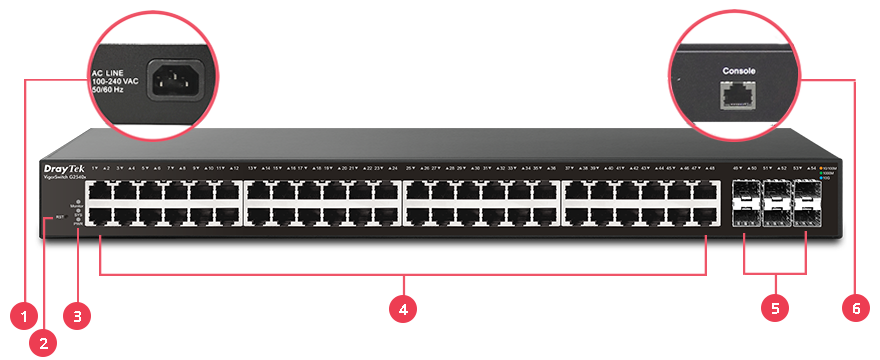

1. Power Socket

2. Reset Button

3. LED Indicator

4. 48x Gigabit Ethernet

5. 6x SFP+ Port

6. Console Port

Key Features

	Auto Surveillance & Voice VLAN Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.		10G SFP+ Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
	ONVIF-Friendly Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.		IPv6 Ready VigorSwitch G2540xs supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

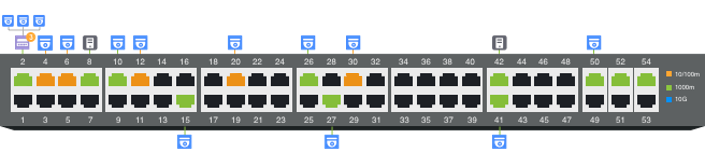

	Wire-Speed VLAN Routing Improve overall network performance by using VigorSwitch G2540xs to route the inter-VLAN traffic directly and offload the router.		Web-Based GUI Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.
	IP Conflict Prevention Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.		Multiple Admin Accounts Multiple Admin accounts with two levels of administrator privilege.
	Access Control VigorSwitch G2540xs supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.		Central Switch Management Set up VLAN easily from the router and get a centralized hierarchy view of the switches.
	QoS (Quality of Service) Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.		Energy-Efficient Ethernet Compliant with IEEE 802.3az to reduce power consumption.

Advanced Layer 2+ Features

DHCP Server & VLAN Routing

Reserve an IP Address for an Important Device

As a DHCP Server, layer 2+ VigorSwitch helps reserving IP addresses for your important devices that most users will access frequently.

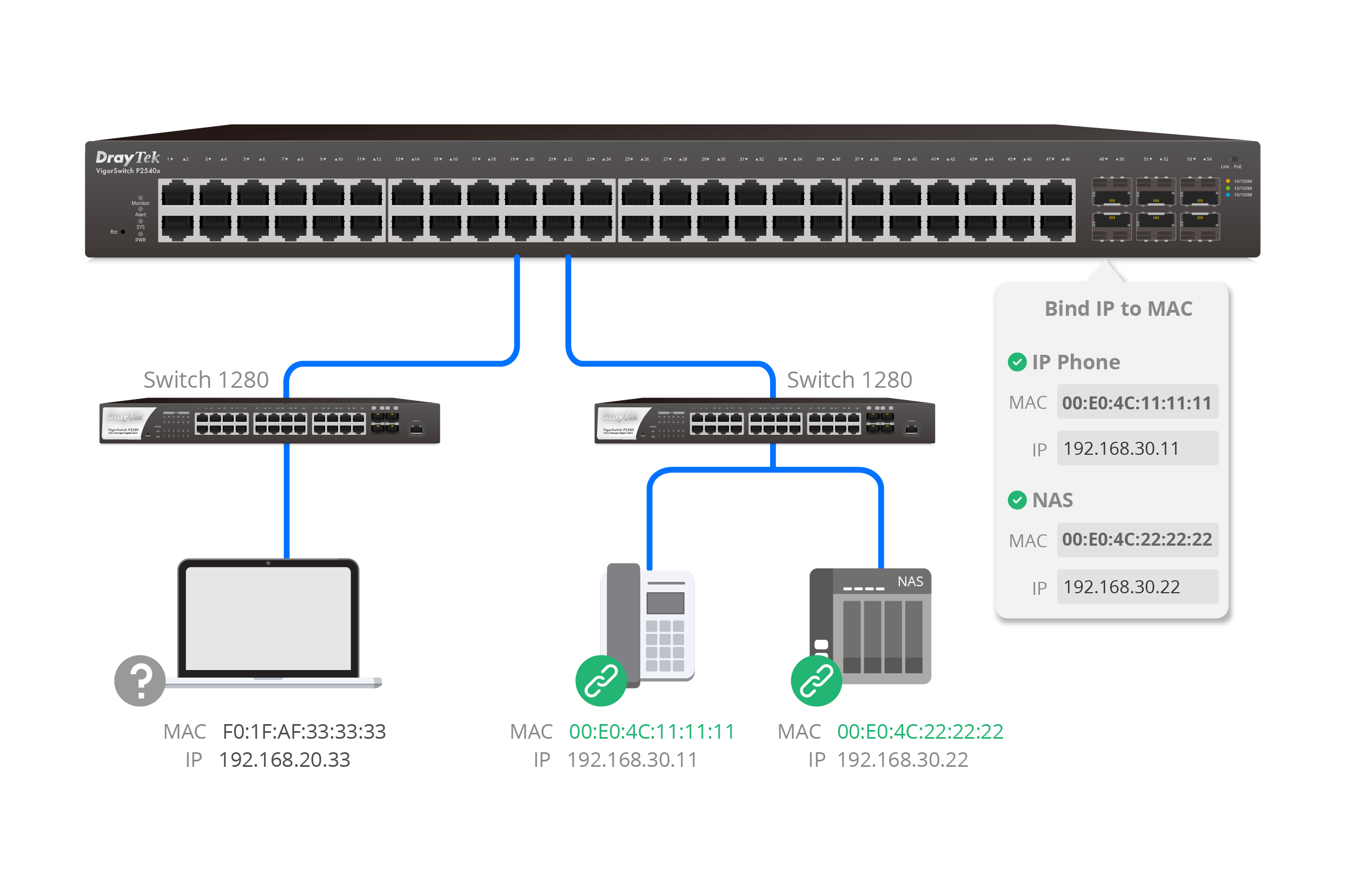

Bind IP to MAC

Reserve an IP Address for an Important Device

As a DHCP Server, layer 2+ VigorSwitch helps reserving IP addresses for your important devices that most users will access frequently.

ONVIF-Friendly

Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.

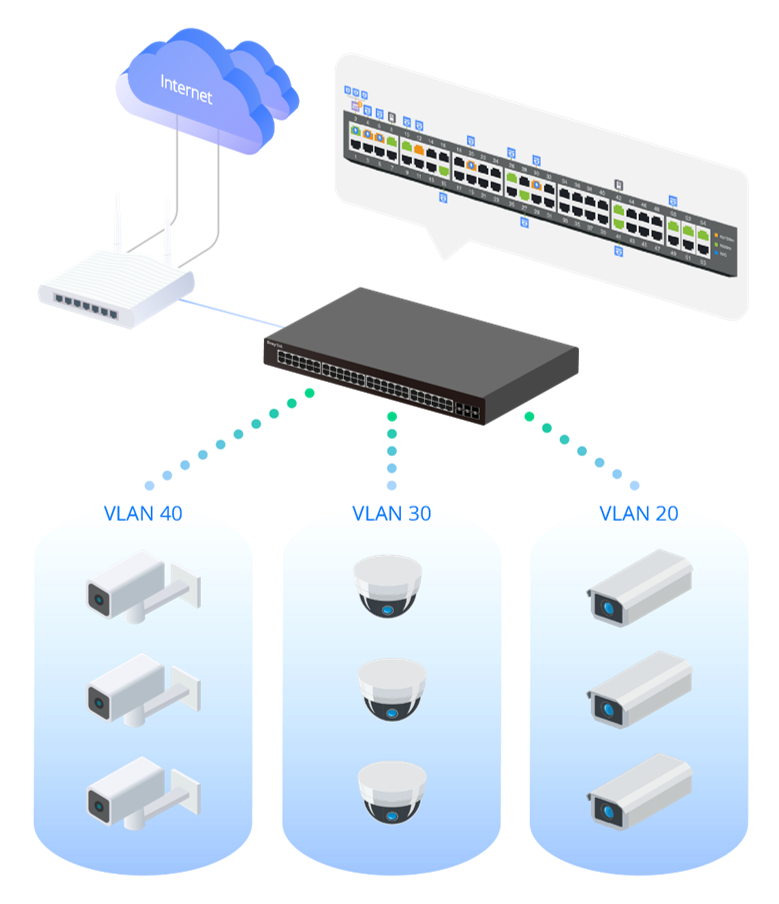

Centralized Hierarchical View

VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.

Images Viewing

Images filmed by IP cameras can be viewed directly on VigorSwitch.

Device Management

Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.

ONVIF Snapshot Alert

Locating Not-Responding Cameras Made Easy

It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.

To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.

With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.
