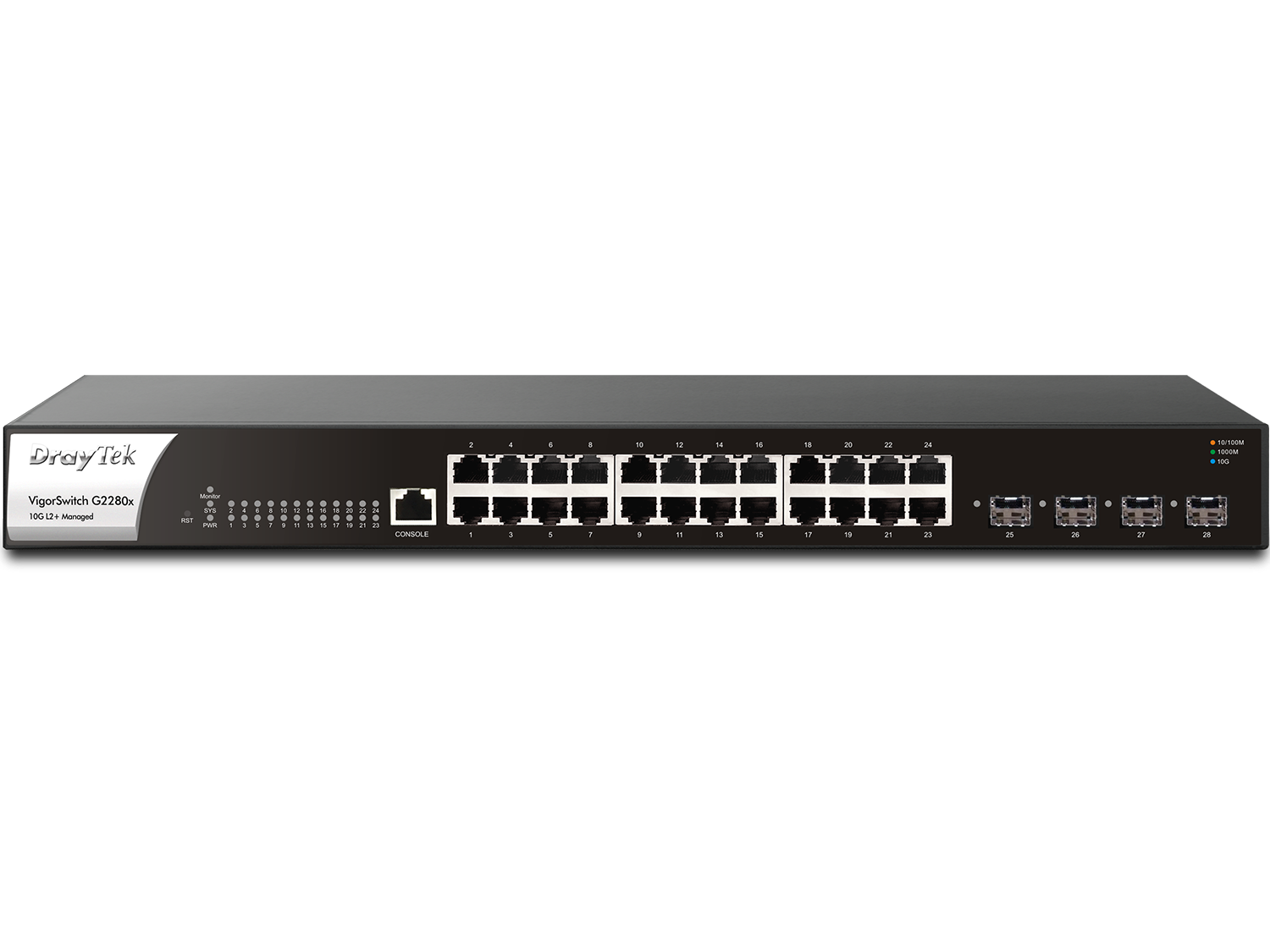

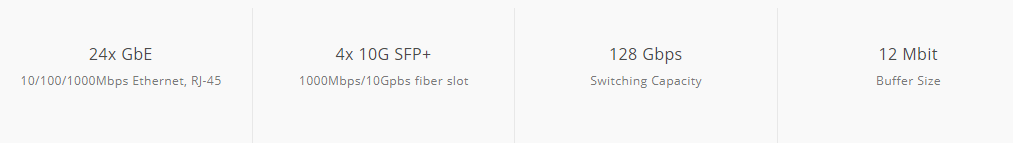

The Switch that Improves Network SpeedDrayTek VigorSwitch G2280x is a Layer 2+ Managed Gigabit switch ideal for a network with growing network traffic. The switch has 24x Gigabit Ethernet LAN ports and 4x 1/10Gbps SFP slots. Link Aggregation is supported to trunk up to 8x ports and increase bandwidth as needed. The switch provides various types of VLAN for you to segment the local network and keep the traffic only at where it needs to go. Moreover, it supports VLAN routing to route the inter-VLAN traffic directly, shares loads of the router, and improve overall network performance. | |

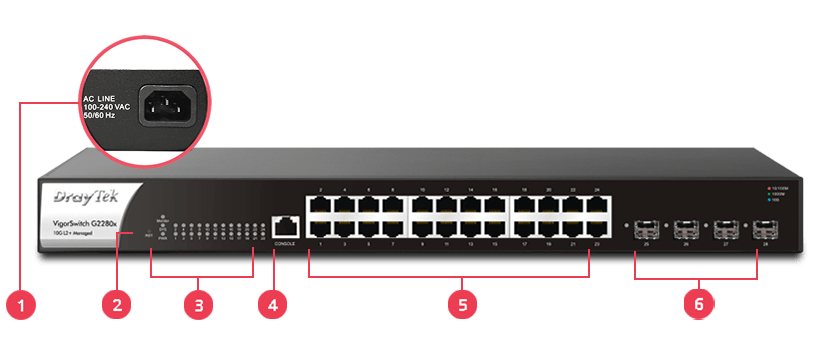

1. Power Socket 2. Reset Button 3. LED Indicator | 4. Console Port 5. 24x Gigabit Ethernet 6. 4x SFP+ Port | |
Key Features
| Auto Surveillance & Voice VLANRecognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization. | | 10G SFP+Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches. |
| ONVIF-FriendlyRecognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. | | IPv6 ReadyVigorSwitch G2280x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver. |
| Wire-Speed VLAN RoutingImprove overall network performance by using VigorSwitch G2280x to route the inter-VLAN traffic directly and offload the router. | | Web-Based GUIEasily manage and monitor the network through the web-based console with graphics showing ports and hardware status. |
| IP Conflict PreventionImprove network stability by avoiding IP conflicts caused by a misconfigured or malicious host. | | Multiple Admin AccountsMultiple Admin accounts with two levels of administrator privilege. |
| Access ControlVigorSwitch G2280x supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts. | | Central Switch ManagementSet up VLAN easily from the router and get a centralized hierarchy view of the switches. |
| QoS (Quality of Service)Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag. | | Central Switch ManagementSet up VLAN easily from the router and get a centralized hierarchy view of the switches. |
Advanced Layer 2+ Features

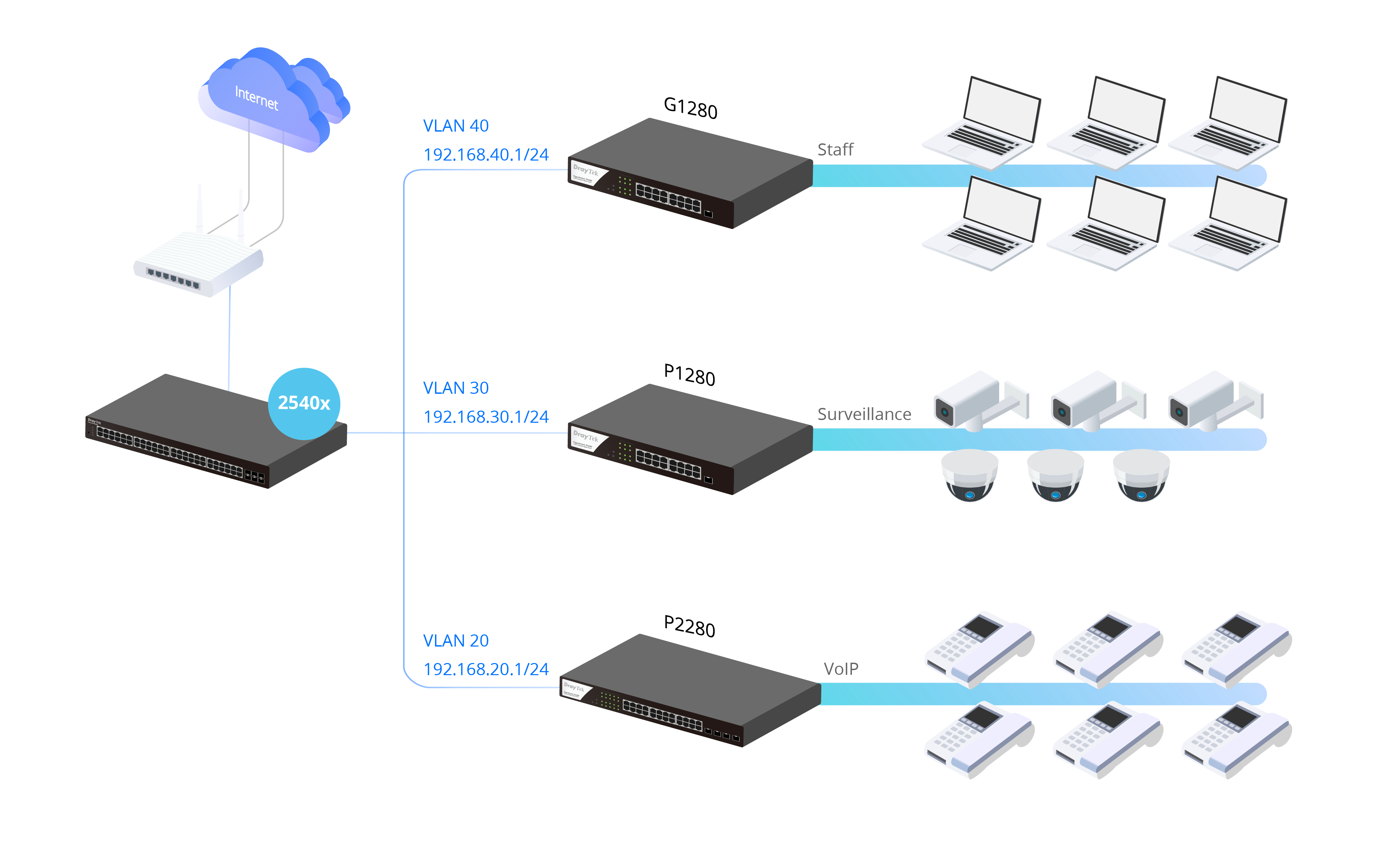

DHCP Server & VLAN Routing
Improving LAN Network Sustainability and Efficiency, with or without a RouterIn a large LAN network, much traffic doesn’t go to Internet, but to the servers in LAN. For example, IP cameras store videos to NVR, IP phones register to PBX, clients access to file server, etc. L2+ switch with DHCP server and VLAN routing functionalities, as the device receiving traffic before the router, is ideal to share the loading of your router and to help your LAN network to work continuously even when the router is offline. As a DHCP server, VigorSwitch assigns dynamic IP addresses for up to 8 VLANs. With VLAN routing, VigorSwitch supports up to 512 routes. | |

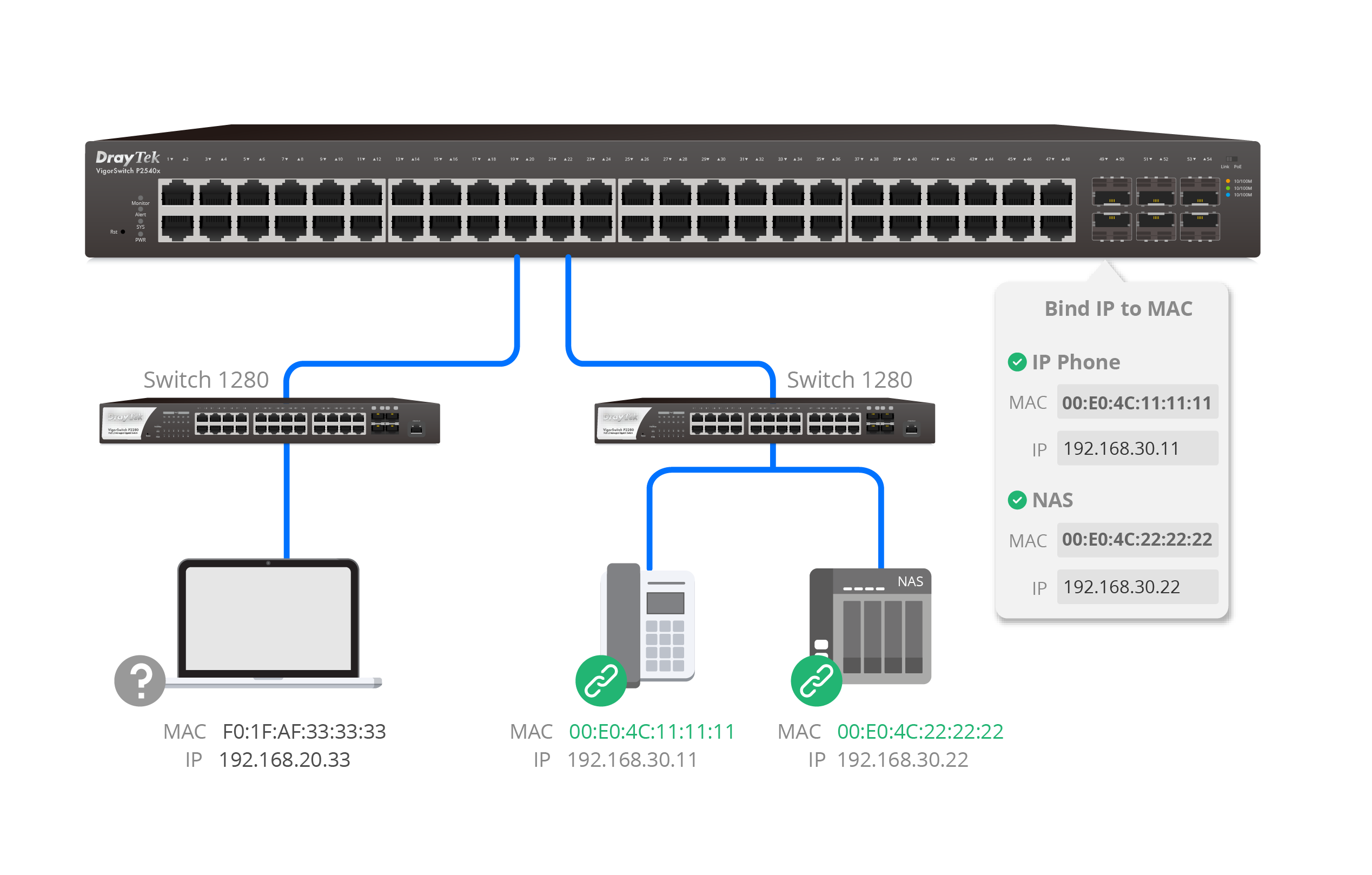

Bind IP to MAC
Reserve an IP Address for an Important DeviceAs a DHCP Server, layer 2+ VigorSwitch helps reserving IP addresses for your important devices that most users will access frequently. | |

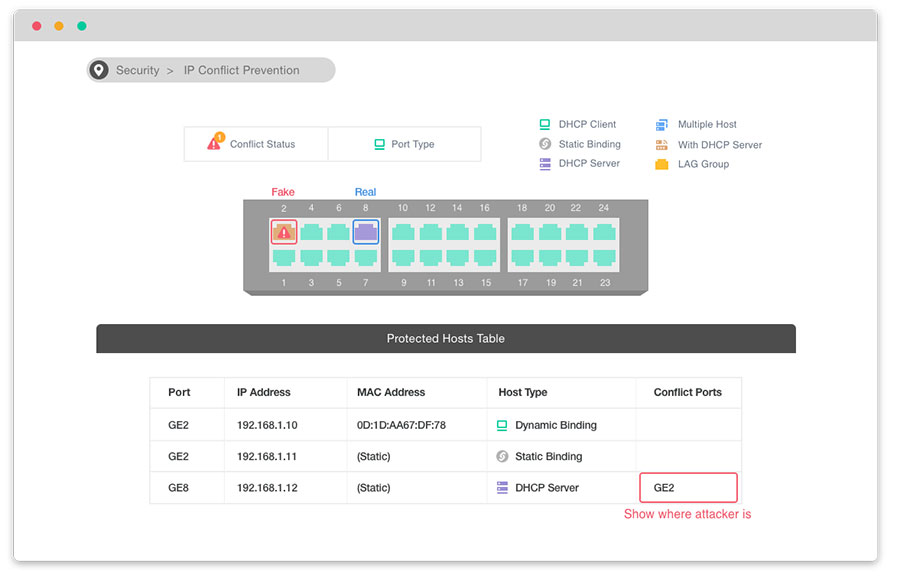

IP Conflict Detection & Prevention
| Conflict DetectionVigorSwitch keeps an eye on the environment and notify the administrator of any IP conflicts. Conflict PreventionFor a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host. |

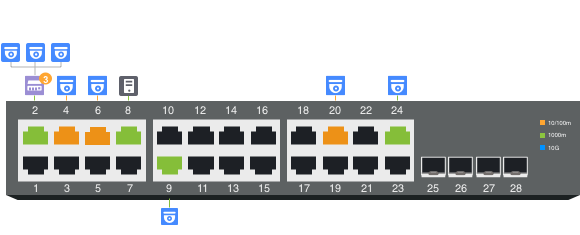

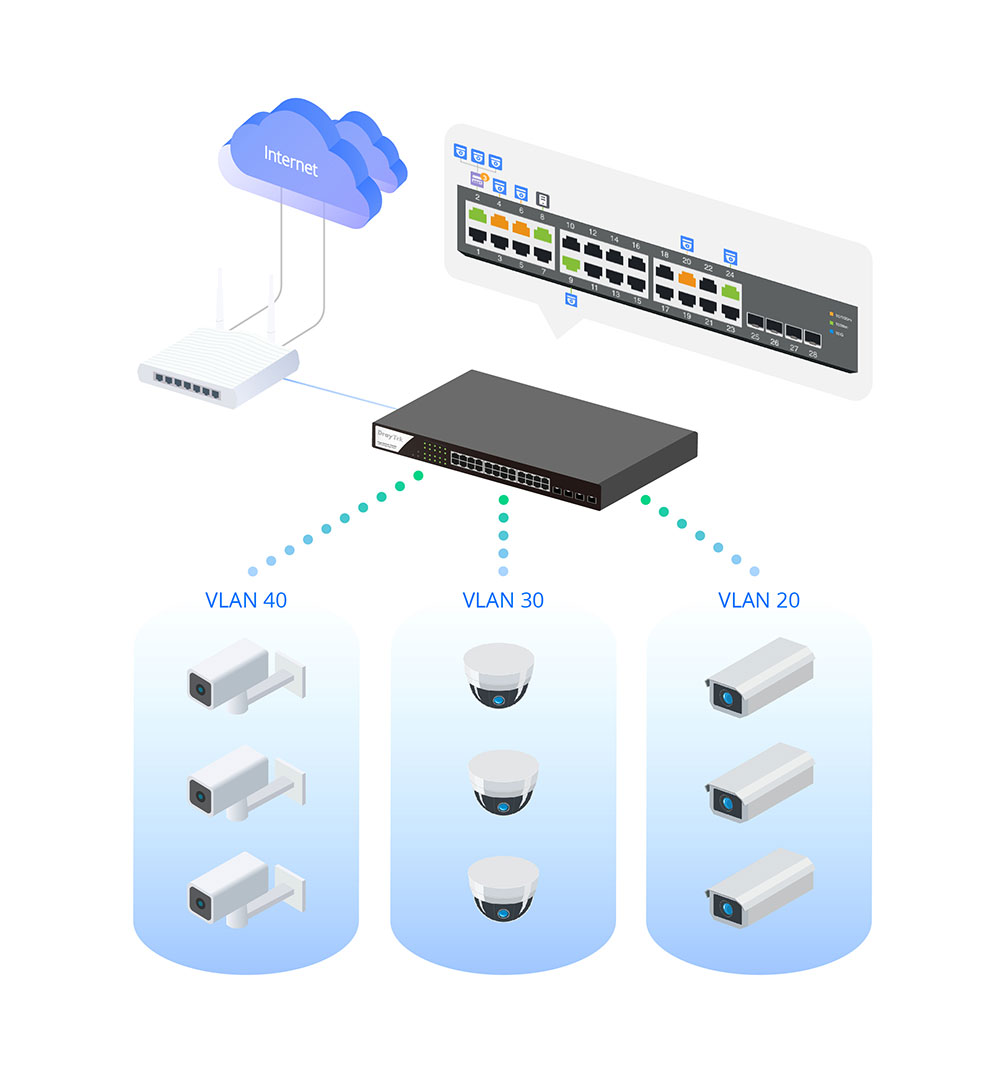

ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
|
Centralized Hierarchical ViewVigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs. Images ViewingImages filmed by IP cameras can be viewed directly on VigorSwitch. Device ManagementSupport ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc. |
ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy
| It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning. To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding. With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera. |
Management Solution
All-in-One Management | Software Management |
| | | |
- Auto-Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Reboot PoE Devices Remotely
- Quick VLAN Configuration
| - Auto-Discovery
- Auto-Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot PoE Devices Remotely
- Scheduled Maintenance
| - Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot Vigor Devices Remotely
- Scheduled Maintenance
- Report
| - Zero Touch Deployment & Provisioning
- Auto VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- ACS Server Load Balancing / Failover
|
