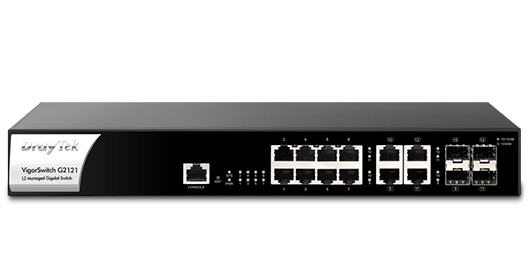

DrayTek VigorSwitch G2121 is a compact Layer 2 Managed Gigabit switch. It has 8x Gigabit Ethernet ports and 4x GbE/SFP combo ports. It provides enterprise-level features to help businesses to improve network security and stability. | |

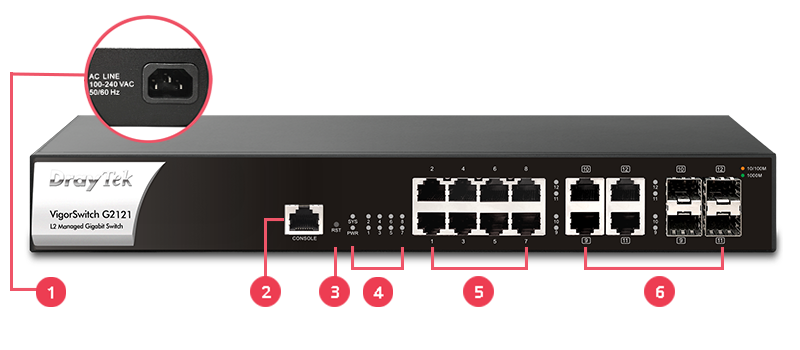

1. Power Socket 2. Console Port 3. Reset Button | 4. LED Indicator 5. 8x Gigabit Ethernet 6. 4x Gigabit Ethernet/SFP Combo | |
Key Features
| Auto Surveillance & Voice VLANRecognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization. | | IPv6 ReadyVigorSwitch G2121 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver. |
| IP Conflict PreventionImprove network stability by avoiding IP conflicts caused by a misconfigured or malicious host. | | Multiple Admin AccountsMultiple Admin accounts with two levels of administrator privilege. |
| Access ControlVigorSwitch G2121 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts. | | Central Switch ManagementSet up VLAN easily from the router and get a centralized hierarchy view of the switches. |
| ONVIF-FriendlyRecognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. | | Energy-Efficient EthernetCompliant with IEEE 802.3az to reduce power consumption. |
| QoS (Quality of Service)Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag. |
|
|

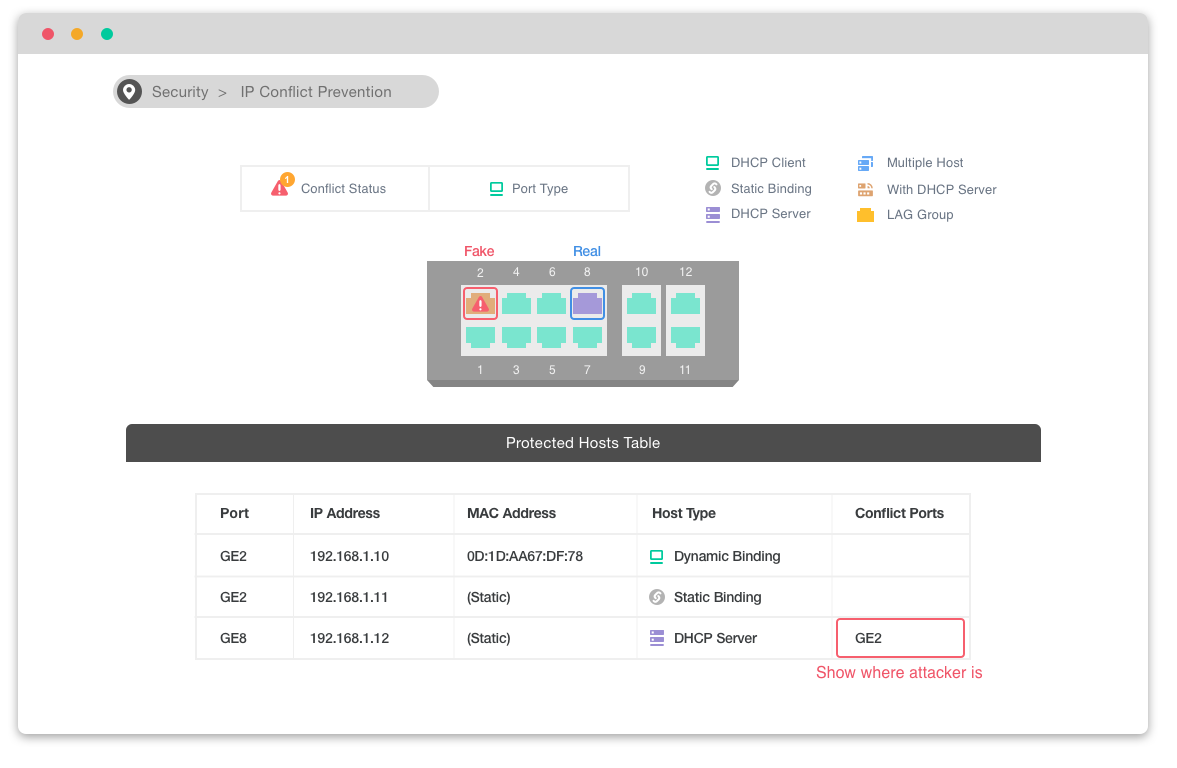

IP Conflict Detection & Prevention
| Conflict DetectionVigorSwitch keeps an eye on the environment and notify the administrator of any IP conflicts. Conflict PreventionFor a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host. |

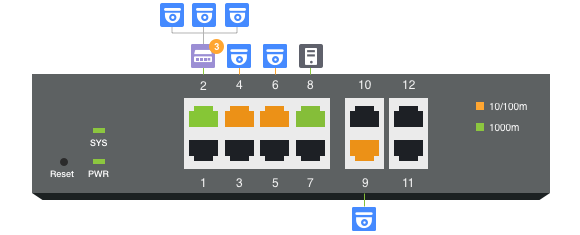

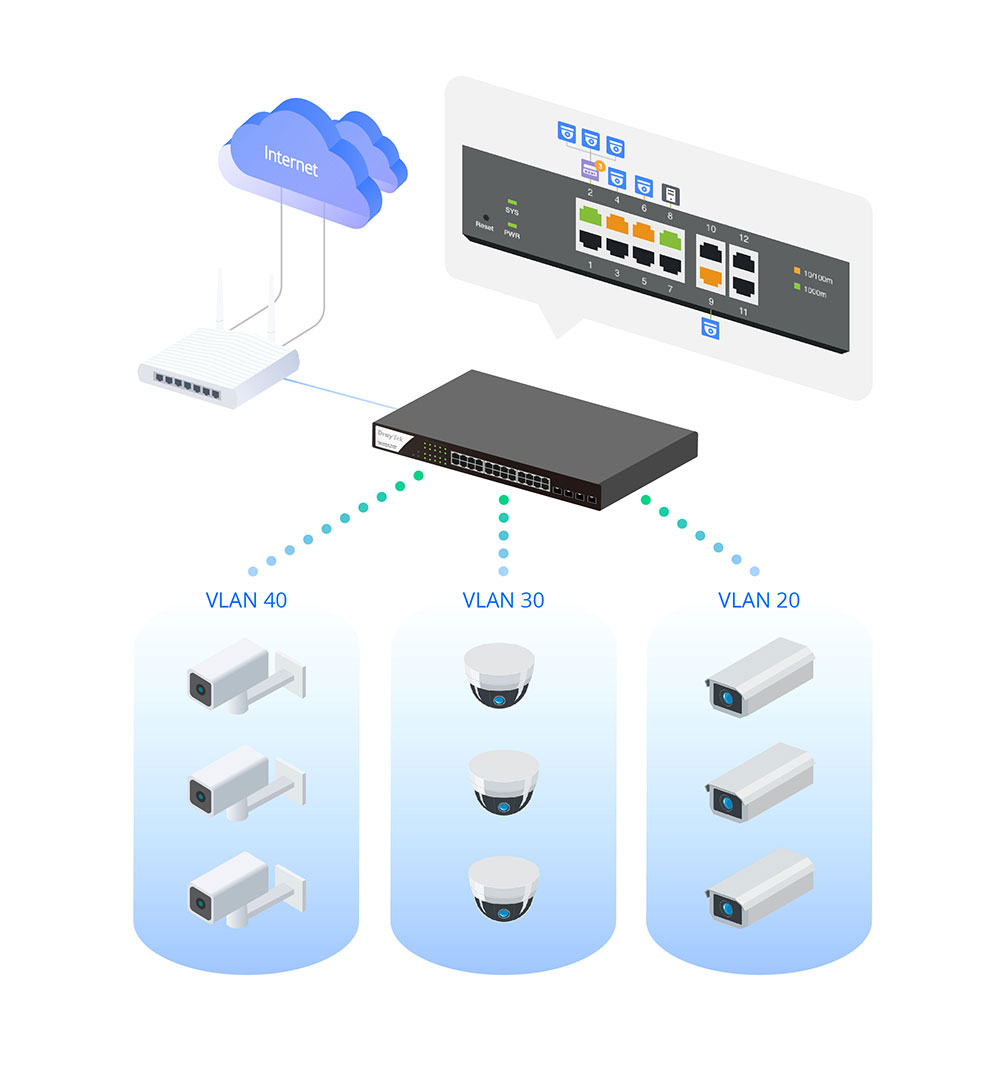

ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
|
Centralized Hierarchical ViewVigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs. Images ViewingImages filmed by IP cameras can be viewed directly on VigorSwitch. Device ManagementSupport ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc. |

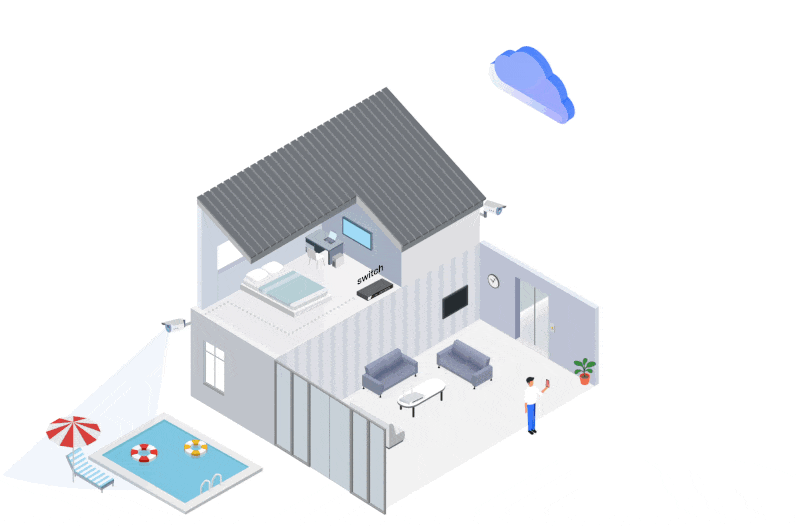

ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy
| It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning. To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding. With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera. |
Management Solution
All-in-One Management | Software Management |
| | | |
- Auto-Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Reboot PoE Devices Remotely
- Quick VLAN Configuration
| - Auto-Discovery
- Auto-Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot PoE Devices Remotely
- Scheduled Maintenance
| - Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot Vigor Devices Remotely
- Scheduled Maintenance
- Report
| - Zero Touch Deployment & Provisioning
- Auto VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- ACS Server Load Balancing / Failover
|
