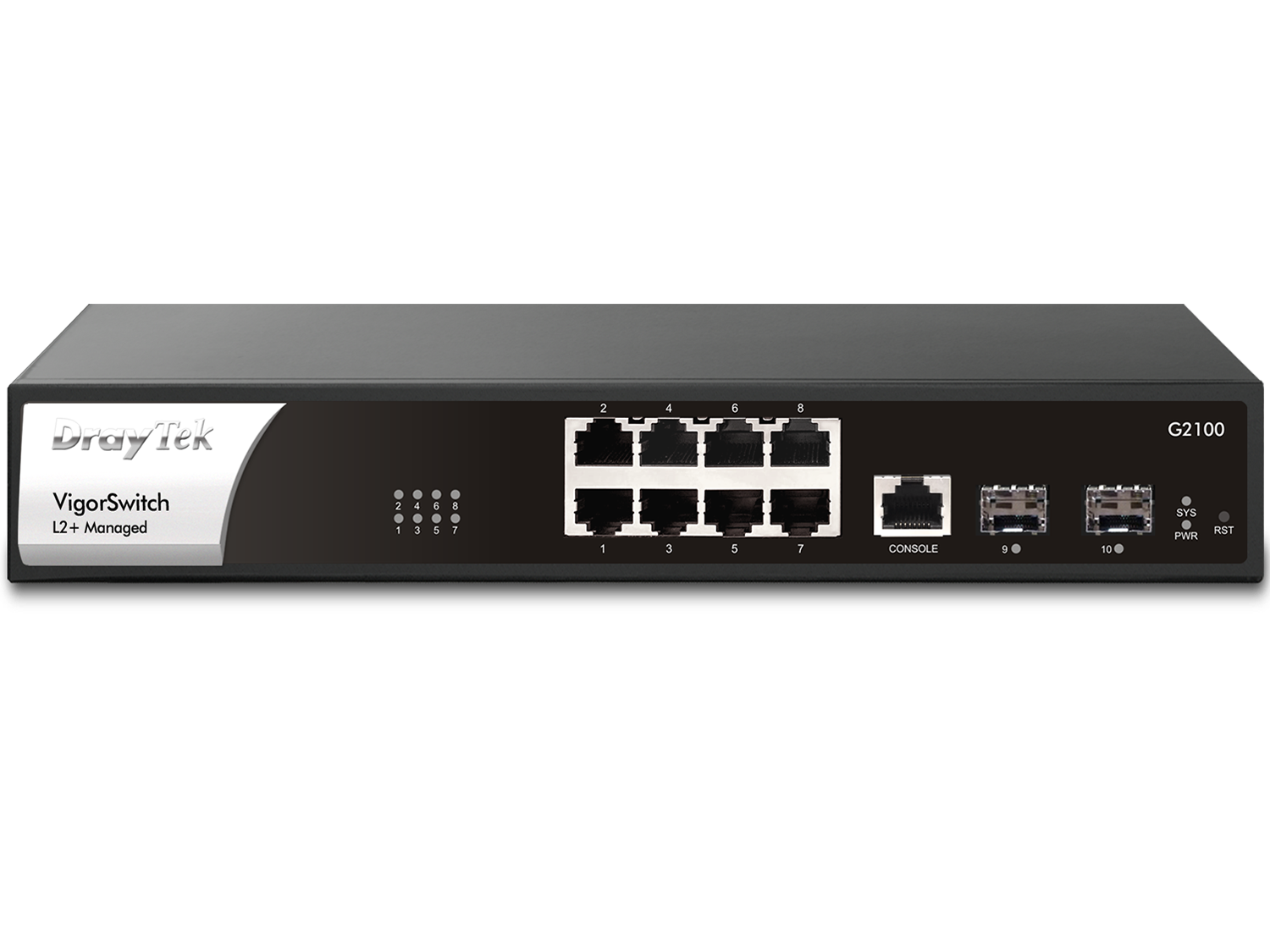

DrayTek VigorSwitch G2100 is a compact Layer 2+ Managed Gigabit switch well-suited for smart home and branch/remote sites. It has 2x GbE SFP ports, 8x Gigabit Ethernet ports, and 1x console port. Featuring Layer 3 features, including DHCP Server and VLAN Routing, VigorSwitch G2100 improves local network sustainability and efficiency regardless of the gateway. Furthermore with IP Conflict Detection & Prevention, ONVIF Surveillance, ping watchdog and a lot more, this is the balanced switch that brings advanced features into small environments.

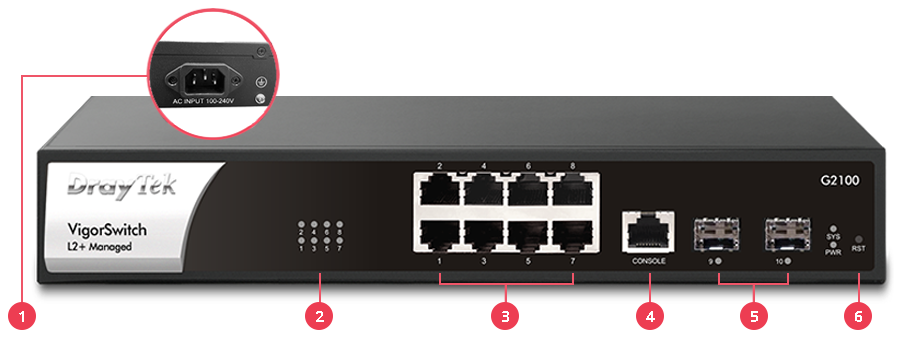

1. Power Socket 2. LED Indicator 3. 8x Gigabit Ethernet | 4. Console Port 5. 2x SFP Port 6. Reset Button | |
Key Features

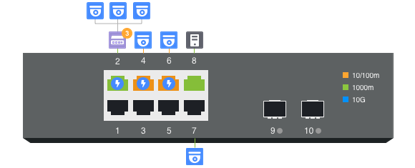

| Auto Surveillance & Voice VLANRecognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization. | | IPv6 ReadyVigorSwitch G2100 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver. |
| ONVIF-FriendlyRecognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. | | Web-Based GUIEasily manage and monitor the network through the web-based console with graphics showing ports and hardware status. |
| Wire-Speed VLAN RoutingImprove overall network performance by using VigorSwitch G2100 to route the inter-VLAN traffic directly and offload the router. | | Multiple Admin AccountsMultiple Admin accounts with two levels of administrator privilege. |
| IP Conflict PreventionImprove network stability by avoiding IP conflicts caused by a misconfigured or malicious host. | | Central Switch ManagementSet up VLAN easily from the router and get a centralized hierarchy view of the switches. |
| Access ControlVigorSwitch G2100 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts. | | Energy-Efficient EthernetCompliant with IEEE 802.3az to reduce power consumption. |
| QoS (Quality of Service)Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag. |
|
|

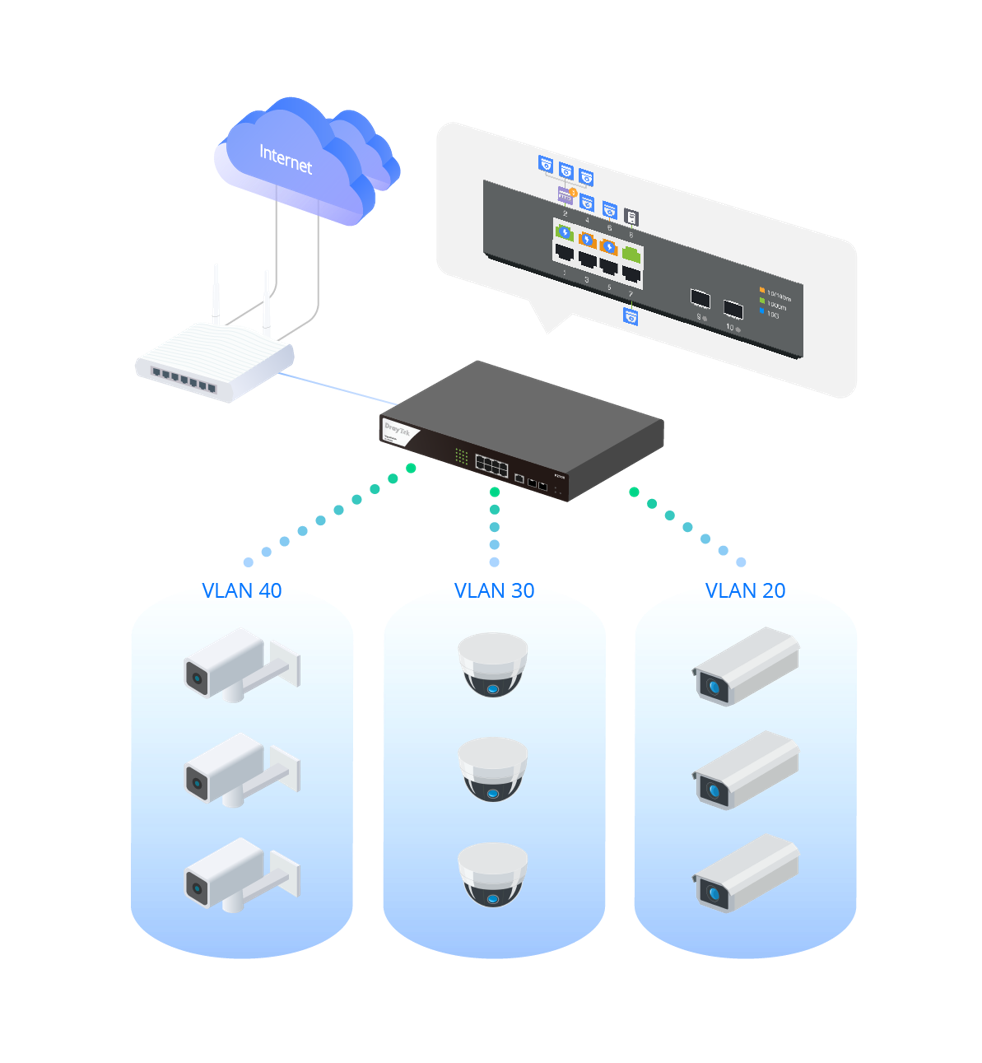

ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
|
Centralized Hierarchical ViewVigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs. Images ViewingImages filmed by IP cameras can be viewed directly on VigorSwitch. Device ManagementSupport ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc. |
ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy
| It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning. To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding. With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera. |

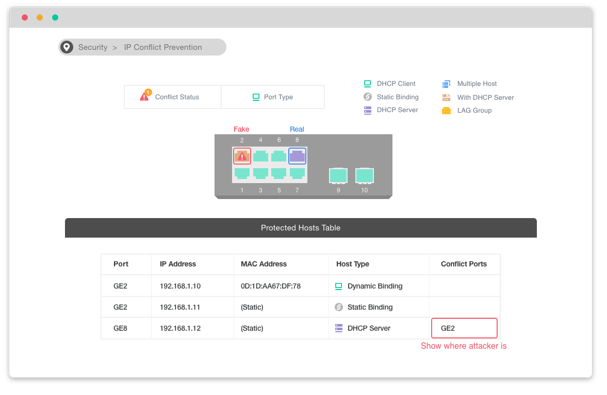

IP Conflict Detection & Prevention
| Conflict DetectionKeep an eye on the environment and notify the administrator of any IP conflicts. Conflict PreventionFor a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host. |
LAN Management
An all-in-one management platform for Vigor devices on the LAN side.
Automatic Device DiscoveryAll you need is connect the Vigor Switch/AP to the LAN side of the router, Vigor Router will then discover the devices to be managed. | ProvisioningSwitch profile, including VLAN, enabled/disabled port, and rate limit, may be set on the Vigor Router and provisioned to the VigorSwitch. MonitoringVigor Router provides a centralized hierarchical view of managing devices. Once there’s alert happens, you may also check the log and receive the notification. System MaintenanceYou may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the Vigor Router. There’s no need to log in to each device’s management page. |
Management Solution
All-in-One Management | Software Management |
| | | |
- Auto-Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Reboot PoE Devices Remotely
- Quick VLAN Configuration
| - Auto-Discovery
- Auto-Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot PoE Devices Remotely
- Scheduled Maintenance
| - Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot Vigor Devices Remotely
- Scheduled Maintenance
- Report
| - Zero Touch Deployment & Provisioning
- Auto VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- ACS Server Load Balancing / Failover
|
