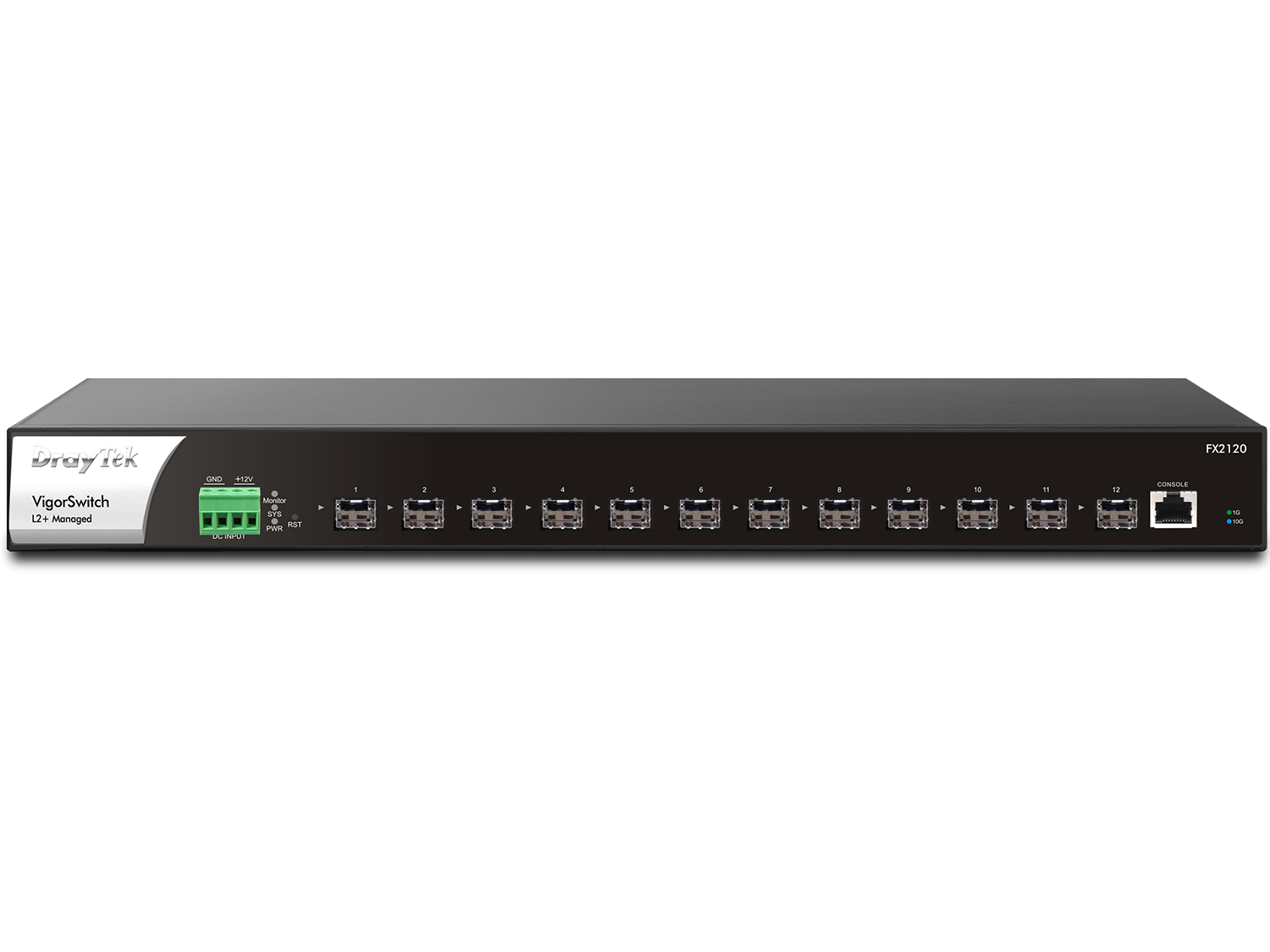

Full Fiber-10G L2+ Managed Switch
DrayTek VigorSwitch FX2120 is a full 10 Gigabit switch with 12x SFP+ ports for uplink/downlink and 1x console port. It is well-suited for ISP and enterprise network with intensive data transmission.
Supporting OpenFlow 1.3, it’s also a future-proofed switch that can be operating in either traditional switch or SDN switch mode.
Equipped with Layer 3 features, including DHCP Server and VLAN Routing, VigorSwitch FX2120 improves local network sustainability and efficiency regardless of the gateway. Furthermore, with IP Conflict Detection & Prevention, ONVIF Surveillance and a lot more, this is the balanced switch that brings advanced features into mid-sized environments.

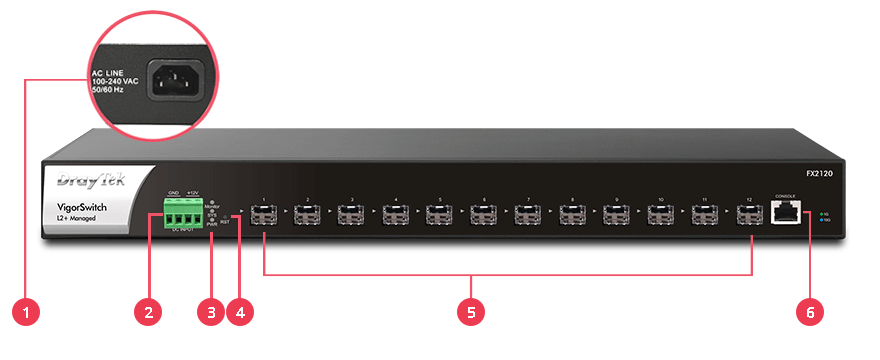

1. AC Power Socket 2. DC Power Socket (backup usage) 3. LED Indicator | 4. Reset Button 5. 12x 10G SFP+ Ports 6. Console Port | |
Key Features

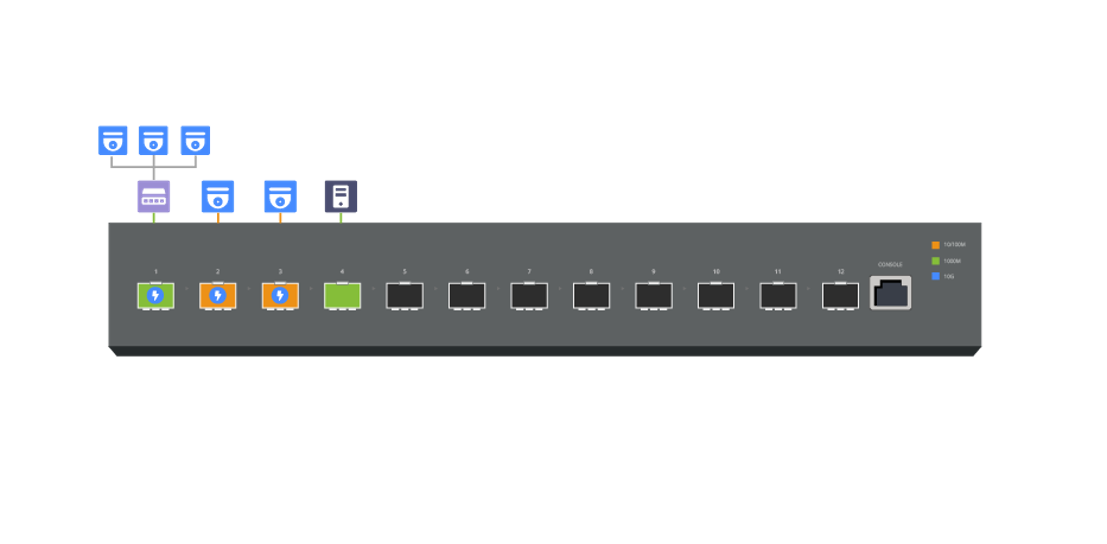

| Auto Surveillance & Voice VLANRecognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization. | | 10G SFP+Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches. |
| ONVIF-FriendlyRecognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. | | IPv6 ReadyVigorSwitch FX2120 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver. |
| Wire-Speed VLAN RoutingImprove overall network performance by using VigorSwitch FX2120 to route the inter-VLAN traffic directly and offload the router. | | Web-Based GUIEasily manage and monitor the network through the web-based console with graphics showing ports and hardware status. |
| IP Conflict PreventionImprove network stability by avoiding IP conflicts caused by a misconfigured or malicious host. | | Multiple Admin AccountsMultiple Admin accounts with two levels of administrator privilege. |
| Access ControlVigorSwitch FX2120 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts. | | Central Switch ManagementSet up VLAN easily from the router and get a centralized hierarchy view of the switches. |
| QoS (Quality of Service)Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag. | | Energy-Efficient EthernetCompliant with IEEE 802.3az to reduce power consumption. |

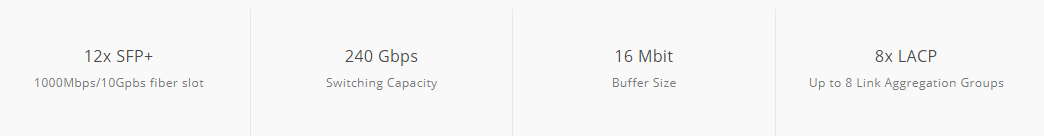

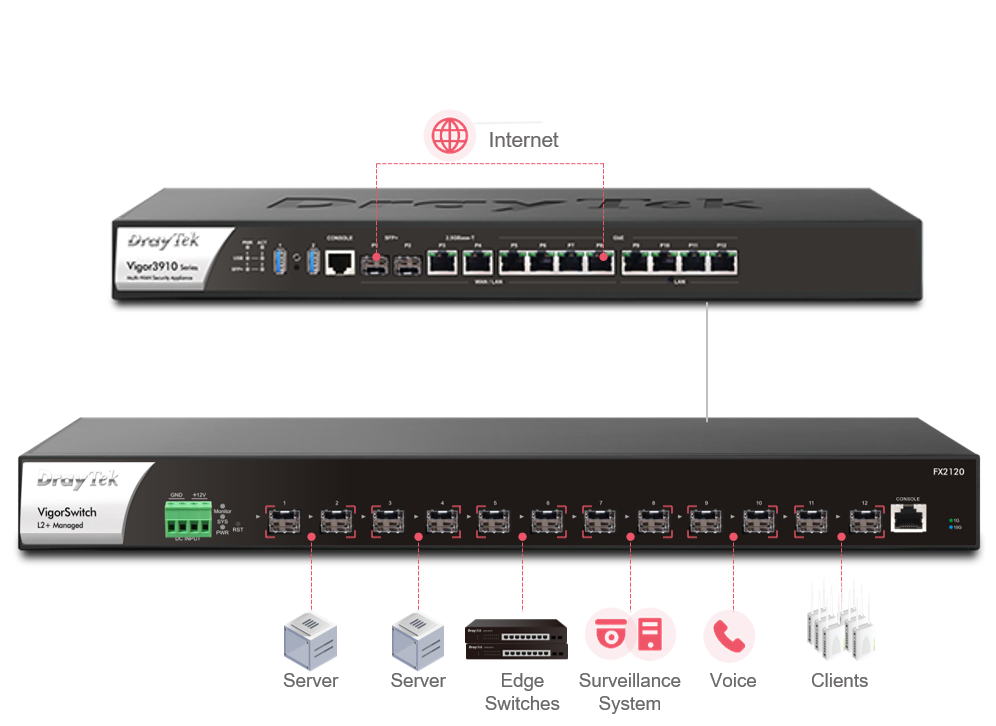

High Speed 10G SFP+
12x 10GbE SFP+ ports on VigorSwitch FX2120 Series fully support for uplink and downlink, it's ready to deliver fast transfer speed to your LAN network.
10G backbone for ISPsCloud service providerIoT applicationsBandwidth-demanding entertainments
| |
SDN Features for Edge Network
DrayTek OpenFlow Switch supports various meters and actions provides by OpenFlow 1.3, and thus helps service providers creating new services agilely.
Business- Meters
- QoS for VoIP
- Rate Limit

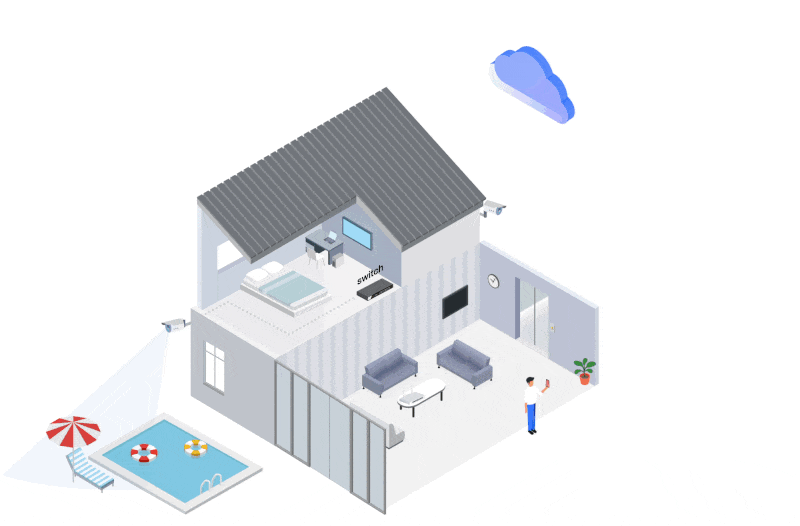

SMB / Home- Meters
- Rate Limit for users
- TCP/UDP policies for IPTV
- QoS for IPTV
IoTs
| |

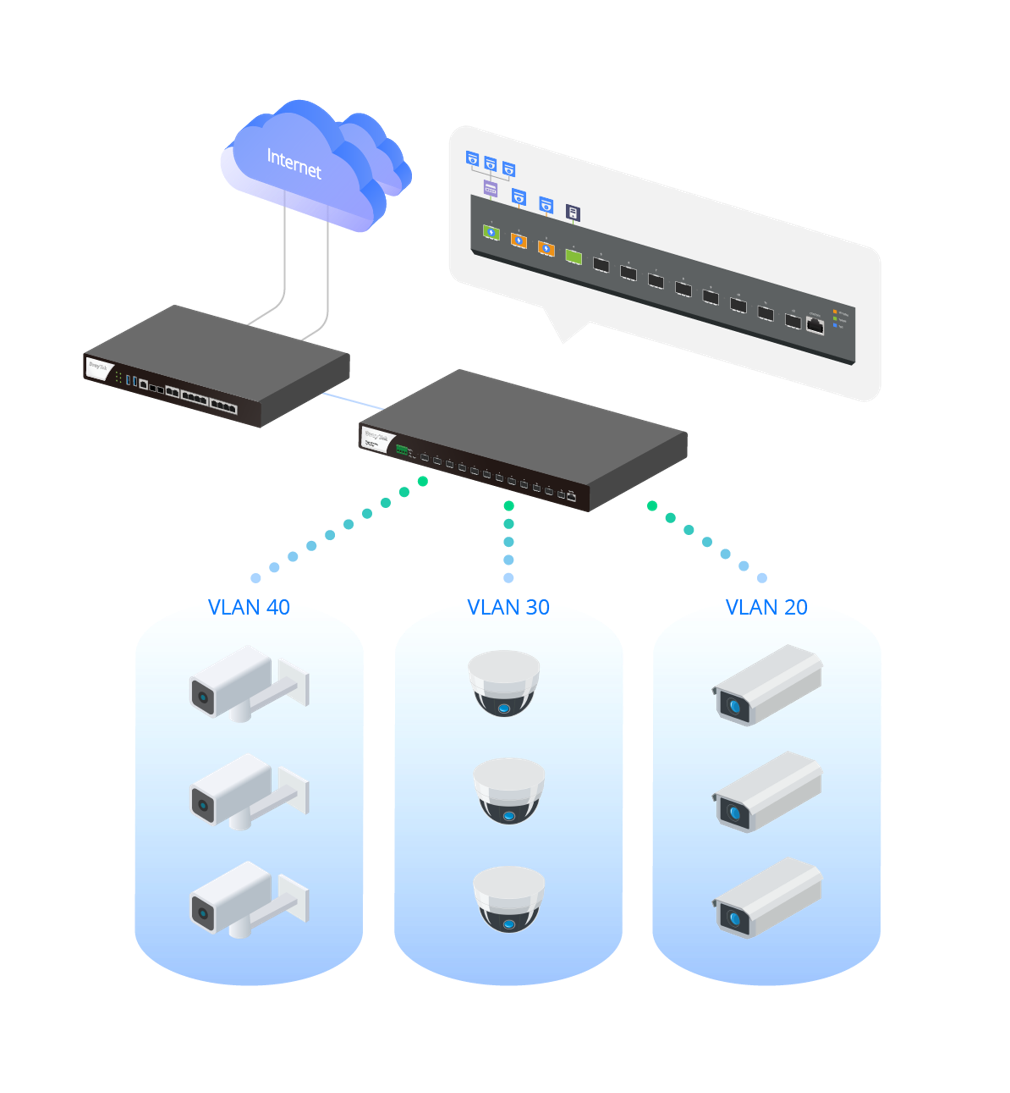

ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
Centralized Hierarchical ViewVigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs. Images ViewingImages filmed by IP cameras can be viewed directly on VigorSwitch. Device ManagementSupport ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc. | |
ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy
| It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning. To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding. With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera. |

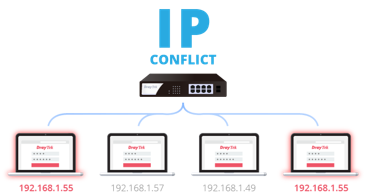

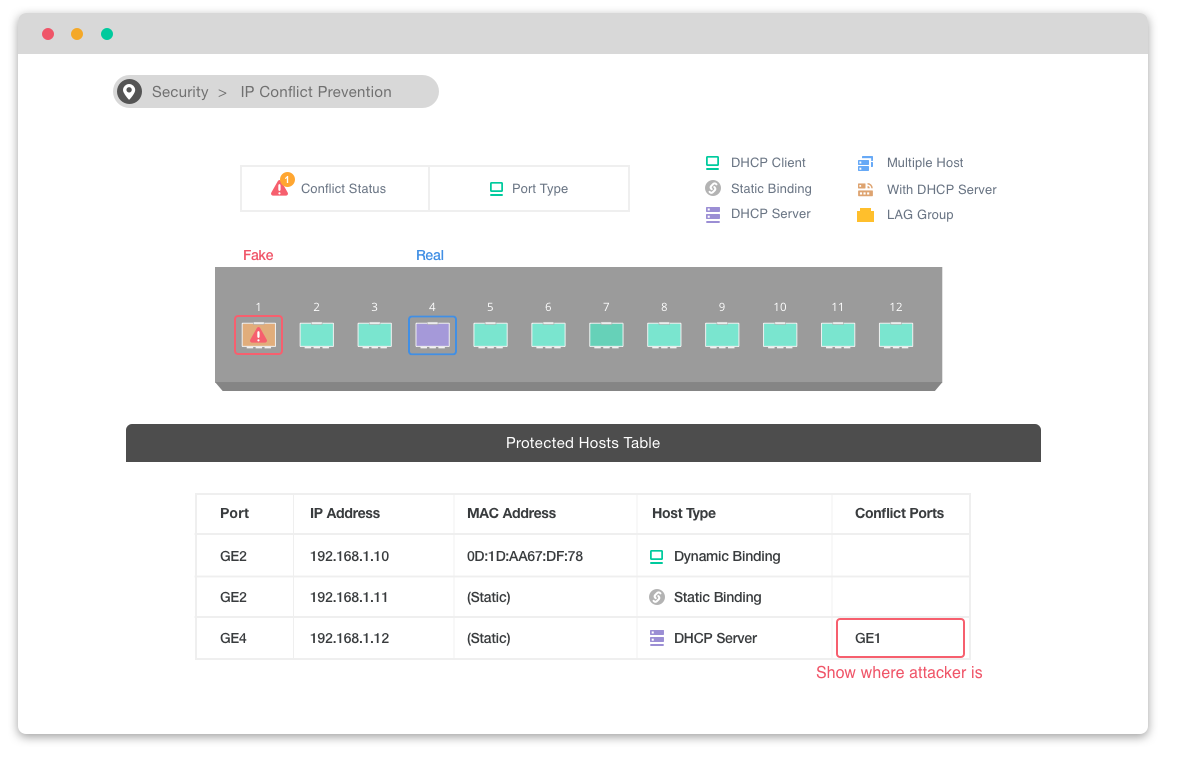

IP Conflict Detection & Prevention
Conflict DetectionKeep an eye on the environment and notify the administrator of any IP conflicts. Conflict PreventionFor a more stable network, VigorSwitch can't only detect but block the misconfigured or malicious IP host.
| |
LAN Management
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.
Automatic Device DiscoveryAll you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed. ProvisioningSwitch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely. MonitoringVigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there's log and alert happens. System MaintenanceYou may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There's no need to log in to each device's management page. | |
Management Solution
All-in-One Management | Software Management |
| | |
- Auto-Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Reboot PoE Devices Remotely
- Quick VLAN Configuration
| - Auto-Discovery
- Auto-Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot PoE Devices Remotely
- Scheduled Maintenance
| - Zero Touch Deployment & Provisioning
- Auto VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- Application-Based SD-WAN Policy
- Customized Hotspot Page with Multilingual
- Hotspot Clients Analytics
- ACS Server Load Balancing / Failover
|
