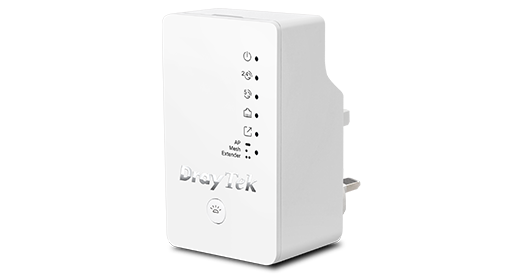

VigorAP 802

The Simplest Range Extend Solution

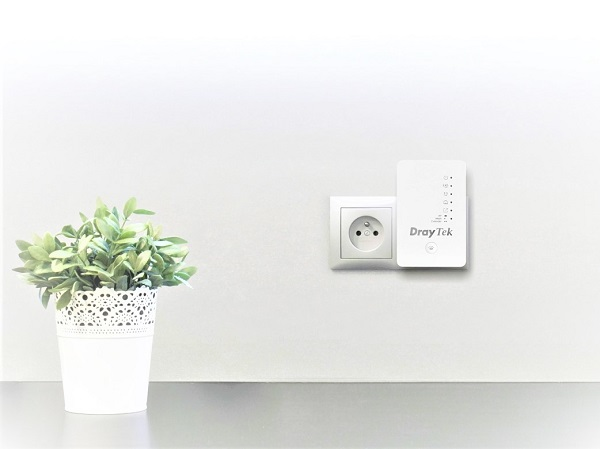

VigorAP 802 is an ultra-compact dual-band wireless access point, designed for extending the Wi-Fi coverage. It has an RJ-45 port for Ethernet uplink or wired connection. The wall plug allows it to be placed anywhere with an electric outlet, providing 1200Mbps wireless speed to every corner. The portable design gives you the flexibility of installation. Despite its compact size, VigorAP 802 still offers the business-grade features as the other VigorAP does, including roaming, airtime fairness, band steering, and a lot more.

Flexible Operation

Access Point

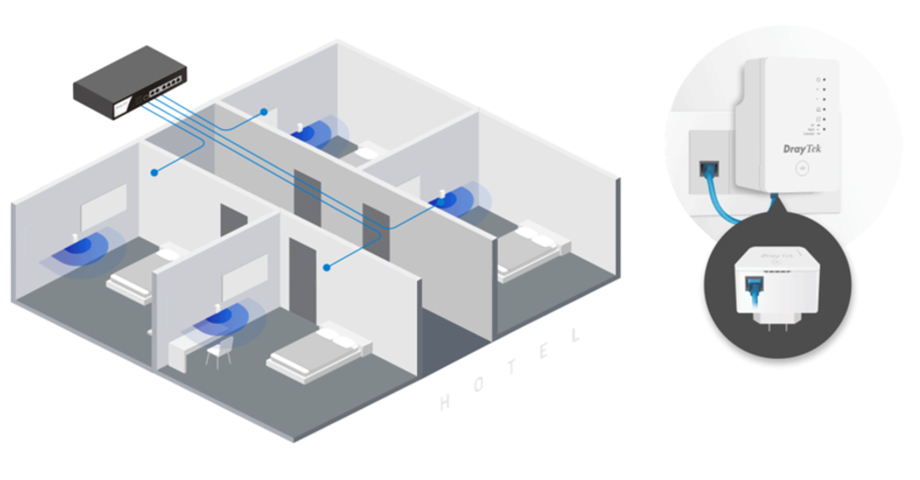

A mini dual-band 11ac wireless AP for every corner

Mesh Node

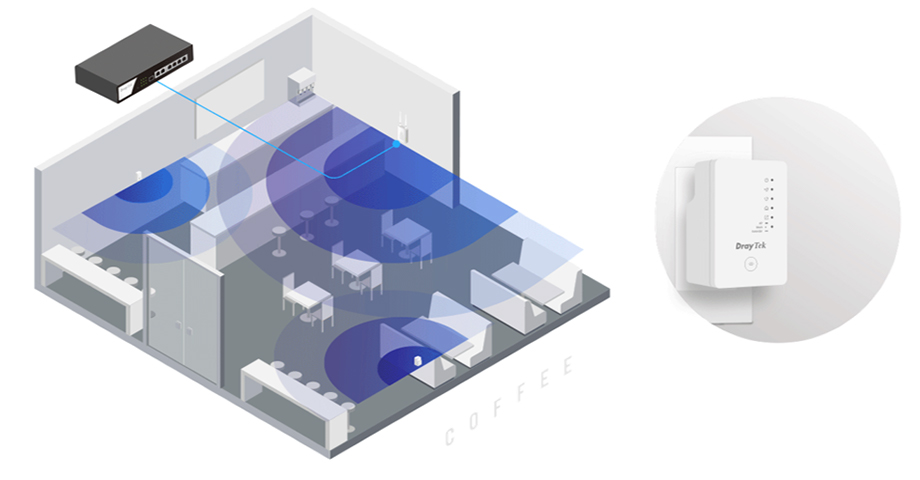

An instant cable-less solution to extend the existing wireless network

Key Features

	Mesh (Wireless model only) Easily link to other VigorAP to expand the wireless network.			Assisted Wi-Fi Roaming Solve the sticky client problem and improve Wi-Fi roaming experience.
	Multiple SSID Mapping Wi-Fi clients to different VLANs and have a different set of security standards			Wi-Fi Scheduling Schedule Wi-Fi On and Off to control wireless access and save energy.
	Airtime Fairness Equalize the transmission time of each client so the legacy devices won't slow everyone down.			Central AP Management Manage, maintain, and monitor VigorAP 802 from the DrayTek routers.
	Band Steering Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed.

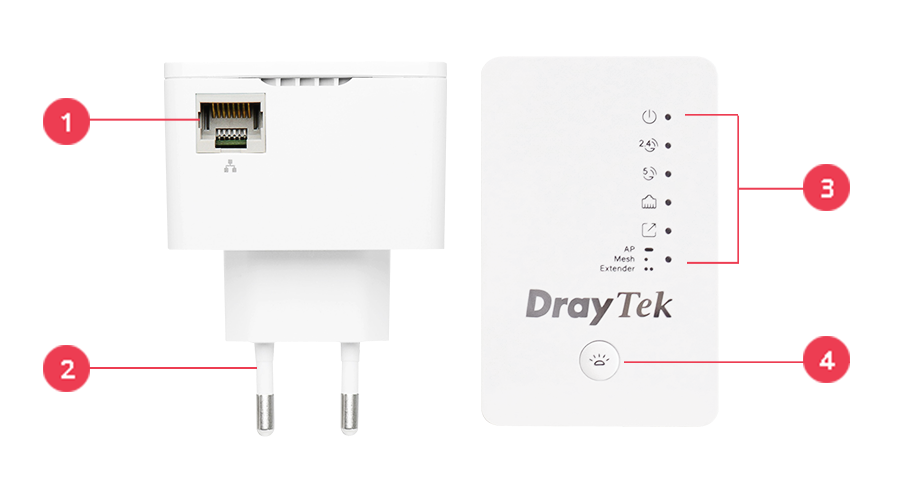

1LAN GbE, RJ-45

2Power Prong

3LED Indicators

4LED On/Off Button

AP-assisted Roaming

Making Transmission Effective

Disassociate the Wireless clients who are out of the effective transmission range
defined by custom Basic Rate or/and RSSI threshold, and force them to pick up
another access point with a stronger signal.

Resource Saving

Proactively kick out the clients with a low basic rate or low RSSI can prevent the
access points trying to do ineffective transmission but saving the airtime, which
will results in better WLAN experience for all.

No Controller Required

Assisted Roaming is a feature built in all Vigor Access Points and selected Wireless
routers. They operate without a wireless controller, providing an ideal solution for
simple network deployment.

Stronger Signal Guaranteed

By using the "Minimum RSSI with Adjacent AP" option, the AP/Router on the same
local subnet will exchange client information with each other, providing the choice
to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby.
