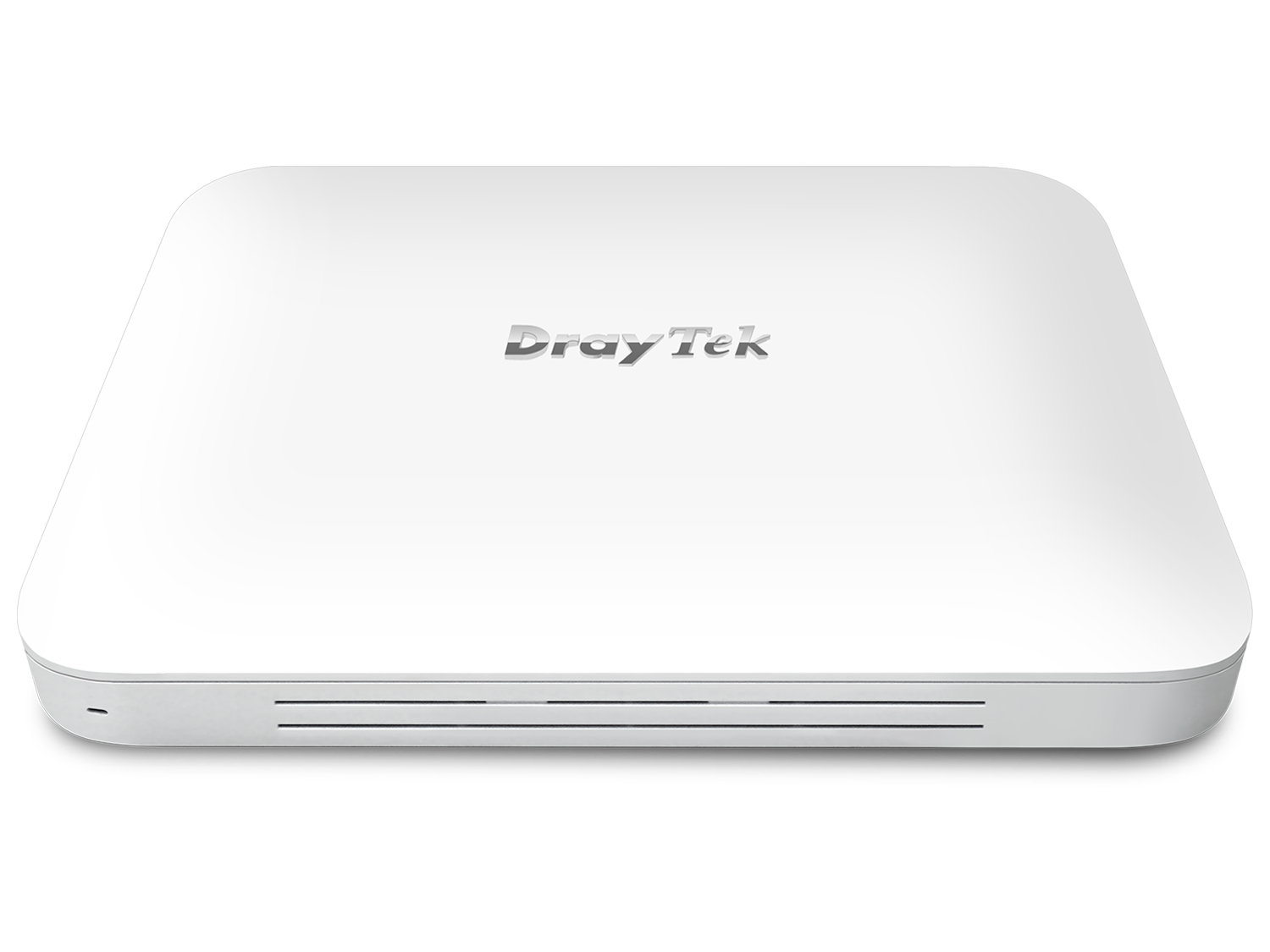

The VigorAP 1000C is a business-class tri-band access point with single 2.4GHz and dual 5GHz radios, delivering fast link rate up to 2.2.Gbps. With the additional 5GHz radio, it is ideal for providing wireless access in high density environments in AP mode or forming dedicated wireless backhaul link in Mesh mode. Similar to other VigorAP models, VigorAP 1000C comes with band-steering, airtime fairness, and AP-assisted roaming, offering reliable and high-performance wireless experience.
Interface

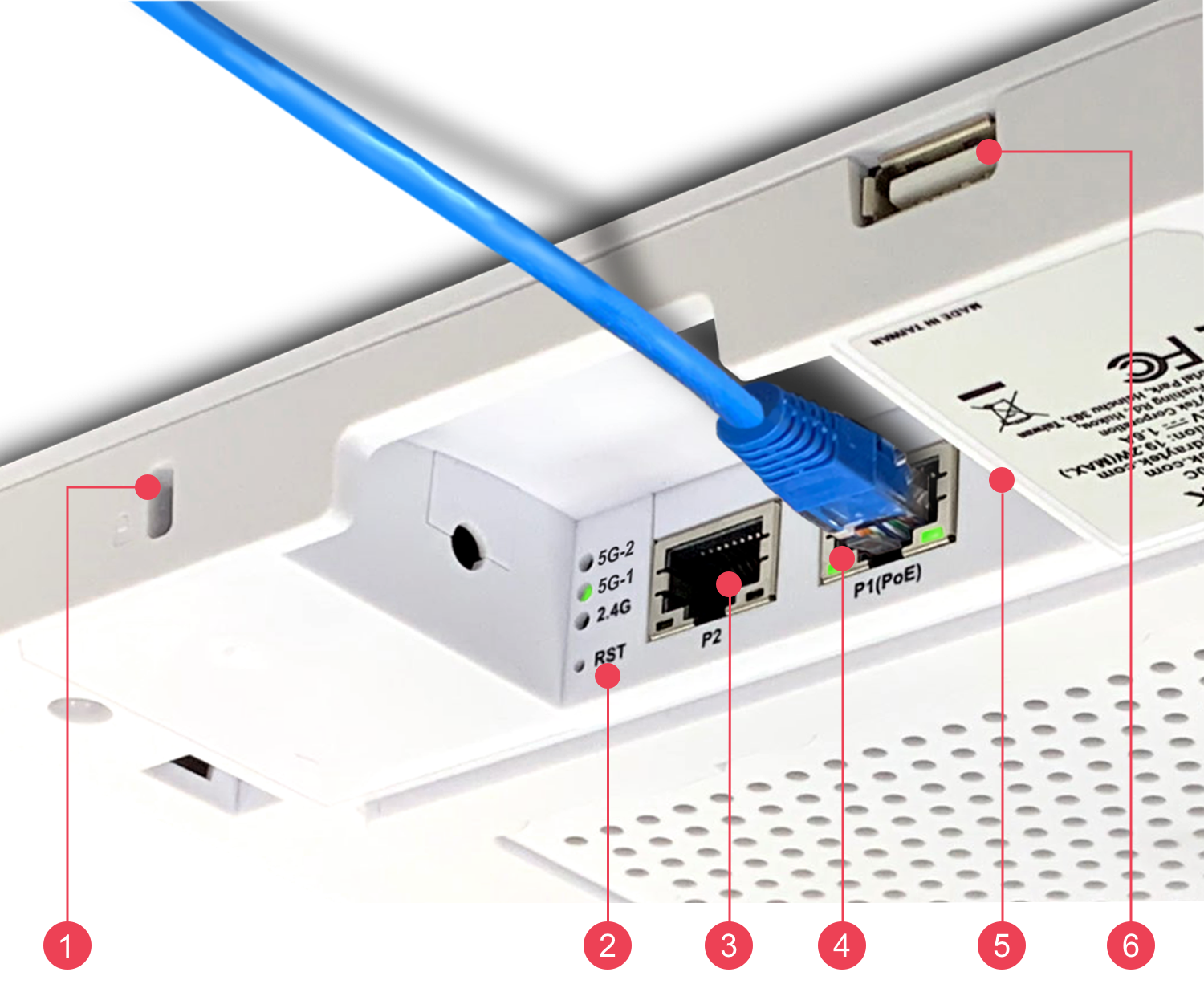

| 1. Security Lock 2. Factory Reset Button 3. LAN 2: 10/100/1000M Base-T RJ-45 4. LAN 1: 10/100/1000M Base-T RJ-45 PoE-PD Support 5. DC Power Input 6. USB 2.0 Type A |
Tri-Band Wireless
AP

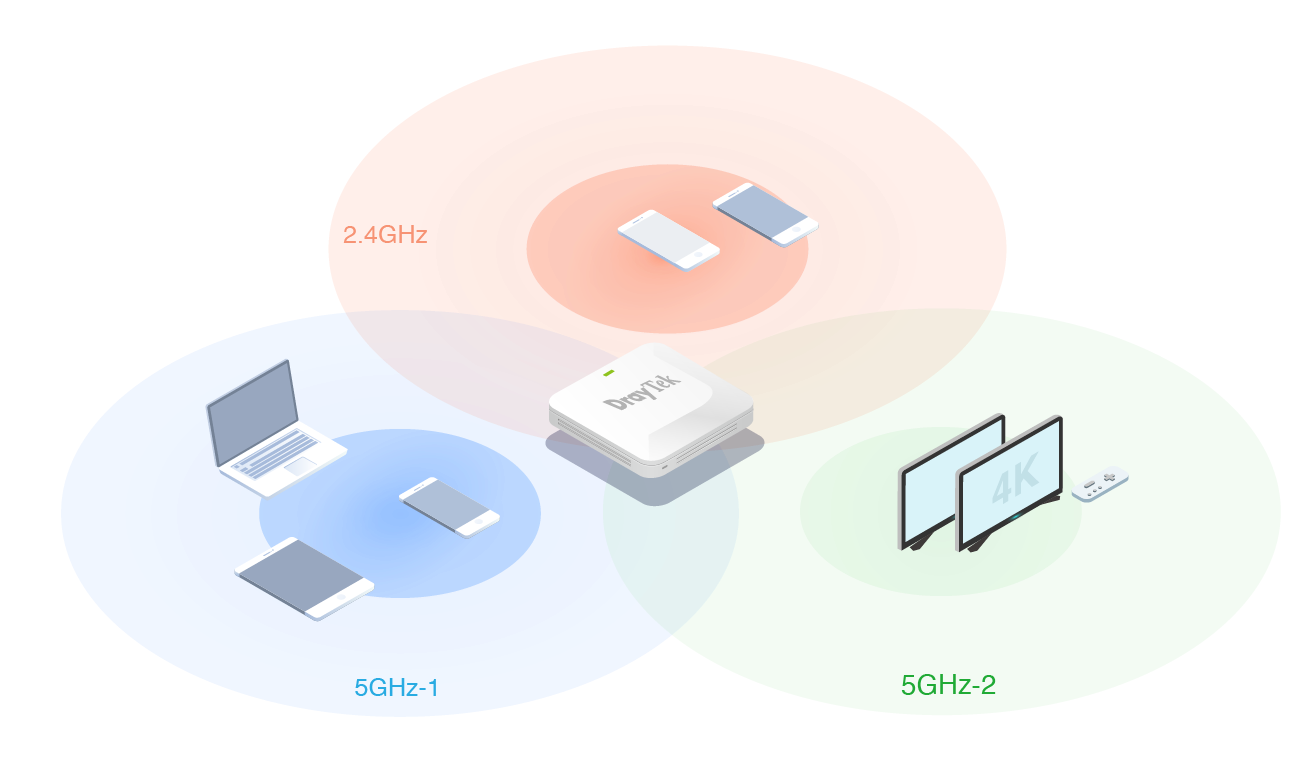

| With single 2.4GHz and dual 5GHz radios, VigorAP 1000C in AP mode is ideal for providing wireless access in high density environments. Wireless clients are connecting to 3 bands separately, keeping each band less-crowded and improving Wi-Fi experience for all the clients. |
Mesh

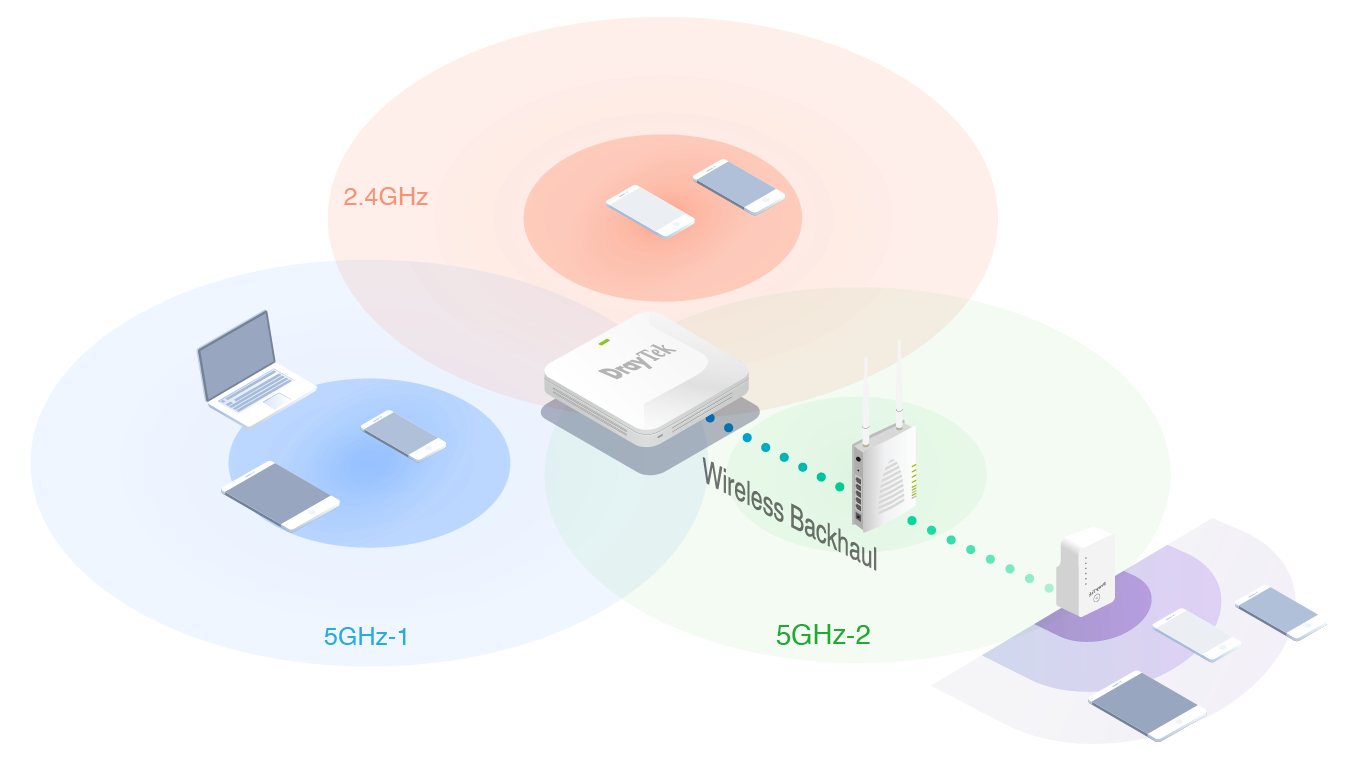

With the extra 5GHz radio, VigorAP 1000C in Mesh mode is ideal for forming dedicated wireless backhaul link. Wireless clients may still connect to the 2.4GHz and the other 5GHz radio, keeping both bands less-crowded and improving Wi-Fi experience for all the clients. | |
Key Features
| Mesh (Wireless model only)Easily link to other VigorAP to expand the wireless network. | | Assisted Wi-Fi RoamingSolve the sticky client problem and improve Wi-Fi roaming experience. |
| PoE Power SupplySimplify the infrastructure by getting data and power through a single cable. | | Wi-Fi SchedulingSchedule Wi-Fi On and Off to control wireless access and save energy. |
| Multiple SSIDMapping Wi-Fi clients to different VLANs and have a different set of security standards | | Local RADIUS ServerUser profile database for local and external 802.1x authentication. |
| Airtime FairnessEqualize the transmission time of each client so the legacy devices won't slow everyone down. | | Central AP ManagementManage, maintain, and monitor VigorAP 1000C from the DrayTek routers. |
| Band SteeringRedirect 5GHz-capable devices to the 5GHz radio to get a faster speed. |
|
|

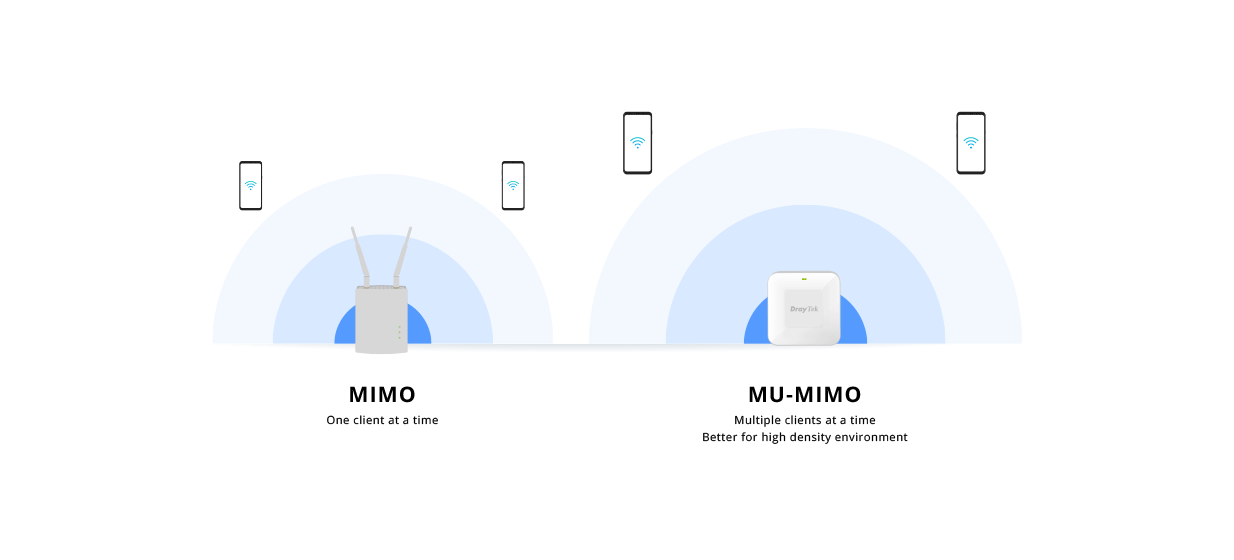

11ac Wave 2 Technology
VigorAP 1000C supports MU-MIMO for high density applications
AP-assisted Roaming
| Making Transmission EffectiveDisassociate the Wireless clients who are out of the effective transmission range defined by custom Basic Rate or/and RSSI threshold, and force them to pick up another access point with a stronger signal. Resource SavingProactively kick out the clients with a low basic rate or low RSSI can prevent the access points trying to do ineffective transmission but saving the airtime, which will results in better WLAN experience for all. No Controller RequiredAssisted Roaming is a feature built in all Vigor Access Points and selected Wireless routers. They operate without a wireless controller, providing an ideal solution for simple network deployment. Stronger Signal GuaranteedBy using the "Minimum RSSI with Adjacent AP" option, the AP/Router on the same local subnet will exchange client information with each other, providing the choice to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby. |
Management Solution
All-in-One Management
| |
- DrayTek Wireless app-support
- Discovery
- Provisioning
- Monitoring
- Centralized Hierarchy View
| - Auto-Discovery
- Auto-Provisioning
- Monitoring
- Centralized View
- Reboot VigorAP Remotely
- Wi-Fi Client Load Balancing
|
Software Management
| | |
- Auto-Discovery
- Auto-Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot VigorAP Remotely
- Scheduled Maintenance
| - Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Reboot Vigor Devices Remotely
- Scheduled Maintenance
- Report
| - Zero Touch Deployment & Provisioning
- Auto VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- Customized Hotspot Page with Multilingual
- Hotspot Clients Analytics
- ACS Server Load Balancing / Failover
|
