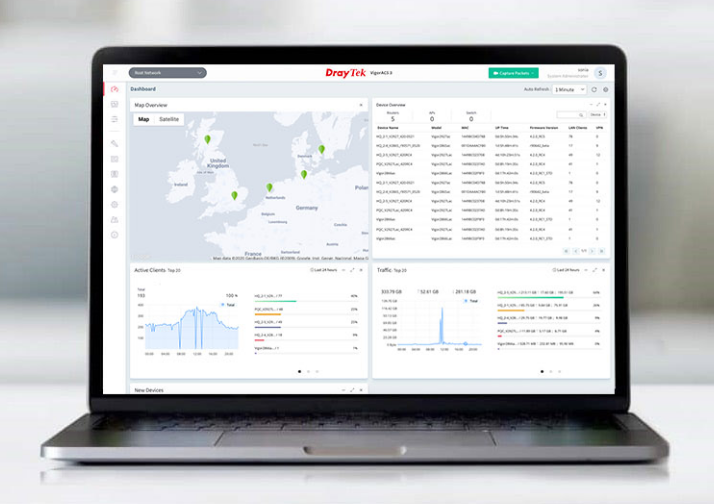

VigorACS 3 is the latest version of DrayTek’s Network Management System (NMS). It supports all current DrayTek routers, access points, and switches, providing a integrated platform for configuration, monitoring and management.
VigorACS 3 is also the core of the DrayTek SD-WAN solution. It’s the central software where Network Administrator can perform configuration, provisioning, and monitoring to the edge routers.
Key Features
Provisioning Allow new devices to set themselves up and download the latest firmware.

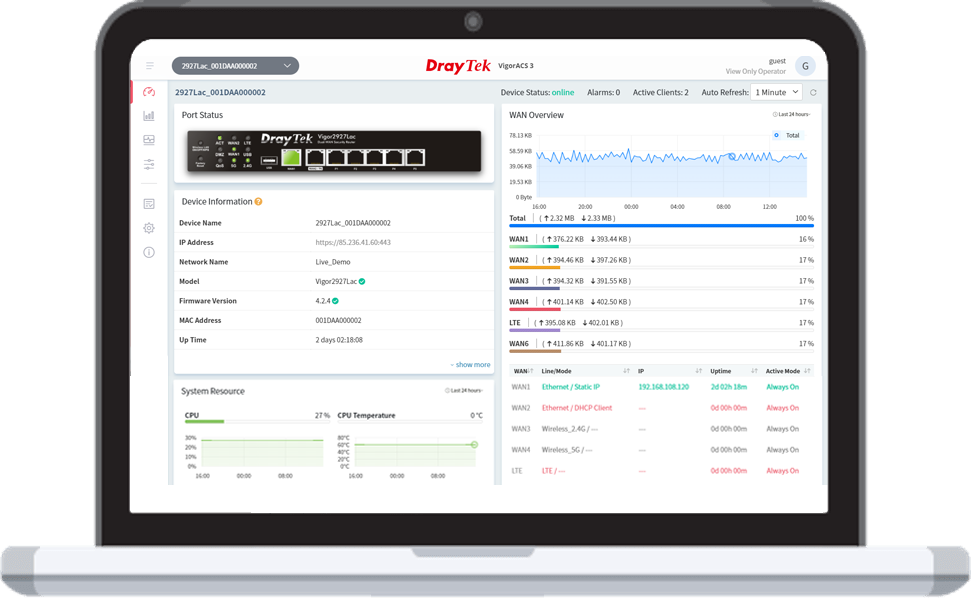

Monitoring Get notified when a device lost its WAN, VPN, or connection with the ACS server.
Statistics Network insights about device, client, and traffic over a specified period.
VPN Wizard Create an IPsec, L2TP, or SSL VPN between managed devices within a few clicks.
Scheduled Maintenance Schedule a off-hour firmware update, configuration change, or device restart
Report Generate network-based report about traffic, firmware version, device status and more.
SD-WAN Orchestrator

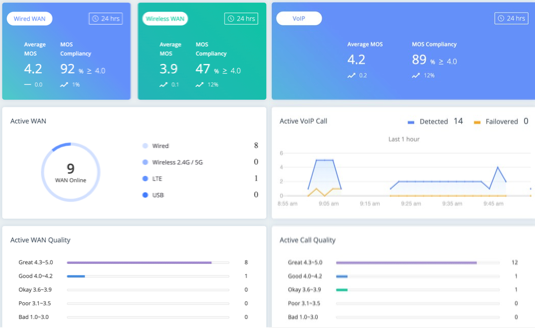

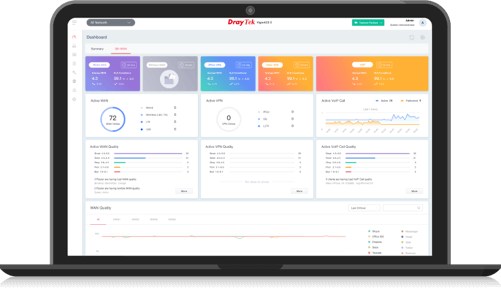

Quality-Driven Dashboard
The quality of every WAN/VPN interface is measured by latency, loss, and jitter. Quality-driven dashboard helps Network Administrator to understand the reliability of the interfaces in one glance.
VoIP MOS and SLA
Every VoIP call is also monitored by MOS, latency, loss, and jitter. With a call history list, Network Administrator can easily retrieve information for calls with poor quality.

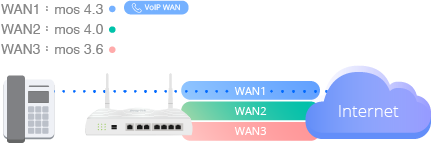

VoIP Experience Optimization
Based on the interface quality records, VigorACS 3 can adjust the metric to make sure all edge routers always use the best-quality interface for VoIP to optimize the VoIP experiences.

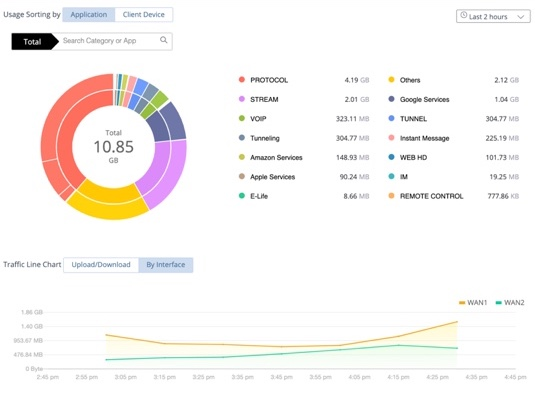

Application Visibility and SD-WAN Policy
The application visibility lets Network Administrator understand the data usage. From every single clients, via which WAN, to which application, at what time.
Based on the application visibility, Network Administrator can create SD-WAN policies to send business-critical applications through the best-quality interface to optimize the user experience.
ompatible Devices for SD-WAN
Model
Firmware Version
Vigor2865
4.2.0 or later
Vigor2865 LTE
4.2.0 or later
Vigor2866
4.3.2 or later
Vigor2866 LTE
4.3.2 or later
Vigor2927
4.2.0.1 or later
Vigor2927 LTE
4.2.0.1 or later
Vigor2962
4.3.1 or later
Vigor3910
4.3.1 or later
More about SD WAN
Client Management with Captive Portal

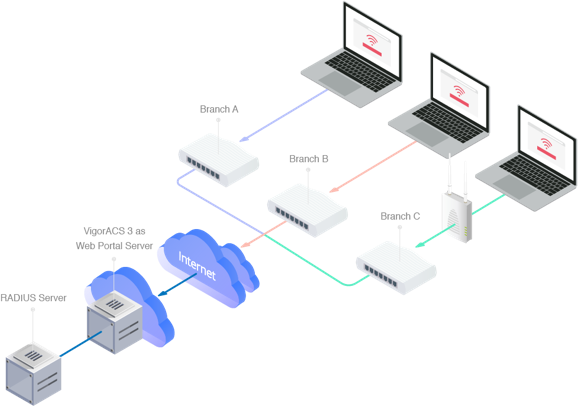

VigorACS 3 as Captive Portal Server
Many of the Vigor Router and VigorAP models support captive portal functions, that they can redirect LAN clients to VigorACS 3 to go through the hotspot login process. This function is ideal for retail, restaurants, coffee shops, and hospitality to do WiFi marketing and learn more about their clients for future marketing campaigns.

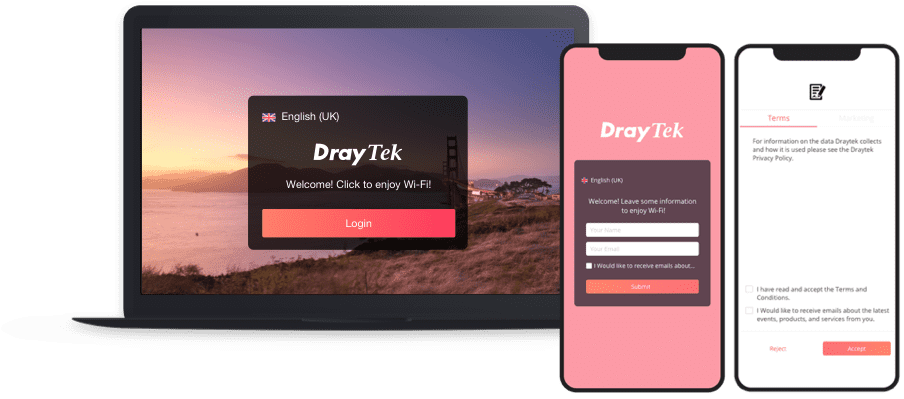

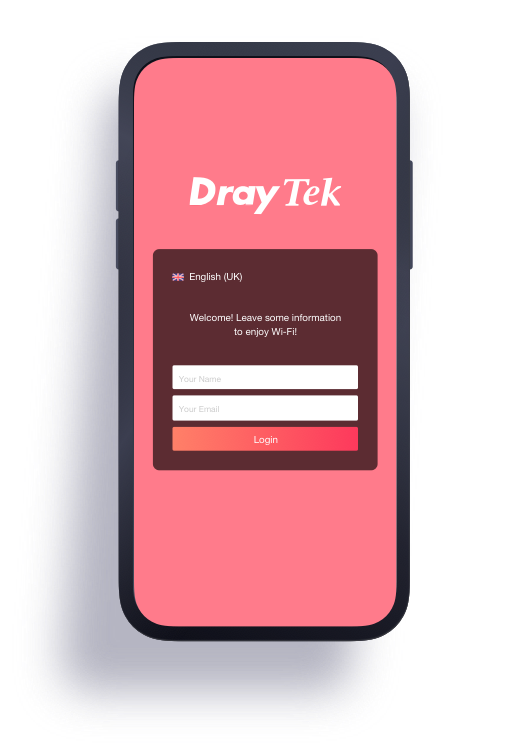

Robust Splash Page with Multilingual
Intuitively customize the splash page to meet business needs. Live preview provides a “what you see is what you get” experience of splash page editing. Supporting 20 different languages, restaurant/hospitality business owners can speak their customers’ language.
Terms and conditions and marketing terms are also available, with the option that users must click on the checkboxes or not to get Internet access. Bandwidth limit, time quota, and device management can also be applied to client devices.

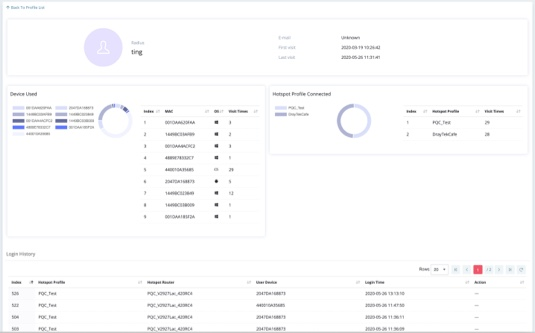

Hotspot Clients Analytics
Besides the splash page, VigorACS 3 also provides detailed analytics view, where business owners can have in-depth understanding of the new customers, the return customers, the visiting frequency and which branches have been visited…etc. Further marketing campaign can be made accordingly.
Compatible Devices for VigorACS 3 Hotspot
Model
Firmware Version
Vigor2135
4.2.1.2 or later
Vigor2762
3.8.8 or later
Vigor2765
4.0.5 or later
Vigor2766
4.3.1.2 or later
Vigor2832
3.8.7 or later
Vigor2862
3.8.9 or later
Vigor2862 LTE
3.8.9 or later
Vigor2865
4.0.5.1 or later
Vigor2865 LTE
4.0.5.1 or later
Vigor2866
4.3.2 or later
Vigor2866 LTE
4.3.2 or later
Vigor2915
4.0.5 or later
Vigor2927
4.2.0.1 or later
Vigor2927 LTE
4.2.0.1 or later
Vigor2962
3.9.3 or later
Vigor3910
3.9.2 or later
Vigor2860
Phased-out Model
Vigor2860 LTE
Phased-out Model
Vigor2925
Phased-out Model
Vigor2925 LTE
Phased-out Model
Vigor2926
Phased-out Model
Vigor2926 LTE
Phased-out Model
Vigor2952
Phased-out Model
Vigor2952P
Phased-out Model
Vigor3220
Phased-out Model
Note : For the phased-out models : As the software and hardware have stopped updating, the product is not guaranteed to operate normally.
More about Hotspot
System Requirement
Server
Operating System: 64-bit Windows (Windows 7, Windows 8, Windows 10, Windows 11) or Multiple Linux distribution (e.g., Ubuntu, SUSE, OpenSUSE, CentOS)
CPU: Intel® i5-11320H Processor with 4 Cores, 8 Threads, and 8M Caches
