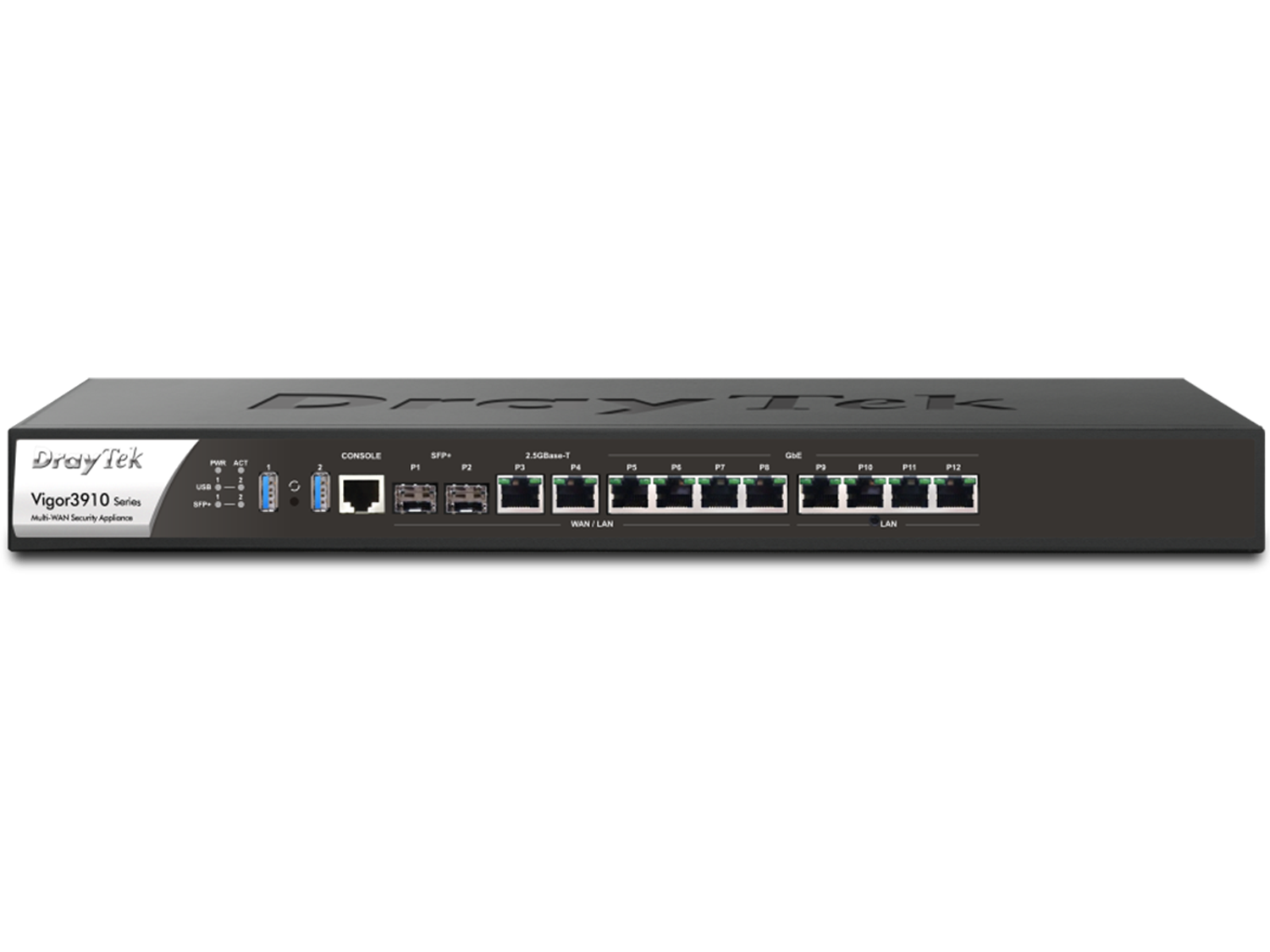

Vigor3910

Quad-Core Powerful Enterprise Gateway

Vigor3910 is capable for bandwidth demanding network. The router features
a powerful quad-core processor, eight WAN interfaces, including two 10G
SFP+ for fiber connectivity, two 2.5G Ethernet, RJ-45, and four Gigabit
Ethernet, RJ-45, gives you NAT throughput up to 9 Gbps. All of WAN ports are switchable between WAN and LAN to provide Network Administrator with the flexibility to make the most out of the router. In addition, the router has four
Gigabit Ethernet, RJ-45 as a fixed LAN interface.

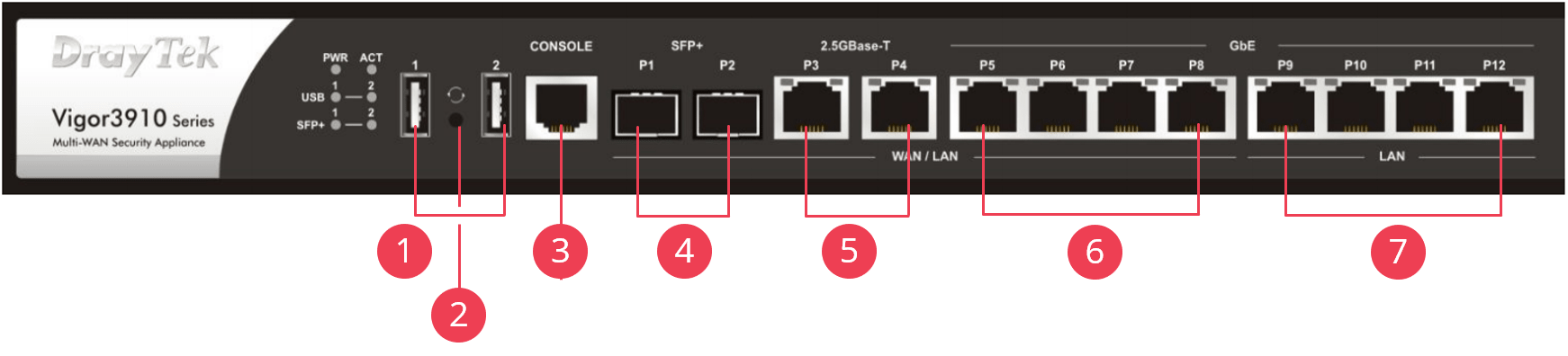

12x USB 3.0

2Factory Reset Button

3RJ-45 Console Port

42x 10G/2.5G/1G SFP+ Port*

52x 2.5G/1G/100M/10M Base-T, RJ-45*

64x 1G/100M/10M Base-T, RJ-45*

74x 1G/100M/10M Base-T, RJ-45

High Performance 10G Router

Features for The Pros

Flexible WAN/LAN Port

With 8 configurable WAN/LAN ports, including 10G SFP+, 2.5GbE, 1GbE, Vigor3910 is designed to grow with your business.

VPN Hub with High Dialing Speed

Supporting 500 concurrent VPN tunnels for branches (LAN-to-LAN) and remote workers (remote dial-in).
Dialing up 500 IPSec tunnels within 80 seconds!

Editable Plaintext Configuration File

Supporting exporting and importing editable plaintext configuration file.

Packet Capture Tool

By either mirroring all packets to designated LAN port or downloading .pcap file via WUI remotely, spotting an issue is easier than ever.

Hardware Acceleration

All sessions accelerate without sacrificing either QoS or Bandwidth Limit functionality.

Key Features

Quad-Core Processor

Offer excellent performance for bandwidth-demanding enterprise networks.

Hotspot Web Portal

Market your business and communicate with the guests while offering hospitality WLAN.

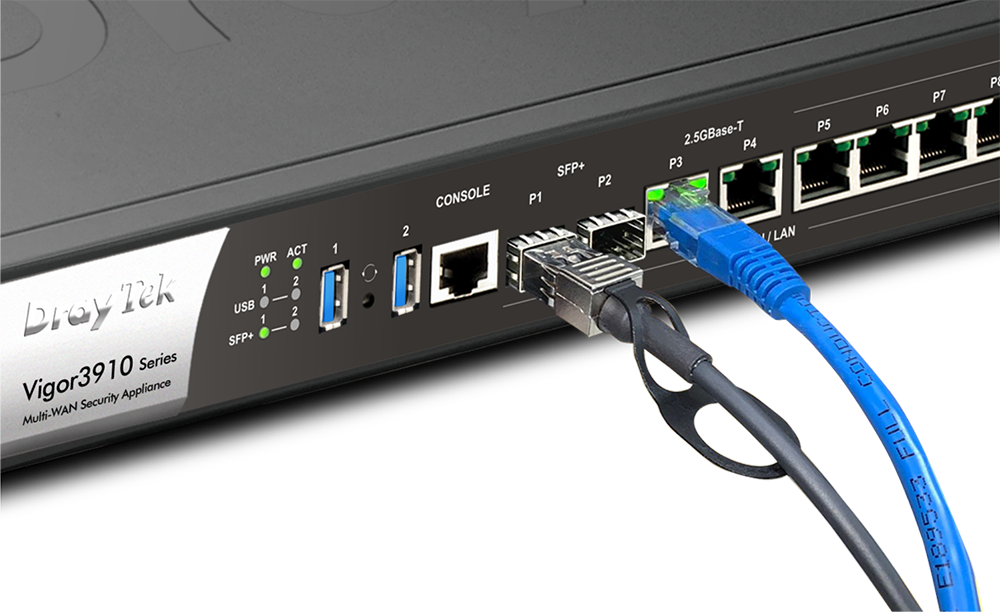

10G SFP+

Provides 2x 10G-capable fiber SFP ports for WAN or LAN connection.

Bandwidth Management

Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

Load Balancing

Maximize throughput and reliability by using multiple Internet connections.

Firewall & Content Filter

Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.

SSL VPN

The VPN works through firewalls providing secure remote access to any network environment.

DrayDDNS

The free DDNS service for you to access the router by a fixed hostname of your choice.

VPN Matcher

Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN.

Central AP Management

Use the Vigor3910 router as a wireless controller to maintain and monitor the VigorAPs.

VPN Matcher

Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN.

Central Switch Management

Set up VLAN easily from the router and get a centralized hierarchy view of the switches.

PPPoE Server

Use Point-to-Point connection on LAN to keep track of individual user's traffic.

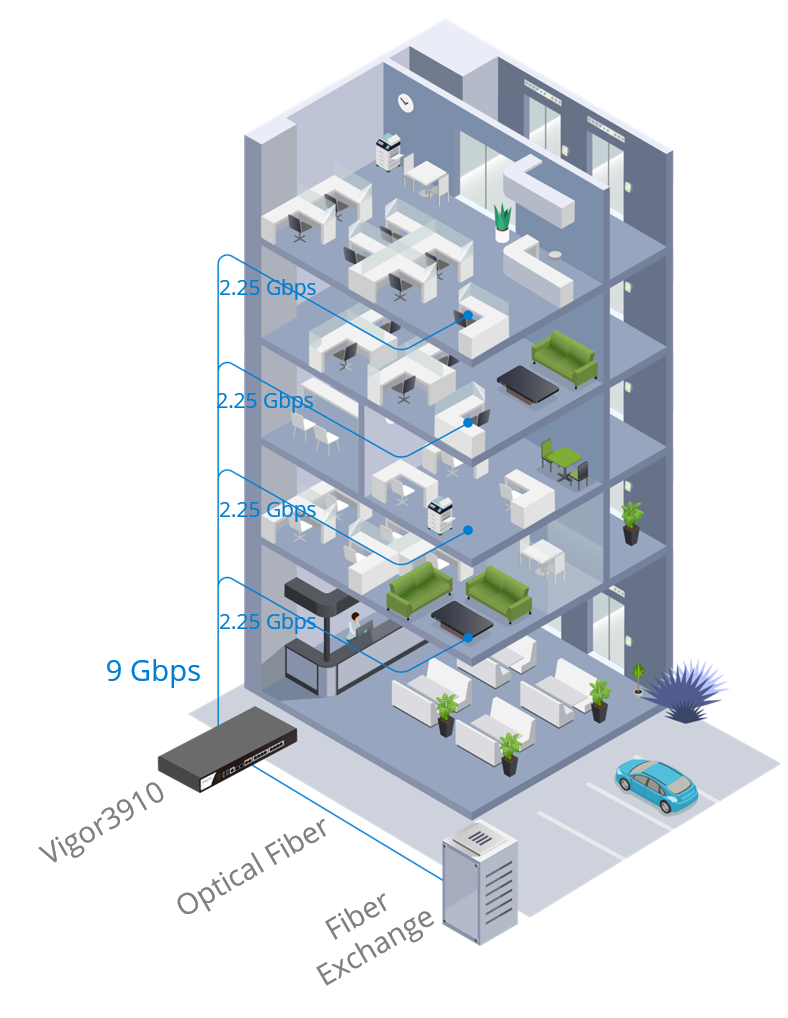

Fiber to the Building/Home

An ideal choice to work with tier 2/3 ISPs and co-working spaces

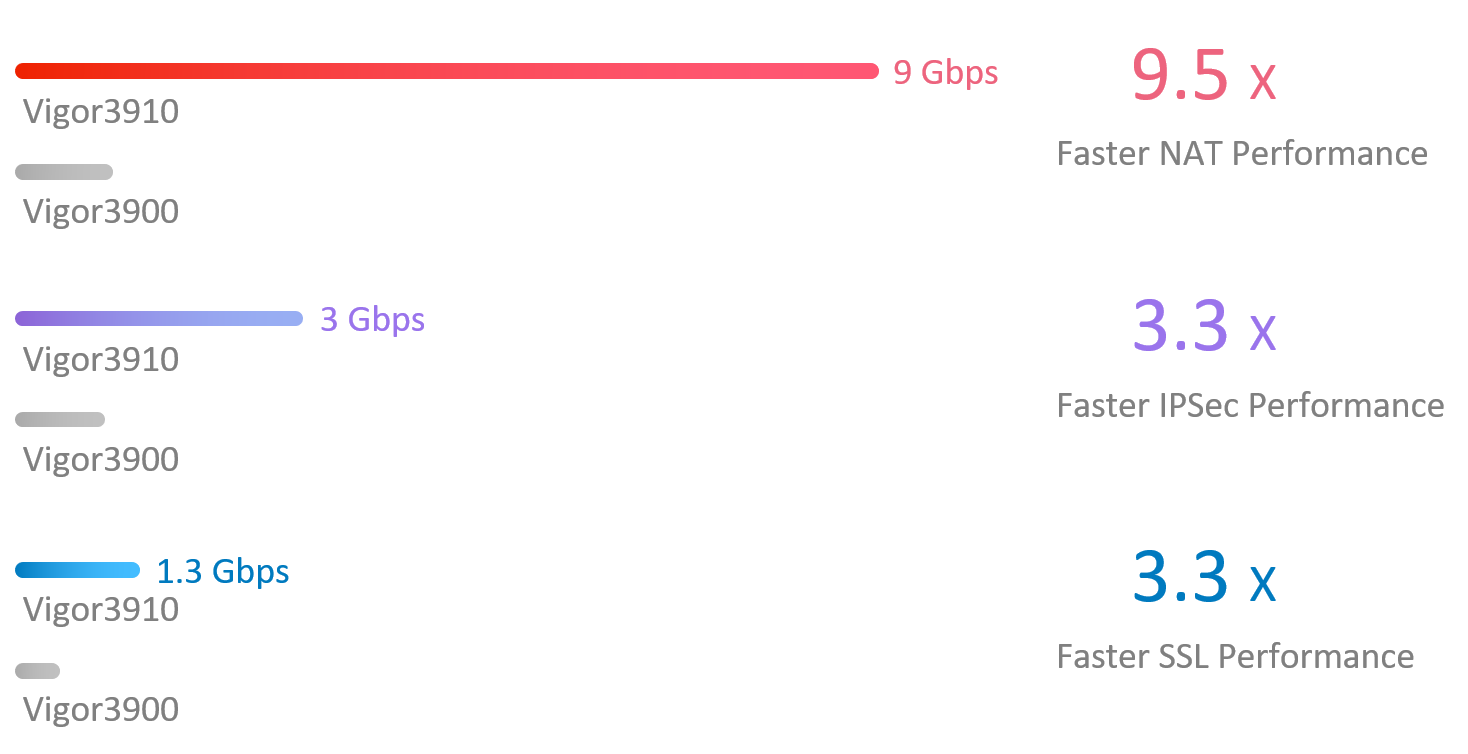

High Performance with 10G SFP+

For both NAT and routing network, and for both 10G-WAN and 10G-LAN, Vigor3910 is ready to deliver high throughput to your business.

Layer 3 Routing with BGP and OSPF

With the most popular Exterior and Interior Gateway Protocols, Vigor3910 is ideal for ISP deployment.

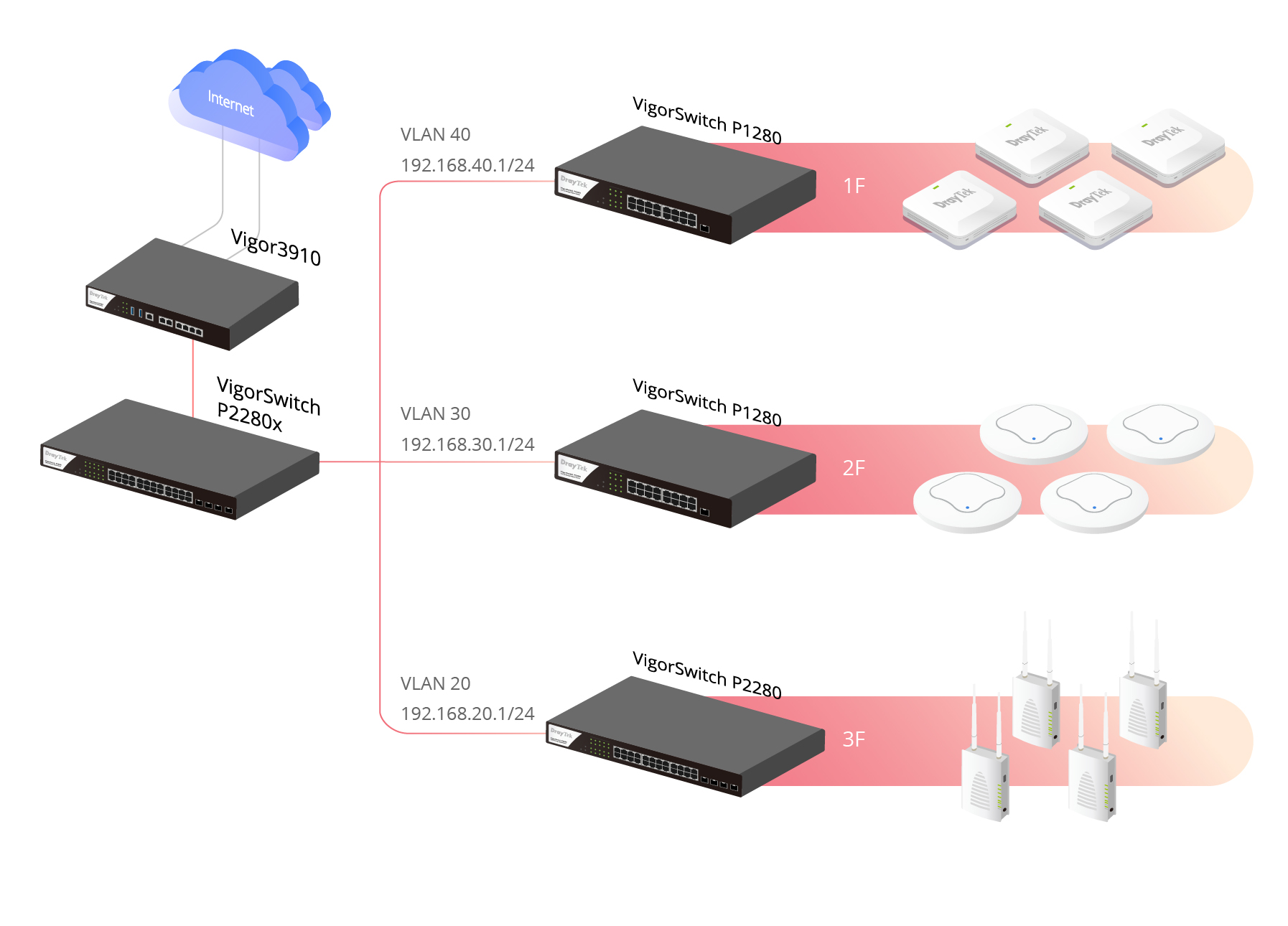

Layer 2 Security with PPPoE Server and VLAN

With 200 PPPoE user accounts and 50 VLAN/LAN subnets, Vigor3910 provides up to 9 Gbps throughput, and makes subletting network infrastructure secure and easy.

All-in-One Management

Vigor Router provides a management platform for your Vigor Devices on the LAN



Auto-Discovery

Automatically discover LAN subnets and add detected VigorSwitch/AP
into managed list.

Provisioning

Most-frequent used settings can be pre-defined on the Vigor Router,
and provision to the managed VigorSwitch/AP.

Monitoring

Vigor Router provides a centralized view of managing devices, you may
always check if the managed Vigor Switch/AP is online.

System Maintenance

Support basic maintenance remotely via Vigor Router. Such as remote reboot, factory reset, configuration backup/restore, etc.

Management Solution


All-in-One Management

Vigor Router SWM

    • Auto-Discovery
    • Provisioning
    • Monitoring
    • Centralized Hierarchy View
    • Reboot PoE Devices Remotely
    • Quick VLAN Configuration

Vigor Router APM

    • Auto-Discovery
    • Auto-Provisioning
    • Monitoring
    • Centralized View
    • Alarm
    • Reboot VigorAP Remotely
    • Wi-Fi Client Load Balancing

Software Management

VigorACS 2
  • Provisioning
  • Monitoring
  • Centralized Hierarchy View
  • Alarm
  • Reboot Vigor Devices Remotely
  • Scheduled Maintenance
  • Report

VigorACS 3

    • Zero Touch Deployment & Provisioning
    • Auto VPN
    • Interface Quality & SLA
    • VoIP Optimization & Monitoring
    • Application Visibility
    • Customized Hotspot Page with Multilingual
    • Hotspot Clients Analytics
    • ACS Server Load Balancing / Failover
