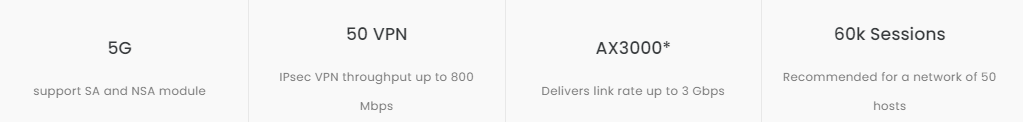

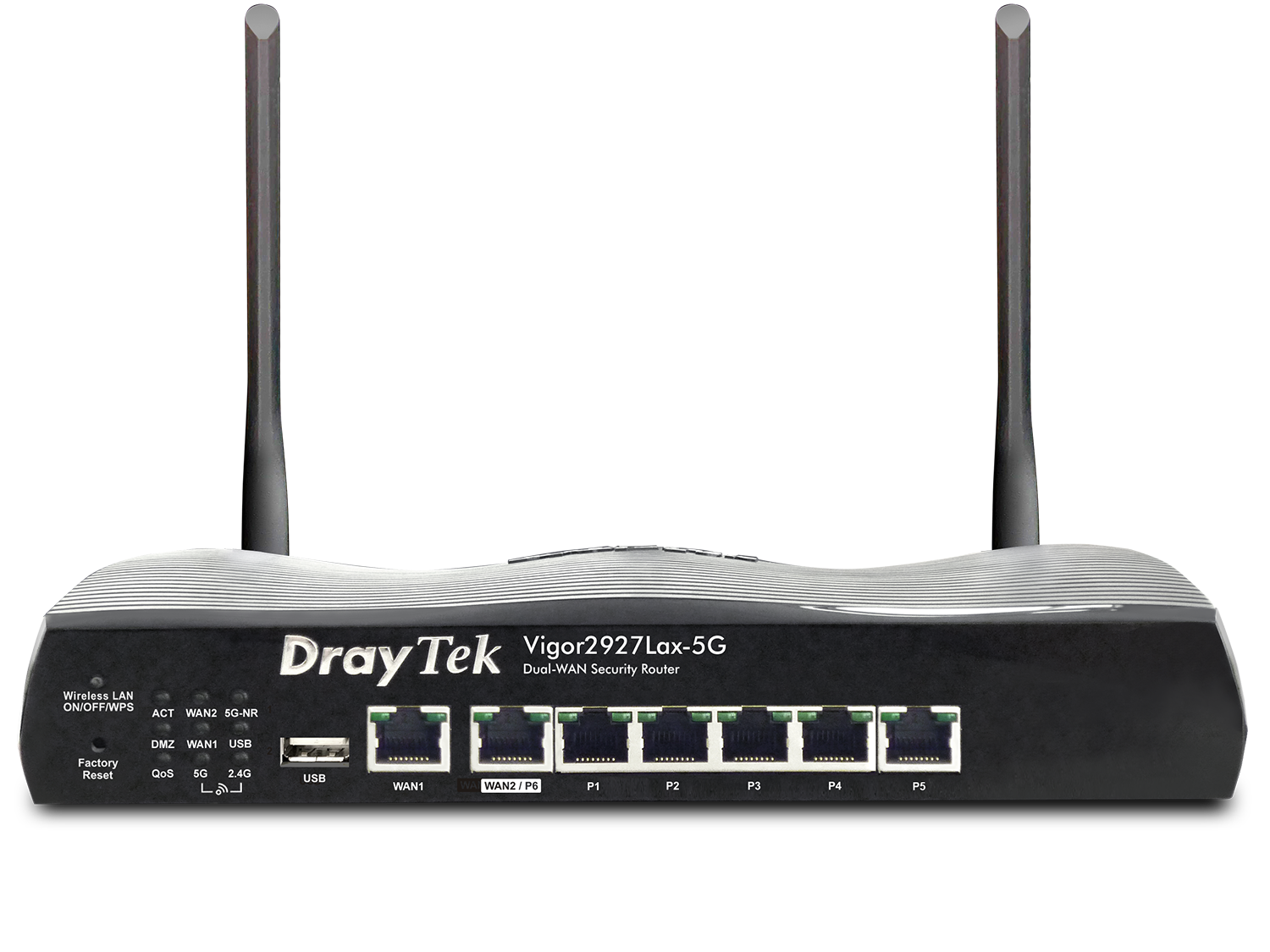

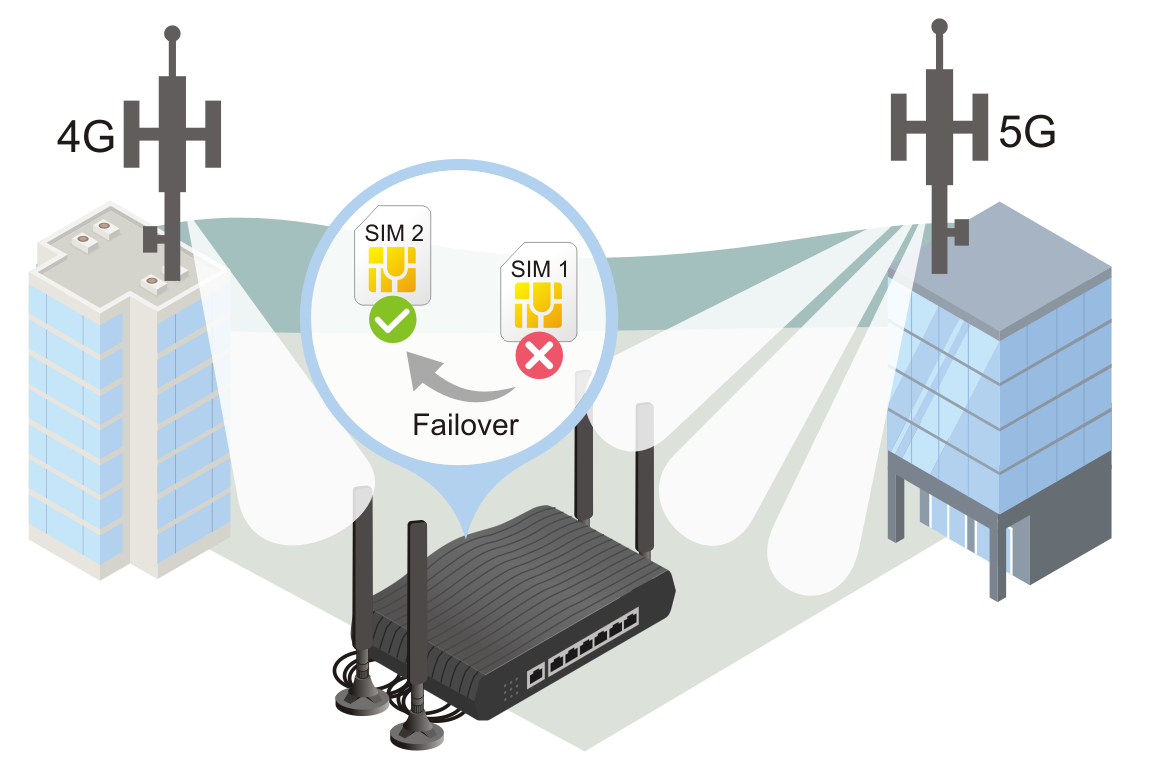

 | 5G & WiFi6 for Next-Gen ConnectivityVigor2927L-5G Series is a Dual-WAN VPN Router with embedded 5G cellular connectivity. Embedded 2 SIM slots (1 SIM online at a time) to deliver an uninterrupted cellular network connection. This 5G Router supports both SA and NSA 5G architectures, and integrate 5G LTE with Category 19. Featuring VPN, QoS, route policy, web content filtering, hotspot web portal and more. It is designed for company that require 5G higher performance with high-efficient network connectivity. The series includes built-in 802.11ax model. Download Datasheet |
*ax model only
 |  |

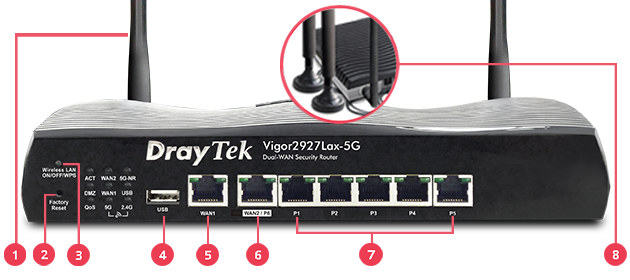

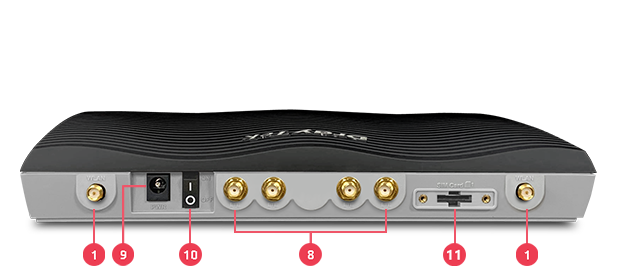

1. 2x Wireless Antenna (ax model) | 5. Fixed WAN Port: 1x GbE RJ-45 | 9. Power Input |
2. Reset Button | 6. WAN/LAN Switchable Port: 1x GbE RJ-45 | 10. Power On/Off Switch |
3. WLAN/WPS Button (ax model) | 7. Fixed LAN Port: 5x GbE RJ-45 | 11. 2x Nano-Sized SIM Slot |
4. 1x USB 2.0 | 8. 4x LTE Antenna |
 | Embedded SIM SlotProvide 4G LTE/5G Internet access to where fixed lines are (temporarily) not available without the need for a USB dongle. |  | Bandwidth ManagementPrevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings. |
 | Load BalancingMaximize throughput and reliability by using multiple Internet connections. |  | Hotspot Web PortalMarket your business and communicate with the guests while offering hospitality WLAN. |
 | VPN (Virtual Private Network)Build a secure and private tunnel from the LAN of Vigor2927L-5G Series to the remote offices and teleworkers over the Internet. |  | DrayDDNSThe free DDNS service for you to access the router by a fixed hostname of your choice. |
 | SSL VPNThe VPN works through firewalls providing secure remote access to any network environment. |  | Central AP ManagementUse the Vigor2927L-5G Series router as a wireless controller to maintain and monitor the VigorAPs. |
 | VPN MatcherHelps routers behind NAT to find each other and establish a LAN-to-LAN VPN |  | WiFi 6 (ax model only)Feature OFDMA and MU-MIMO technology to improve WiFi efficiency and deliver higher wireless speed. |
 | Firewall & Content FilterFilter web pages by URL keyword or web category to block access to insecure or inappropriate contents. |  | Mesh (Wireless model only)Easily link to other VigorAP to expand the wireless network. |
 | VoIP FriendlyVigor2927L-5G Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless. |  | Central Switch ManagementSet up VLAN easily from the router and get a centralized hierarchy view of the switches. |
|  |
Market your business when providing free WiFi.
WiFi MarketingRedirect the hotspot guests to the company homepage, online surveys, or display promotion message. Grow Your Email ListRequire the guest to leave contact info or social media accounts before they can use the Internet service. | Various Authentication TypeA variety of login methods are supported to meet your business need, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS. 3rd-Party Service CompliantSupports external captive portal authentication. You can keep using the WiFi marketing solution you like. Quota ManagementBandwidth management is integrated into Hotspot to control the bandwidth and session usage of the Hotspot guests. |

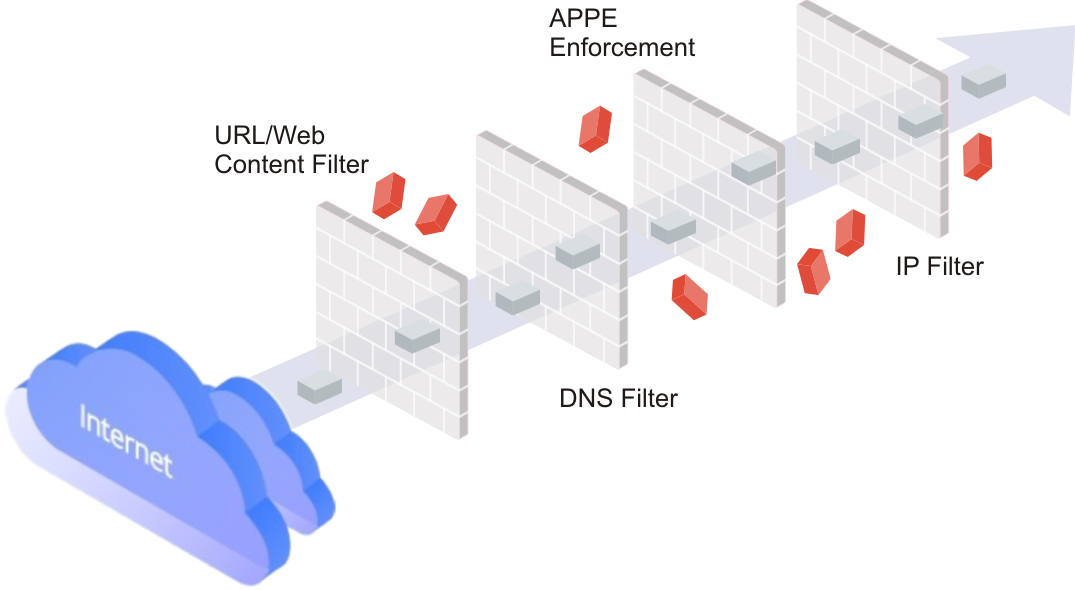

Object-based FirewallGroup IPs and Services by Object before applying to Firewall rules. Easy to organize the network activities. Manage Traffics not only from LAN to WANDrayTek's Firewall can manage traffic between LAN subnets, remote VPN subnets, and the traffic from WAN to the Vigor Router itself! Pre-defining the Internet IPs that can access Vigor Router's service is possible. Web Content Filtering with DNS FilterWeb Content Filtering Service uses cloud-based technology, 82 categories in total, 10 of which are security-focused, providing comprehensive and up-to-date protection to LAN client during their online activities. | Blocking Apps & DoH serversAPP Enforcement (APPE) can easily block applications (IM/P2P/Stream/Tunneling, etc.) on a LAN network with a few clicks. Blocking DoH servers in the browsers can force the LAN clients to use the standard DNS query to make the DNS Filtering work. |

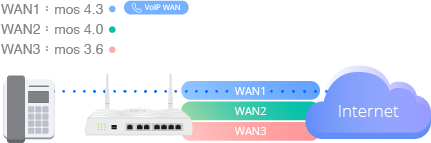

Edge Router for SD-WANThe quality of every WAN/VPN interface is measured by latency, loss, and jitter. Based on the interface quality records, Vigor2927L-5G can adjust the metric to use the best-quality interface for VoIP and business critical apps. |  |

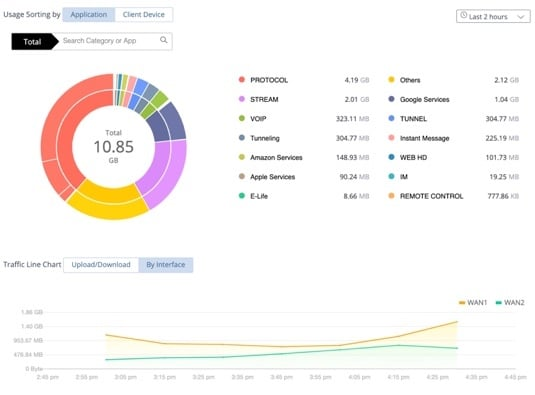

 | Application Visibility and SD-WAN PolicyThe application visibility lets Network Administrator understand the data usage. From every single clients, via which WAN, to which application, at what time. Based on the application visibility, Network Administrator can create SD-WAN policies to send business-critical applications through the best-quality interface to optimize the user experience. |

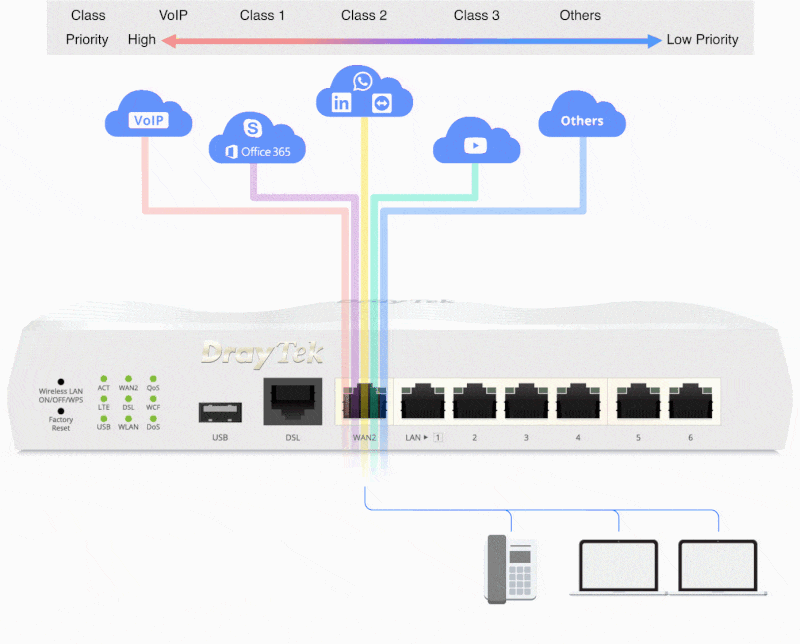

VoIP FirstVoIP is always with top priority! With default UDP 5060 port (configurable), VoIP QoS is out-of-box ready. Improve Experience for Business-Critical AppsSelect your business critical apps, and easily put them into QoS classes. Flexible Bandwidth AllocationBandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available. |  |

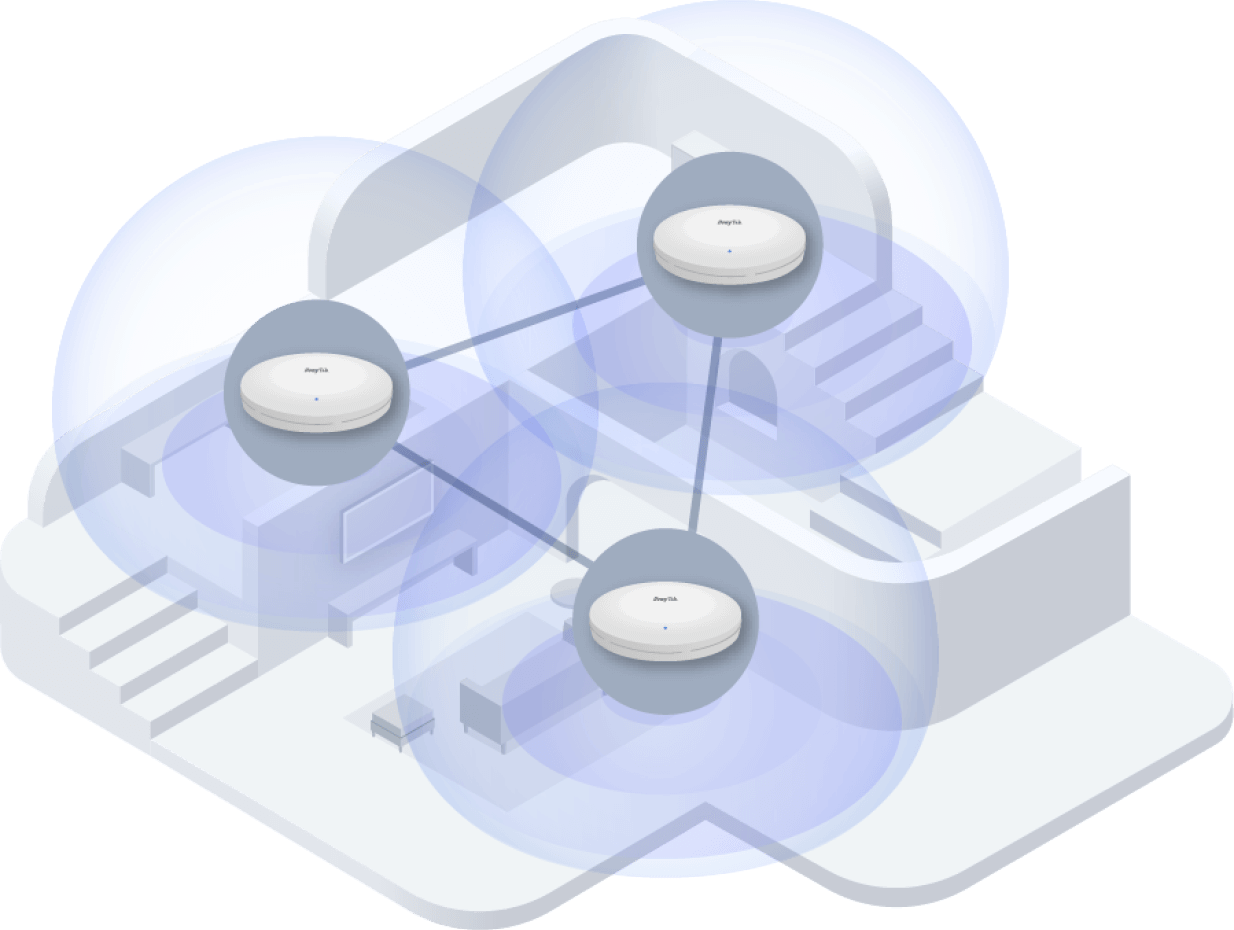

 | Mesh (ax model)Discovery, Provisioning, Monitoring, Centralized Hierarchy View |

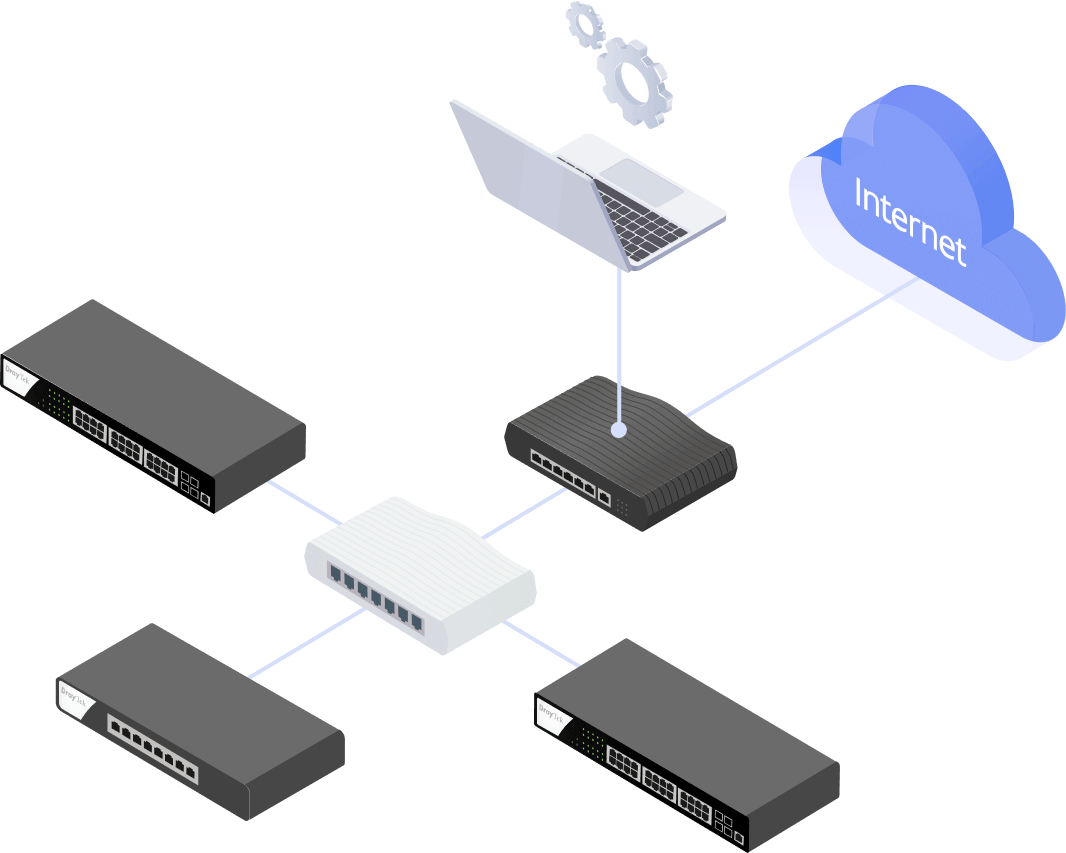

Vigor Router SWMAuto-Discovery, Provisioning, Monitoring, Centralized Hierarchy View, Reboot PoE Devices Remotely, Quick VLAN Configuration |  |

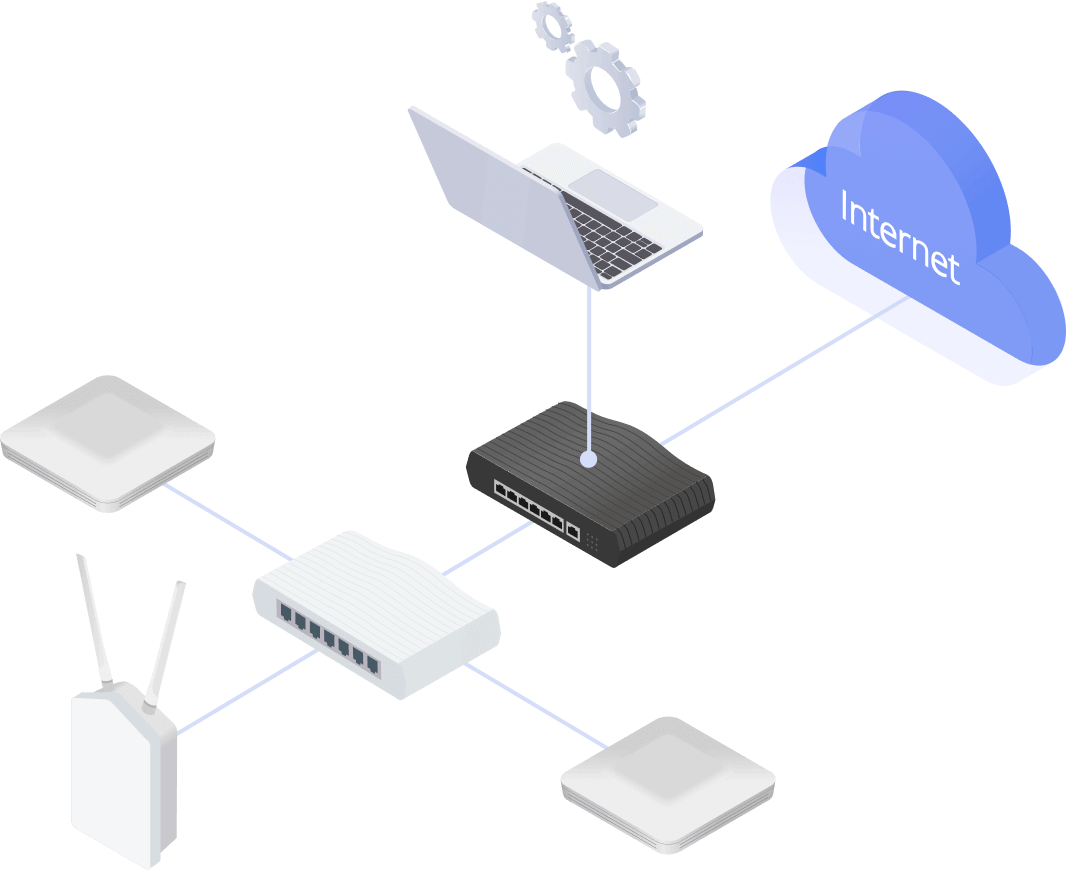

 | Vigor Router APMAuto-Discovery, Provisioning, Monitoring, Centralized View, Alarm, Reboot VigorAP Remotely, Wi-Fi Client Load Balancing |

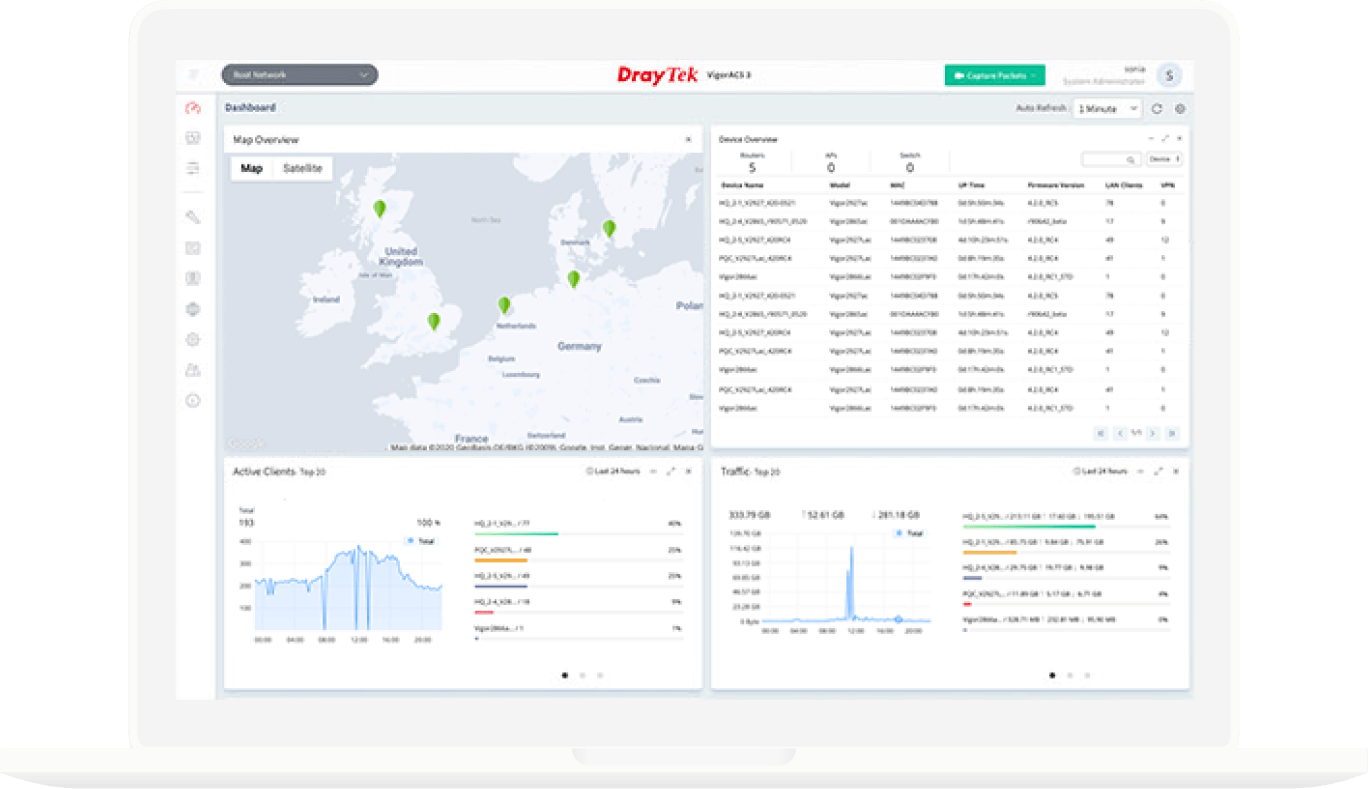

VigorACS3
|  |
