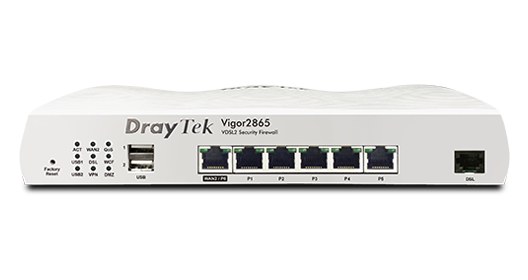

Vigor2865 Series

VDSL2 35b Modem Router for SMBs

Vigor2865 Series is a VDSL2 35b/ADSL2+ Security Firewall router integrating a DSL
modem which is compatible with variants of ADSL and VDSL, including profile
35b supervectoring. There is also a Gigabit Ethernet WAN port for broadband
connections to share the traffic load or serve as a failover connection. 3G/4G/ LTE

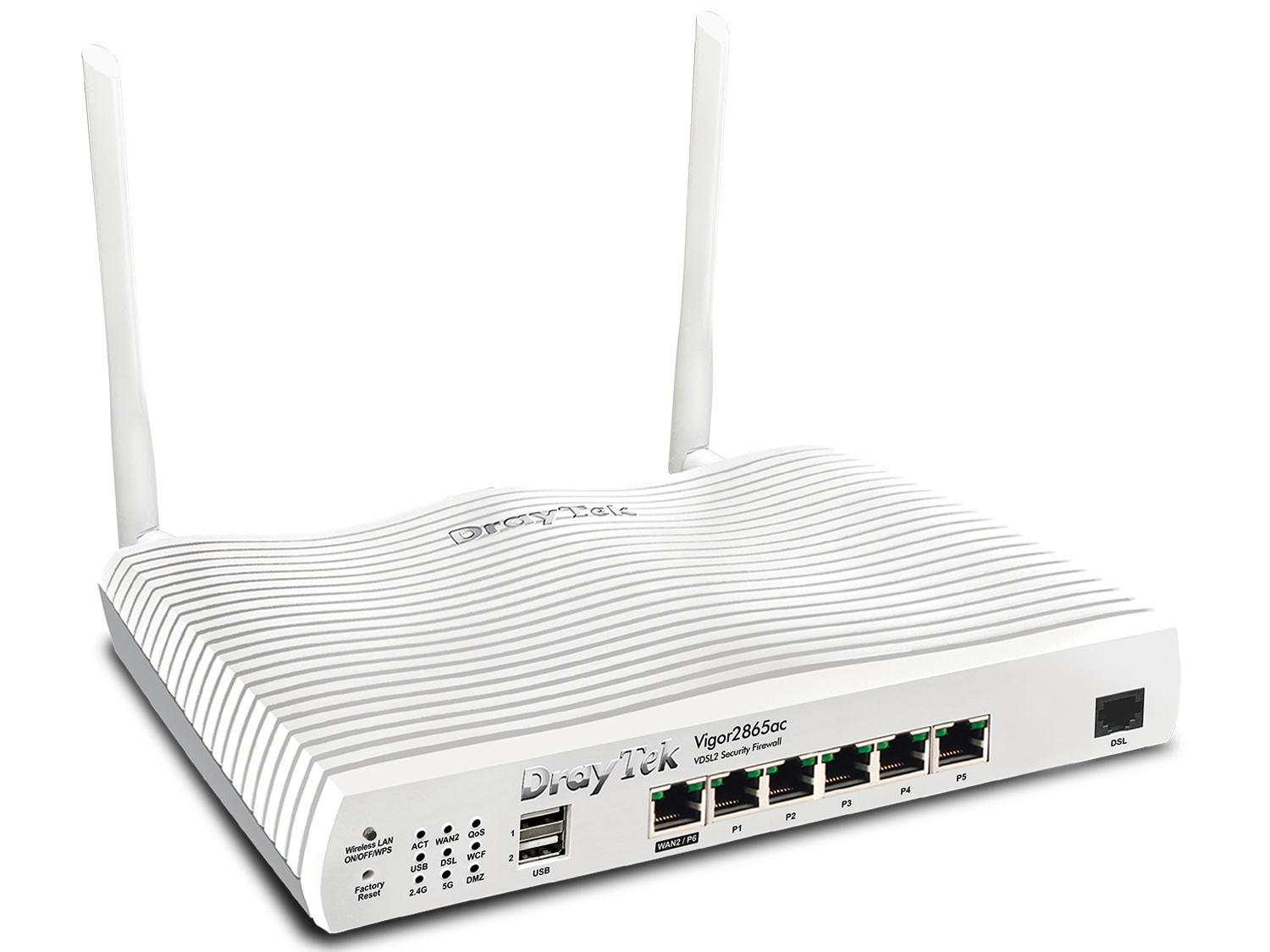

USB modem can also be attached to the USB ports of the router. The 2865 LTE series includes models with built-in 802.11ac Wave 2 WiFi, 802.11ax WiFi, and VoIP gateway.

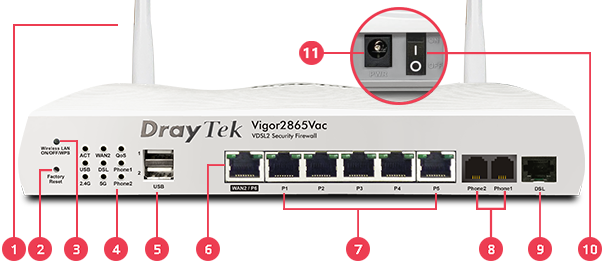

1. Wireless Antenna (ac/ax model)

2. Reset Button

3. WLAN/WPS Button (ac/ax model)

4. LED Indicator

5. 2x USB 2.0

6. LAN/WAN Switchable Port: 1x GbE RJ-45

7. Fixed LAN Port: 5x GbE RJ-45

8. 2x FXS for VoIP (V model)

9. Fixed WAN Port: 1x RJ-11 for VDSL2 35b/ADSL2+

10. Power On/Off Switch

11. Power Input

Key Features

	Hotspot Web Portal Market your business and communicate with the guests while offering hospitality WLAN.		Load Balancing Maximize throughput and reliability by using multiple Internet connections.

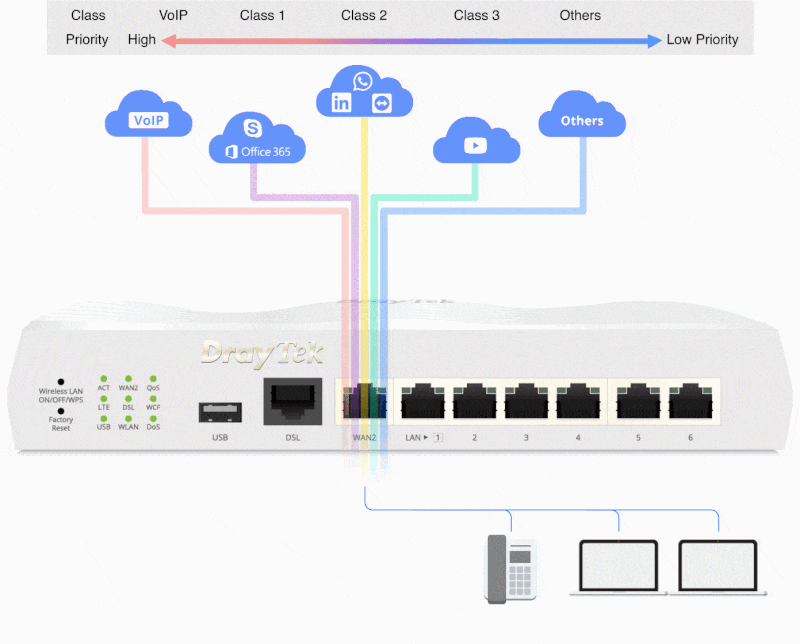

	Bandwidth Management Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.		35b Supervectoring Modem Integrated VDSL modem, supporting VDSL2 profile 35b supervectoring.
	VoIP Friendly Vigor2865 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless.		VPN (Virtual Private Network) Build a secure and private tunnel from the LAN of Vigor2865 Series to the remote offices and teleworkers over the Internet.
	Central AP Management Use the Vigor2865 Series router as a wireless controller to maintain and monitor the VigorAPs.		SSL VPN The VPN works through firewalls providing secure remote access to any network environment.

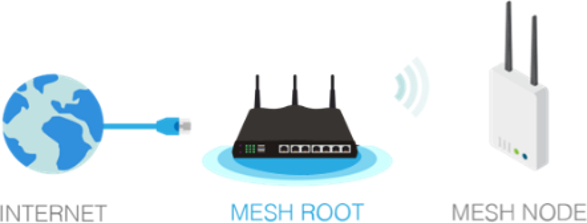

	Mesh (Wireless model only) Easily link to other VigorAP to expand the wireless network.		Firewall & Content Filter Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
	Central Switch Management Set up VLAN easily from the router and get a centralized hierarchy view of the switches.		DrayDDNS The free DDNS service for you to access the router by a fixed hostname of your choice.
			Wireless WAN (ac model only) Get Internet access wirelessly from a wireless network, a mobile hotspot, or a personal hotspot set up on smartphones.

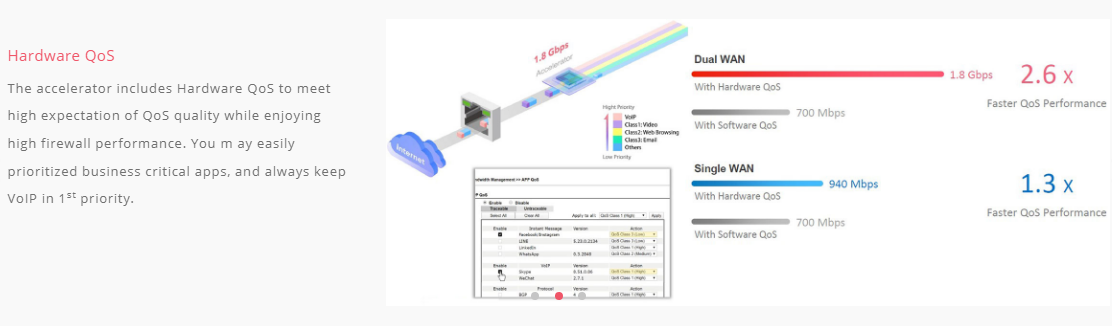

Hardware Acceleration

Without sacrificing traffic control features, such as QoS, Bandwidth Limit, WAN Budget, Traffic Graph, Data Flow Monitor, the accelerator brings great performance.
