Vigor2135 Series

www.alvasta-tech.com / Enterprises / DrayTeK / Router / All Routers / Vigor2135 Series /

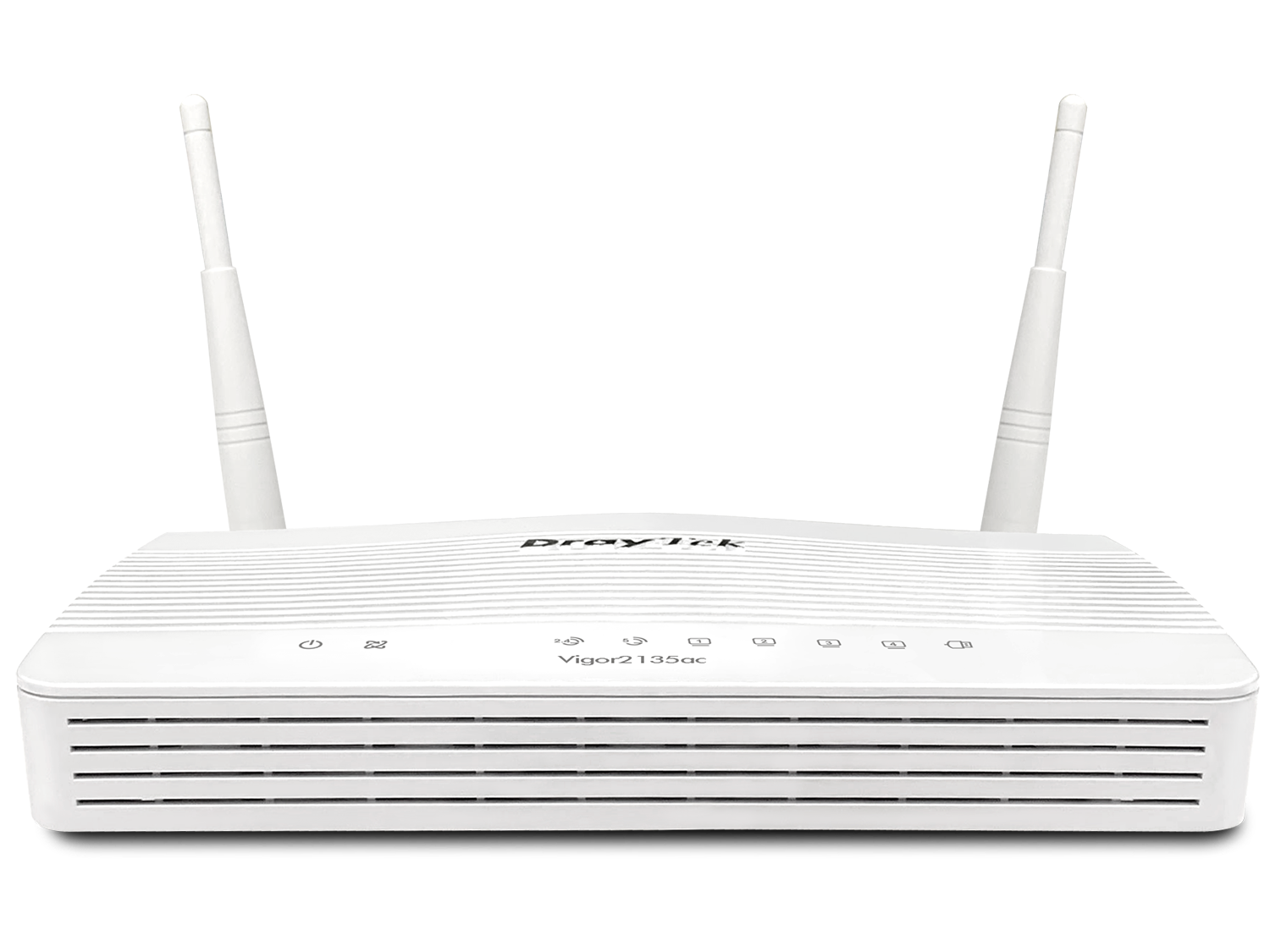

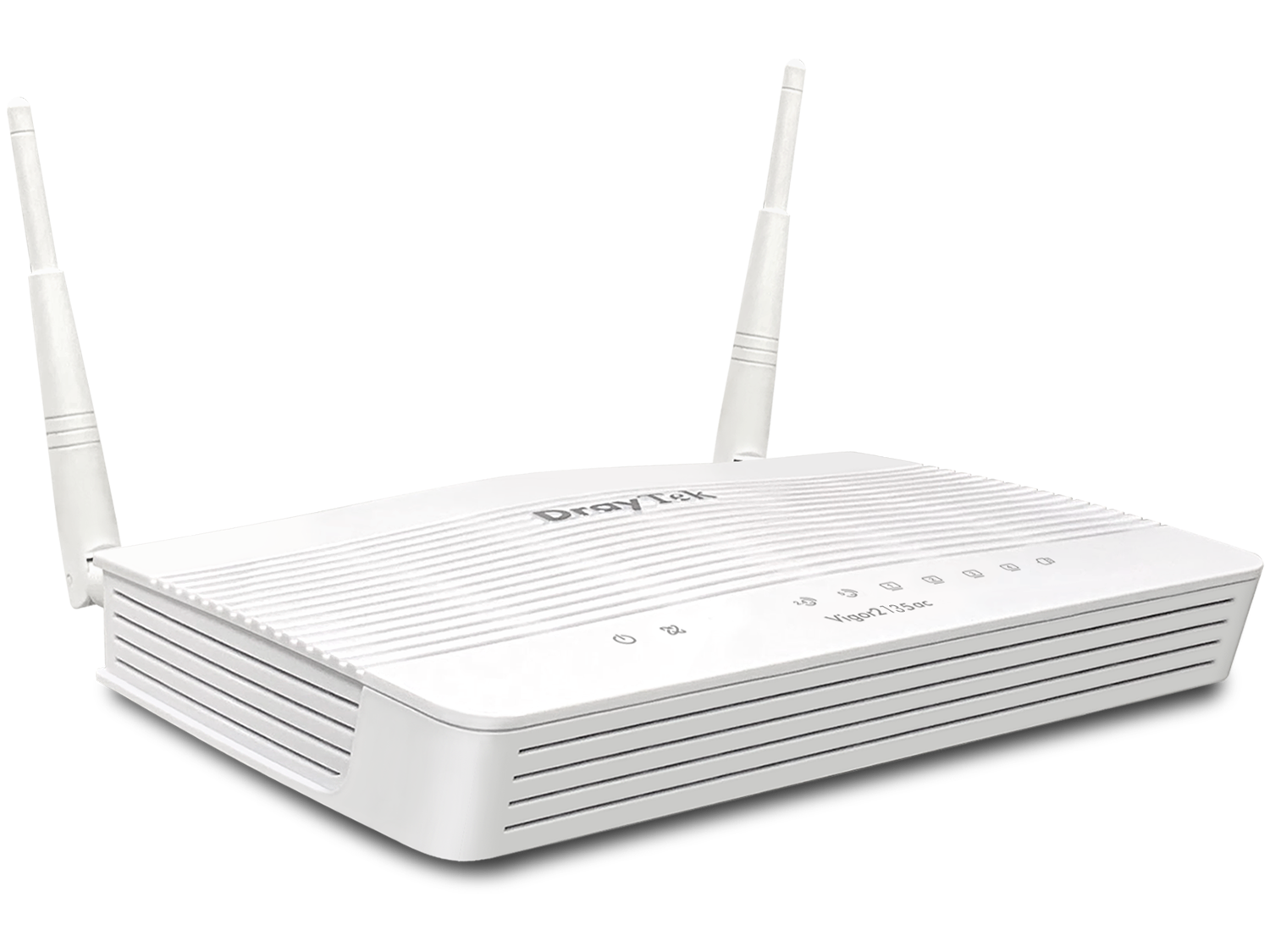

Vigor2135 Series

Hardware NAT Router for Professionals

Vigor2135 Series is a broadband firewall and a VPN router. With hardware accelerator, it delivers
up to 940 Mbps performance without sacrificing bandwidth control features. It’s also equipped
with business-grade features, including web content filtering, Route Policy, App-based QoS and
lots more, and is perfect for professional smart homes/SOHO users who would like to take full
control of their own network. The series includes models with built-in 11ac Wave 2 wireless standard and fiber WAN.

Key Features

	VPN (Virtual Private Network) Build a secure and private tunnel from the LAN of Vigor2135 Series to the remote offices and teleworkers over the Internet.		Firewall & Content Filter Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
	SSL VPN The VPN works through firewalls providing secure remote access to any network environment.		Hotspot Web Portal Market your business and communicate with the guests while offering hospitality WLAN.
	VPN Matcher Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN.		DrayDDNS The free DDNS service for you to access the router by a fixed hostname of your choice.
	VoIP Friendly Vigor2135 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless.		Central AP Management Use the Vigor2135 Series router as a wireless controller to maintain and monitor the VigorAPs.
	Bandwidth Management Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.		Mesh (Wireless model only) Easily link to other VigorAP to expand the wireless network.

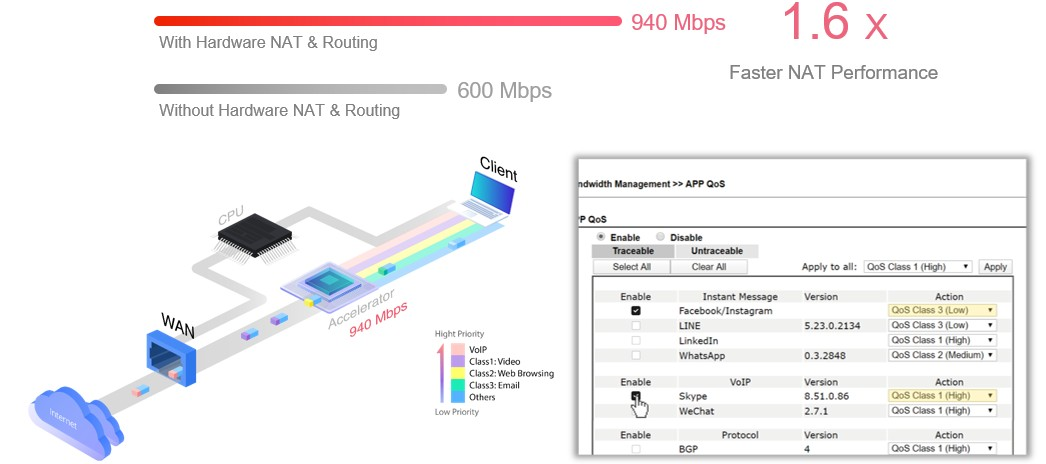

Hardware NAT & Routing with Hardware QoS

The accelerator supports up to 4k NAT and routing connections. With acceleration enabled, Vigor2135’s firewall performance can reach 940Mbps, while still meeting high expectation of QoS quality. You may easily prioritized business critical apps, and always keep VoIP in 1st priority.

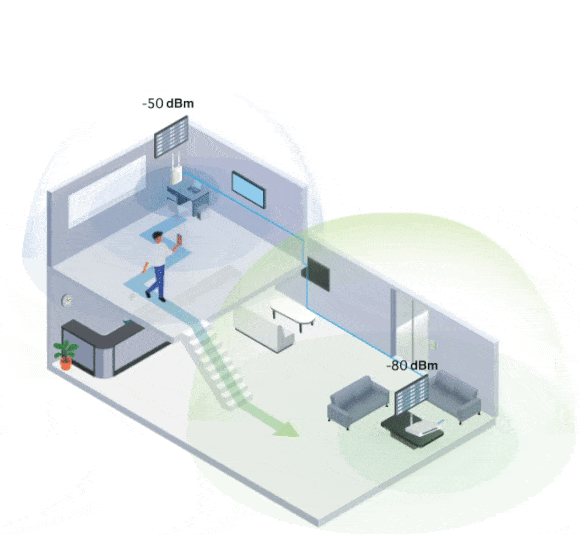

AP-assisted Roaming

Making Transmission Effective

Disassociate the Wireless clients who are out of the effective transmission
range defined by custom Basic Rate or/and RSSI threshold, and force them
to pick up another access point with a stronger signal.

Resource Saving

Proactively kick out the clients with a low basic rate or low RSSI can prevent
the access points trying to do ineffective transmission but saving the airtime,
which will results in better WLAN experience for all.

No Controller Required

Assisted Roaming is a feature built in all Vigor Access Points and selected Wireless
routers. They operate without a wireless controller, providing an ideal solution for
simple network deployment.

Stronger Signal Guaranteed

By using the "Minimum RSSI with Adjacent AP" option, the AP/Router on the same
local subnet will exchange client information with each other, providing the choice
to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby.

Hotspot Web Portal

Market your business while offering free WLAN

WLAN Marketing

Redirect the hotspot guests to the company homepage, online surveys, or display promotion message.

Grow Your Email List

Require the guest to leave contact info or social media accounts before they can use the Internet service.

Various Authentication Type

A variety of login methods are supported to meet your business need, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS.

3rd-Party Service Compliant

Supports external captive portal authentication. You can keep using the WLAN marketing solution you like.

Quota Management

Bandwidth management is integrated into Hotspot to control the bandwidth and session usage of the Hotspot guests.

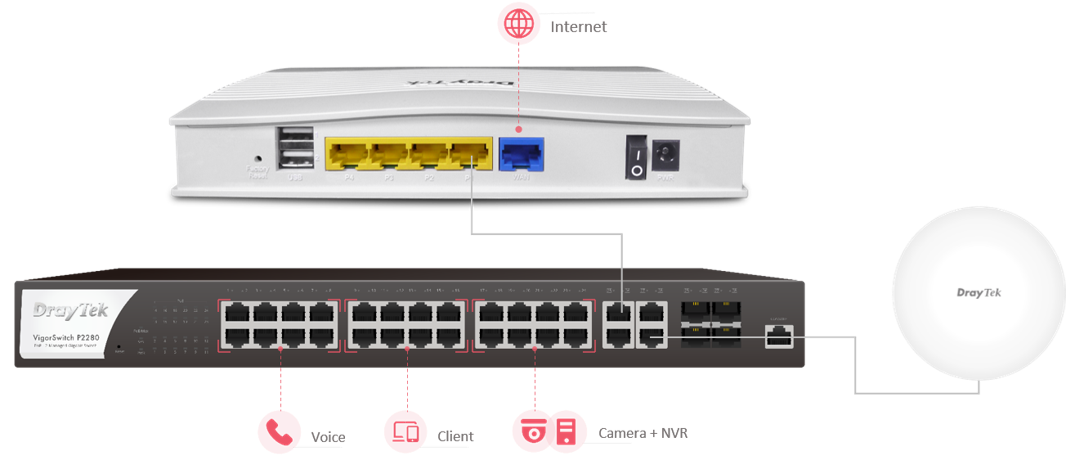

LAN Management

An all-in-one management platform for Vigor devices on the LAN side.

Automatic Device Discovery

All you need is connect the Vigor Switch/AP to the LAN side of the router, Vigor Router will then discover the devices to be managed.

Provisioning

Basic settings may be done on the Vigor Router, and provision to the managed VigorAP.

Monitoring

Vigor Router provides a centralized view of managing devices, you may always check if the managed VigorAP is online.

System Maintenance

You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the Vigor Router. There’s no need to log in to each device’s management page.
