 | 4K HDMI Optical Receiver (4K@300m (K1, MM) / 10km (K2, SM)) Features and Benefits
Download Datasheet |

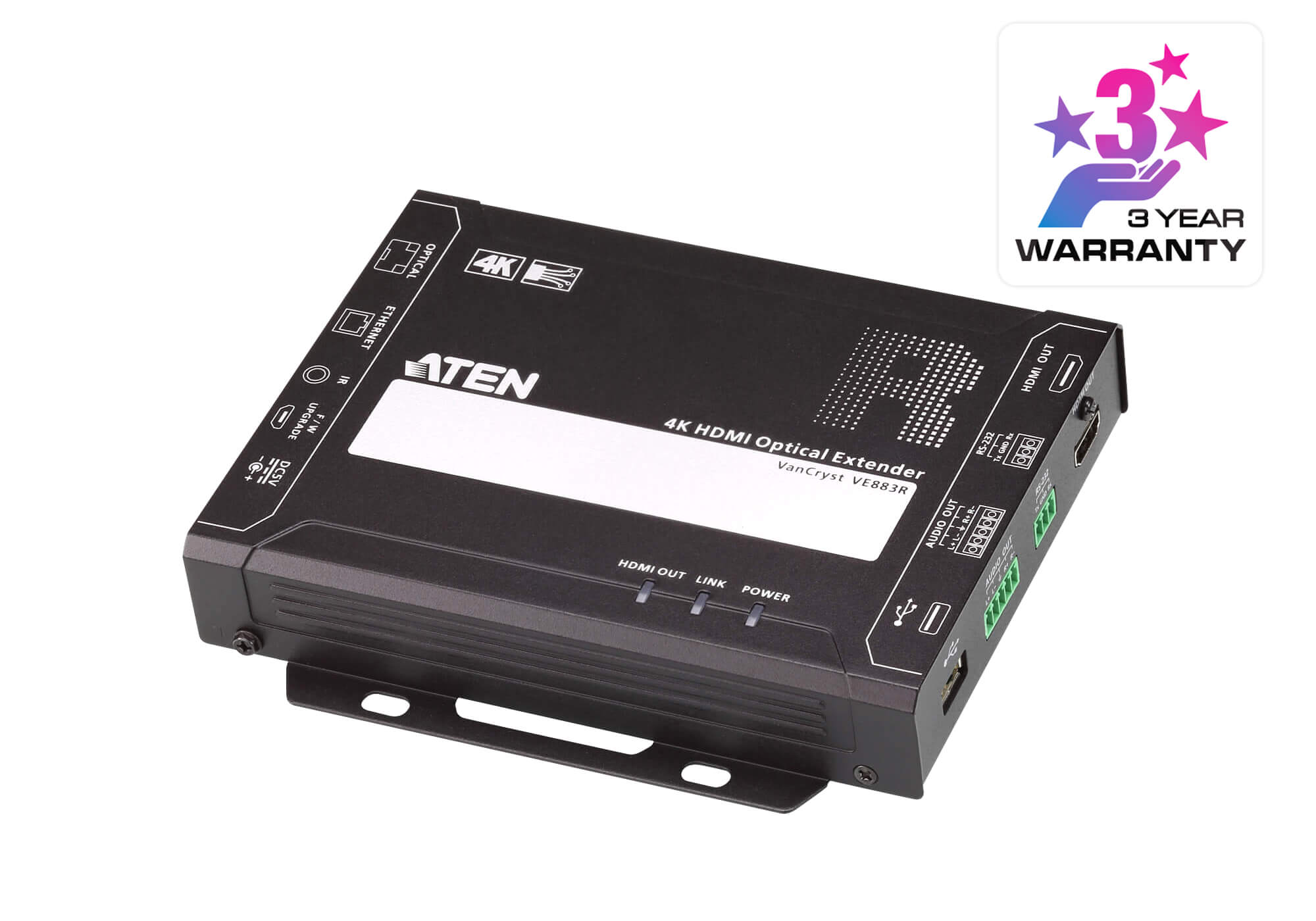

The VE883R is a fiber-based receiver designed to extend uncompressed 4K signal up to 300 m (using VE883RK1) or 10 km (using VE883RK2) over duplex fiber optic cables. The VE883R meets HDMI Specifications, including 3D, Deep Color (up to 12 bit), and signaling rates (up to 10.2 Gb) to ensure superior video quality. With ATEN’s exclusive FarSmooth technology, the VE883R prevents lagging and freezing by matching the output rates to the input rates and ensures the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required. The VE883R features an HDMI output, analog audio output, USB2.0, IR, RS-232 control port, and a Gigabit Ethernet port. For point-to-point extension, the VE883R can receive fiber optic cables by inserting SFP+ modules to its optic port.
To avoid bulky cable setup, the VE883R guarantees a simple and fast solution for optimum transmission of Ethernet, IR, HDMI, RS-232, and USB signals up to 10 km simply via a set of duplex optic fiber. The VE883R is also USB transparent, making it compatible with a wide range of USB peripherals.
Spesifications
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | Up to 10 m |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible |
| Max. Resolution | 4096x2160/3840x2160@60Hz (4:2:0); 4096x2160/3840x2160@30Hz (4:4:4) |
| Max. Distance | 1 x SFP Module (*Note) VE883RK1: up to 300m (MM, OM3, Black) VE883RK2: up to 10km (SM, Blue) |
| Audio | |
| Input | N/A |
| Output | 1 x Terminal Block, 5 pole (Green) |
| Connectors | |
| Unit To Unit | 1 x bi-directional SFP (LC) |
| Firmware Upgrade | 1 x Micro USB (Type B) Female (Black) |
| Power | 1 x DC Jack with locking |
| Fiber Optics | |
| Data Rate | 10.3 Gbps |
| Wavelength | VE883RK1: 850 nm VE883RK2: 1310 nm |
| Fiber Type | VE883RK1: Multimode(MM), OM3, LC Duplex Type VE883RK2: Singlemode(SM), LC Duplex Type |
| Control | |
| USB Channel | 1 x USB Type A Female (White) |
| RS-232 Channel | 1 x Terminal Block, 3 pole (Green) |
| IR Channel | 1 x Mini Stereo Jack Female (Black); 30~56 KHz full range transmission |
| Ethernet Channel | 1 x RJ45 Female |
| LEDs | |
| Power | 1 (Green) |
| Link | 1 (Orange) |
| Video Output | 1 (Orange) |
| Power Consumption | DC5V:6.77W:42BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.64 kg ( 1.41 lb ) |
| Dimensions (L x W x H) with bracket | 16.94 x 14.69 x 3.00 cm (6.67 x 5.78 x 1.18 in.) |
| Dimensions (L x W x H) without bracket | 16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.) |
| Carton Lot | 5 pcs |
| Note | 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Single Mode fibers that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications; Use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11. |
