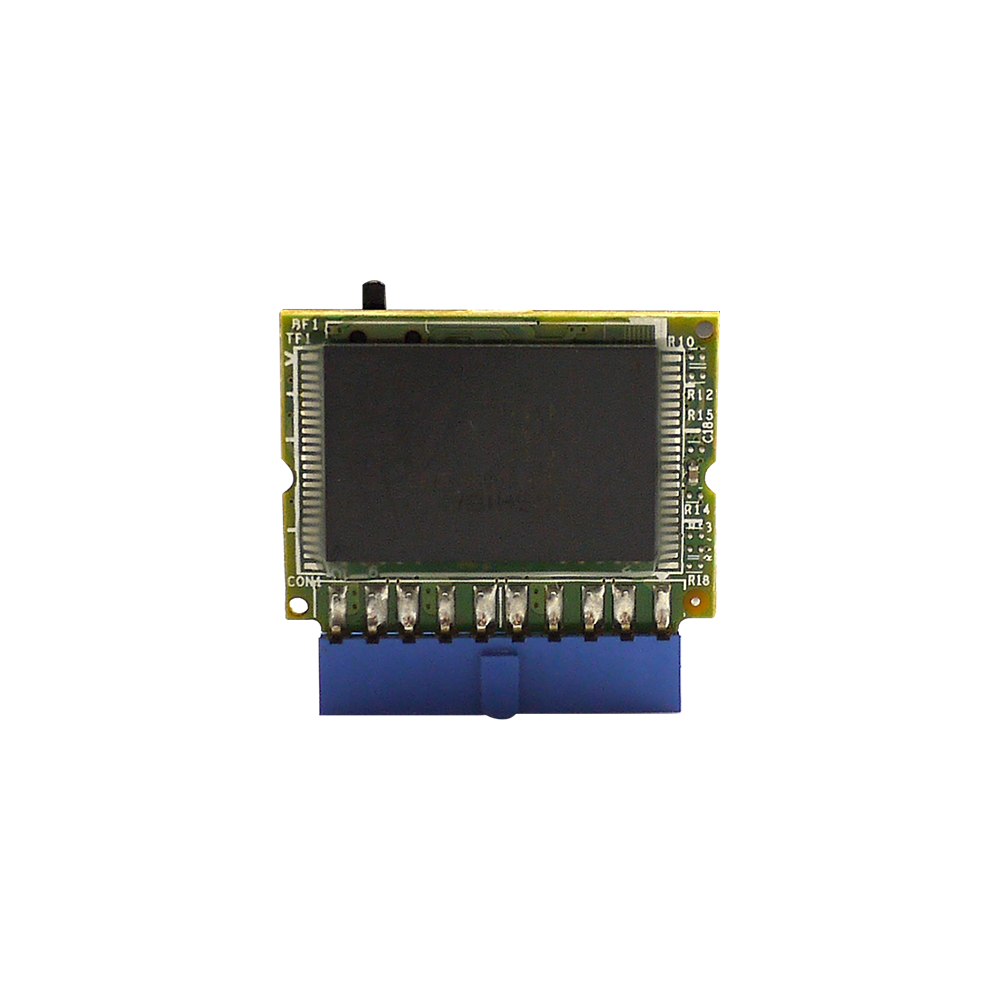

USB EDC Vertical 3ME

USB / USB EDC

8GB ~ 64GB

Features

High performance with USB 3.0 interface
Low power consumption
Wear Leveling supported
ECC engine with correction capability up to 60-bit / 1024 bytes
Provide ST and WT solutions
Pin pitch 2.00mm

BORN FOR SUPERIOR PERFORMANCE

The Innodisk USB EDC Vertical products provide high capacity USB Flash memory storage that electrically complies with High-speed USB 3.0 interface. The device features attractive small form factor and the connectivity over USB 3.0 and the NAND Flash architecture provide a faster data transmission.

SPECIFICATIONS

Model Name	USB EDC Vertical 3ME
Flash Type	MLC
Interface	USB 3.0
Form Factor	USB EDC Vertical
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	100 / 50
P/E Cycle	3,000
TBW (Max.)	172
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.6 W
Max. Channels	1
External DRAM Buffer	N
Features	H/W Write Protect
Dimension (W x L x H/mm)	24.0 x 22.0 x 5.0
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEUV1-08GI61BC1SC	DEUA1-08GI61BW1SC
16GB	DEUV1-16GI61BC1SC	DEUV1-16GI61BW1SC
32GB	DEUV1-32GI61BC1SC	DEUV1-32GI61BW1SC
64GB	DEUV1-64GI61BC1SC	DEUV1-64GI61BW1SC
