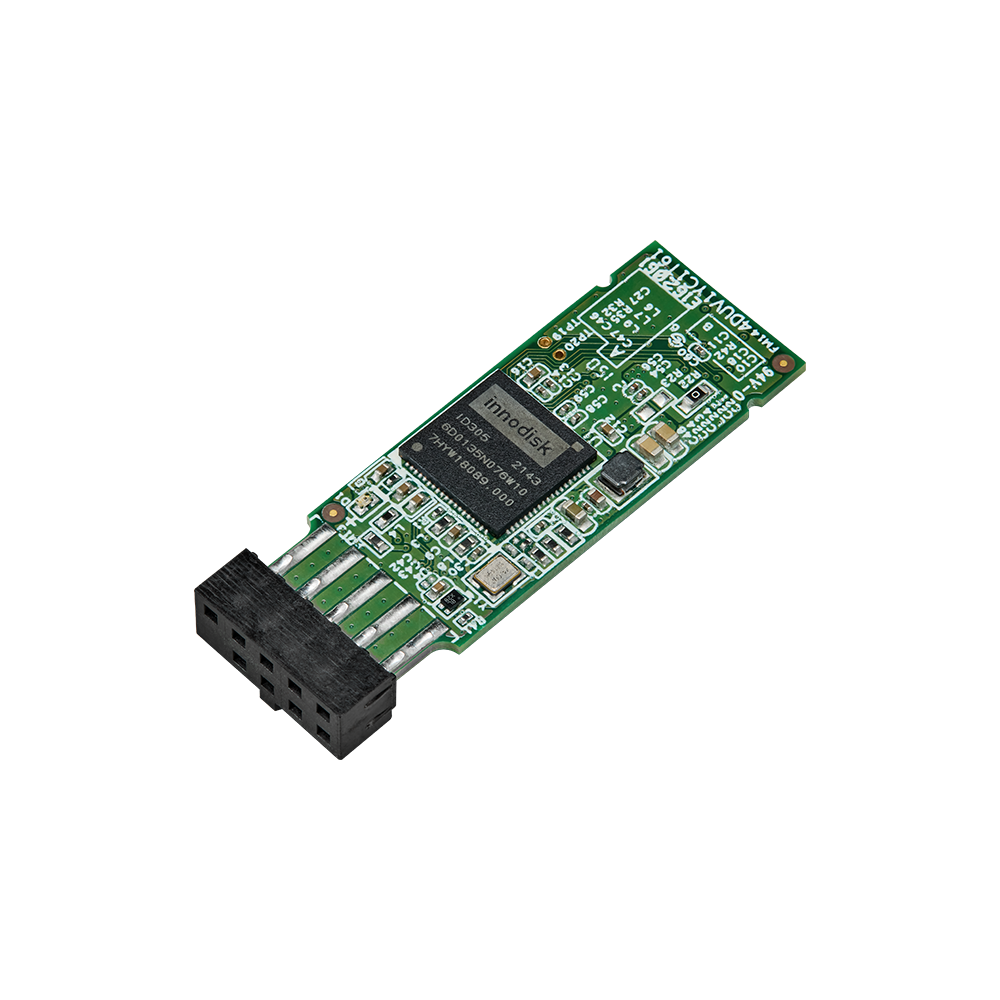

USB EDC Vertical 2SE2

USB / USB EDC

512MB ~ 16GB

Features

High performance with USB 2.0 interface
Wear Leveling supported
Low power consumption
ECC capability up to 72-bit / 1024 bytes
Pin pitch 2.54mm
Mounting hole supported

BORN FOR SUPERIOR PERFORMANCE

The Innodisk USB EDC (Embedded Disk Card) products provide high capacity USB Flash memory storage that electrically complies with High-speed USB 2.0 interface & backward compatible with USB 1.1. The device features attractive small form factor and the connectivity over USB 2.0 and the NAND Flash architecture provide a faster data transmission.

SPECIFICATIONS

Model Name	USB EDC Vertical 2SE2
Flash Type	SLC
Interface	USB 2.0
Form Factor	USB EDC Vertical
Capacity	512MB ~ 16GB
Sequential R / W (MB/sec, max.)	30 / 30
P/E Cycle	60,000
TBW (Max.)	864
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.54W
Max. Channels	1
External DRAM Buffer	N
Features	S.M.A.R.T.
Dimension (W x L x H/mm)	13.0 x 32.95 x 6.0
Vibration	5G@[7 ~ 2000Hz]
Shock	50G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
512MB	DEUV1-512DQ1AC1SB	DEUV1-512DQ1AW1SB
1GB	DEUV1-01GDQ1AC1SB	DEUV1-01GDQ1AW1SB
2GB	DEUV1-02GDQ1AC1SB	EUV1-02GDQ1AW1SB
4GB	DEUV1-04GDQ1AC1SB	DEUV1-04GDQ1AW1SB
8GB	DEUV1-08GDQ1AC1SB	DEUV1-08GDQ1AW1SB
16GB	DEUV1-16GDQ1AC1SB	DEUV1-16GDQ1AW1SB

For more information, please contact our support.
