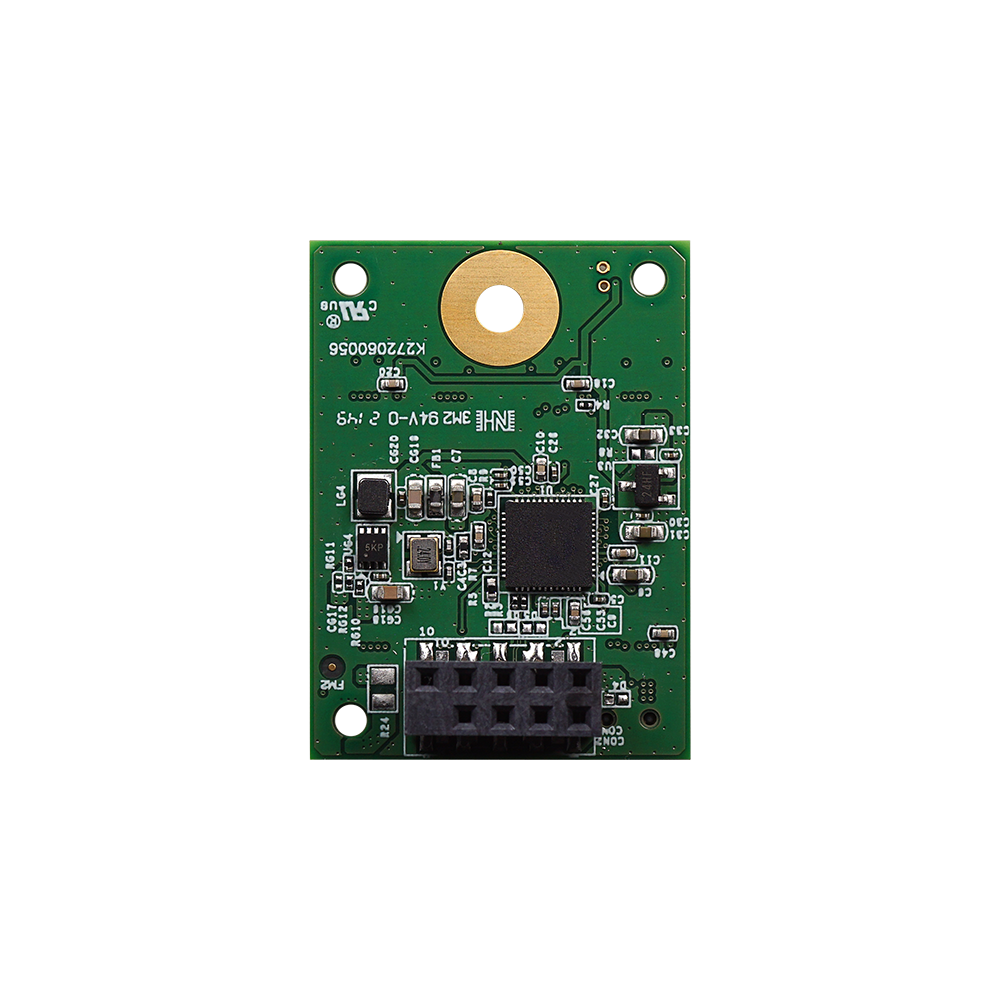

USB EDC Horizontal 2ME3

USB / USB EDC

8GB ~ 128GB

Features

High performance with USB 2.0 interface
Wear Leveling supported
Low power consumption
ECC capability up to 72bit / 1024 Bytes
Pin pitch 2.54mm / 2.00mm
Mounting hole supported
Supports wide temperature from -40°C to 85°C

BORN FOR SUPERIOR PERFORMANCE

The Innodisk USB EDC (Embedded Disk Card) products provide high capacity USB Flash memory storage that electrically complies with USB 2.0. The device features attractive small form factor and the connectivity over USB 2.0 and the NAND Flash architecture provide a faster data transmission.

SPECIFICATIONS

Model Name	USB EDC Horizontal 2ME3
Flash Type	MLC
Interface	USB 2.0
Form Factor	USB EDC Horizontal
Capacity	8GB ~ 128GB
Sequential R / W (MB/sec, max.)	35 / 35
P/E Cycle	3,000
TBW (Max.)	345
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.66W
Max. Channels	1
External DRAM Buffer	N
Features	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	Pin Pitch 2.00 : 26.6 x 36.9 x 6.36 Pin Pitch 2.54 : 26.6 x 36.9 x 9.85
Vibration	5G@[7 ~ 2000Hz]
Shock	50G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEUH%-08GI61BC1SC	DEUH%-08GI61BW1SC
16GB	DEUH%-16GI61BC1SC	DEUH%-16GI61BW1SC
32GB	DEUH%-32GI61BC1SC	DEUH%-32GI61BW1SC
64GB	DEUH%-64G I61BC1SC	DEUH%-64GI61BW1SC
128GB	DEUH%-A28I61BC1SC	DEUH%-A28I61BW1SC

%. 1 : pin pitch = 2.54mm / 2 : pin pitch = 2.00mm

For more information, please contact our support.
