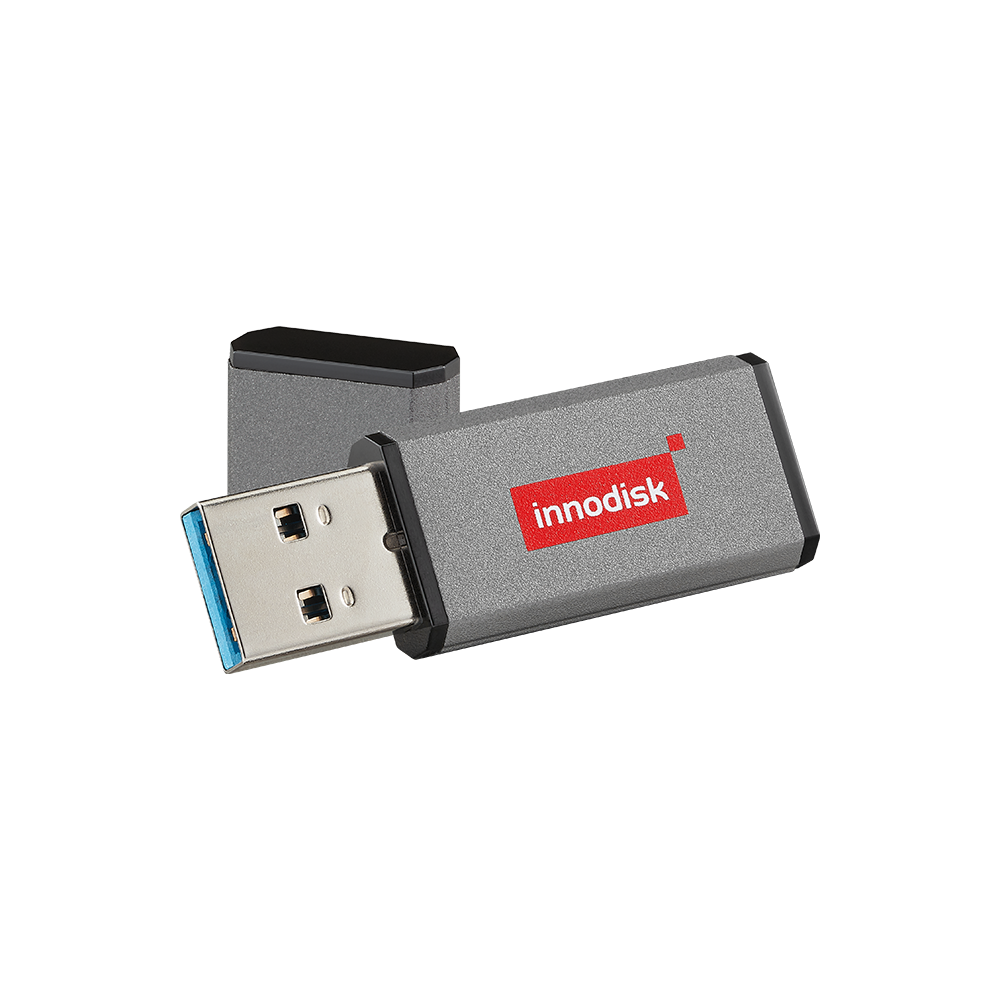

USB Drive 3ME

USB / USB EDC

8GB ~ 64GB

Features

High performance with USB 3.0 interface
Low power consumption
Wear Leveling supported
ECC engine coverage up to 60-bit / 1024 bytes
Metal housing for robust usage
30? golden finger for highly reliable data transfer quality

BORN FOR SUPERIOR PERFORMANCE

The Innodisk USB Drive products provide high capacity USB Flash memory storage that electrically complies with High-speed USB 3.0 interface & backward compatible with USB 2.0. The device features attractive small form factor and the connectivity over USB 3.0 and the NAND Flash architecture provide a faster data transmission.

SPECIFICATIONS

Model Name	USB Drive 3ME
Flash Type	MLC
Interface	USB 3.0
Form Factor	USB Drive
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	100 / 50
P/E Cycle	3,000
TBW (Max.)	172
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.70W (5V x 141mA)
Max. Channels	1
External DRAM Buffer	N
Features	H/W Write Protect
Dimension (W x L x H/mm)	16.6 x 48.55 x 7.6
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEUA1-08GI61BC1SC	DEUA1-08GI61BW1SC
16GB	DEUA1-16GI61BC1SC	DEUA1-16GI61BW1SC
32GB	DEUA1-32GI61BC1SC	DEUA1-32GI61BW1SC
64GB	DEUA1-64GI61BC1SC	DEUA1-64GI61BW1SC
