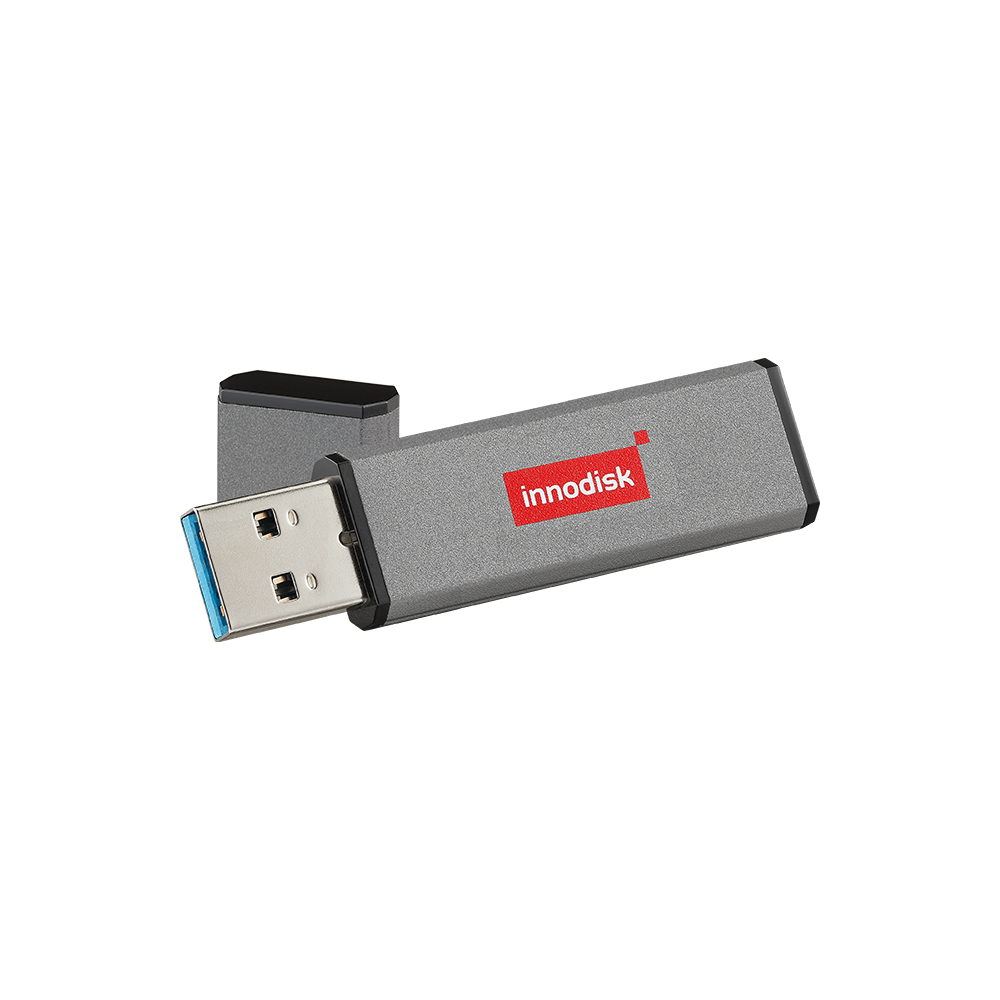

USB Drive 2SE2

USB / USB EDC

512MB ~ 16GB

Features

Excellent data transfer speed
Wear Leveling supported
Low power consumption
Metal Housing for ESD proof
Connector plated with 30?’’ gold

BORN FOR SUPERIOR PERFORMANCE

The Innodisk USB Drive products provide high capacity USB Flash memory storage that electrically complies with High-speed USB 2.0 interface & backward compatible with USB 1.1. The device features attractive small form factor and the connectivity over USB 2.0 and the NAND Flash architecture provide a faster data transmission.

SPECIFICATIONS

Model Name	USB Drive 2SE2
Flash Type	SLC
Interface	USB 2.0
Form Factor	USB Drive
Capacity	512MB ~ 16GB
Sequential R / W (MB/sec, max.)	30 / 30
P/E Cycle	60,000
TBW (Max.)	864
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.35W
Max. Channels	1
External DRAM Buffer	N
Features	H/W Write Protect
Dimension (W x L x H/mm)	16.6 x 61.45 x 7.6
Vibration	5G@[7 ~ 2000Hz]
Shock	50G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
512MB	DEUA1-512DQ1AC1SB	DEUA1-512DQ1AW1SB
1GB	DEUA1-01GDQ1AC1SB	DEUA1-01GDQ1AW1SB
2GB	DEUA1-02GDQ1AC1SB	DEUA1-02GDQ1AW1SB
4GB	DEUA1-04GDQ1AC1SB	DEUA1-04GDQ1AW1SB
8GB	DEUA1-08GDQ1AC1SB	DEUA1-08GDQ1AW1SB
16GB	DEUA1-16GDQ1AC1SB	DEUA1-16GDQ1AW1SB
