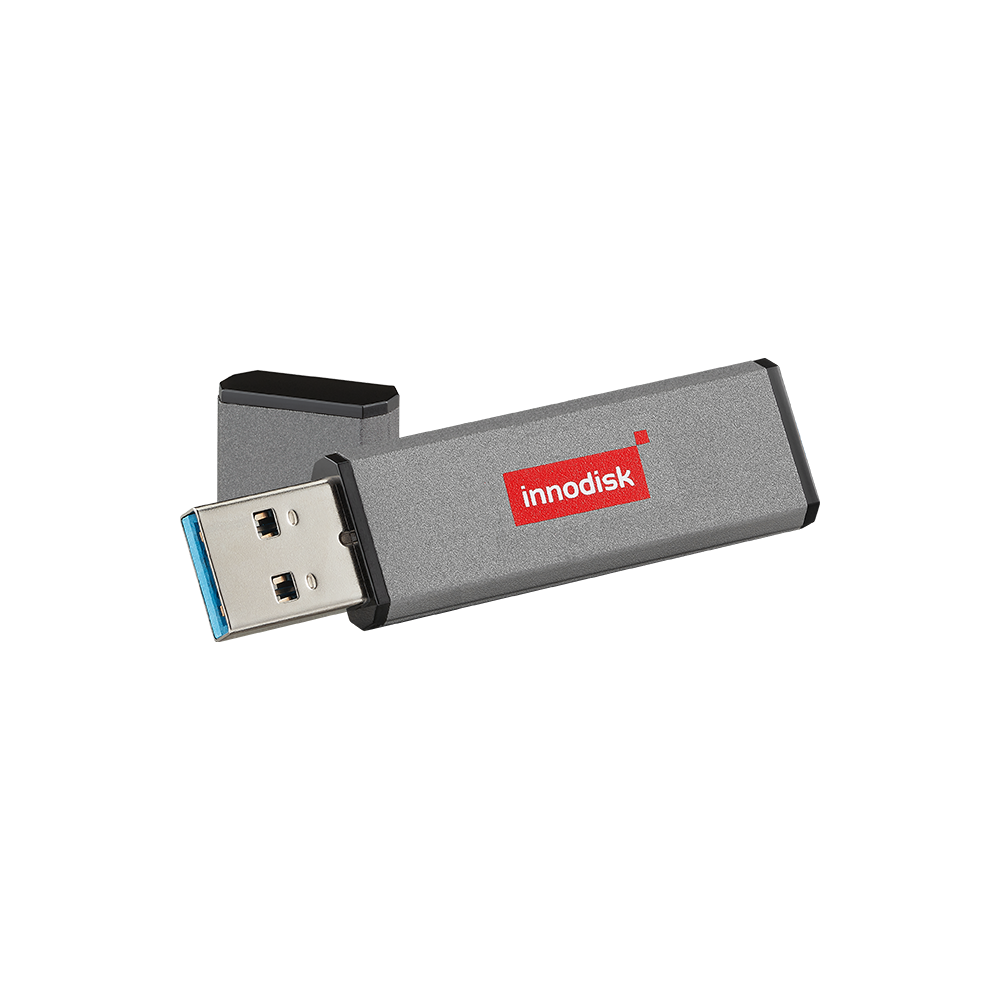

USB Drive 2ME2

USB / USB EDC

8GB ~ 64GB

Features

Excellent data transfer speed
Wear Leveling supported
Low power consumption
Metal Housing for ESD proof
Connector plated with 30?’’ gold

BORN FOR SUPERIOR PERFORMANCE

The Innodisk USB Drive products provide high capacity USB Flash memory storage that electrically complies with high-speed USB 2.0 interface & backward compatible with USB 1.1. The device features attractive small form factor and the connectivity over USB 2.0 and the NAND Flash architecture provide a faster data transmission.

SPECIFICATIONS

Model Name	USB Drive 2ME2
Flash Type	MLC
Interface	USB 2.0
Form Factor	USB Drive
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	40 / 30
P/E Cycle	3,000
TBW (Max.)	864
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.43W
Max. Channels	2
External DRAM Buffer	N
Features	H/W Write Protect
Dimension (W x L x H/mm)	16.6 x 61.45 x 7.6
Vibration	5G@[7 ~ 2000Hz]
Shock	50G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DEUA1-08GDQ1BC1SC	DEUA1-08GDQ1BW1SC
16GB	DEUA1-16GDQ1BC1SC	DEUA1-16GDQ1BW1SC
32GB	DEUA1-32GDQ1BC1SC	DEUA1-32GDQ1BW1SC
64GB	DEUA1-64GDQ1BC1SC	DEUA1-64GDQ1BW1SC

For more information, please contact our support.
