Transportation Solution

Industry Challenges

Smart cities need to have an Intelligent Transportation System (ITS) which may satisfy their transportation demands. Transit in a brilliant city should be hassle-free, eco-friendly, and communal and connected cars for better public transportation services—an ITS deals with these through far better visitor traffic management, squadron, and electricity administration. The most effective fit for this is the Electric Vehicle, which also deals with the future's energy issues. EVs are geared up along with intellect, i.e., Autonomous Electric Vehicles (AEVs), including the standard and the linked level called for by a brilliant area.

Winmate has technology know-how for the production and development of in-vehicle computers.

• Strong vibration
  Tablet PCs in any means of transportations are subject to strong vibrations.
• Wide range temperature
  Depending on the season, the outside temperature can range from below 0 °C to more than 40 °C.
• Unstable power supply
  Vehicle mounted computers and rugged tablet PCs deployed in the train cabin must have a solution to protect from an unstable power supply, power loss, or power surge.
• Wireless communications
  Wireless technologies connect all data processor, to monitors and sensors in the train.
• Extreme operating environment
  Advanced mobile solutions for system monitoring should perform stably even in the most challenging conditions: strong vibration,, varying temperature, and rain.

Overview

What're Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC)

Winmate has long studied Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC) issues on our server, panel PC, and mobile devices. We have developed carrier solutions that meet customers' requests.

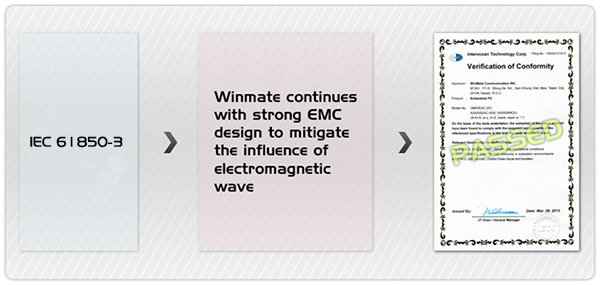

For the Substation Automation System (SAS) application, Winmate has successfully improved our process to gain the ability to manufacture rugged computing solutions that meet IEC 61850-3 international protocol. IEC 61850-3 international protocol is a well-structured, widely-used EMC guideline on communication and automation utilities.

With years of experience and improved processes, Winmate can now design an automation system that meets the IEC 61850 standard. Our server, panel PC, and mobile devices can operate smoothly with our EMC solution without interfering with another system nearby.

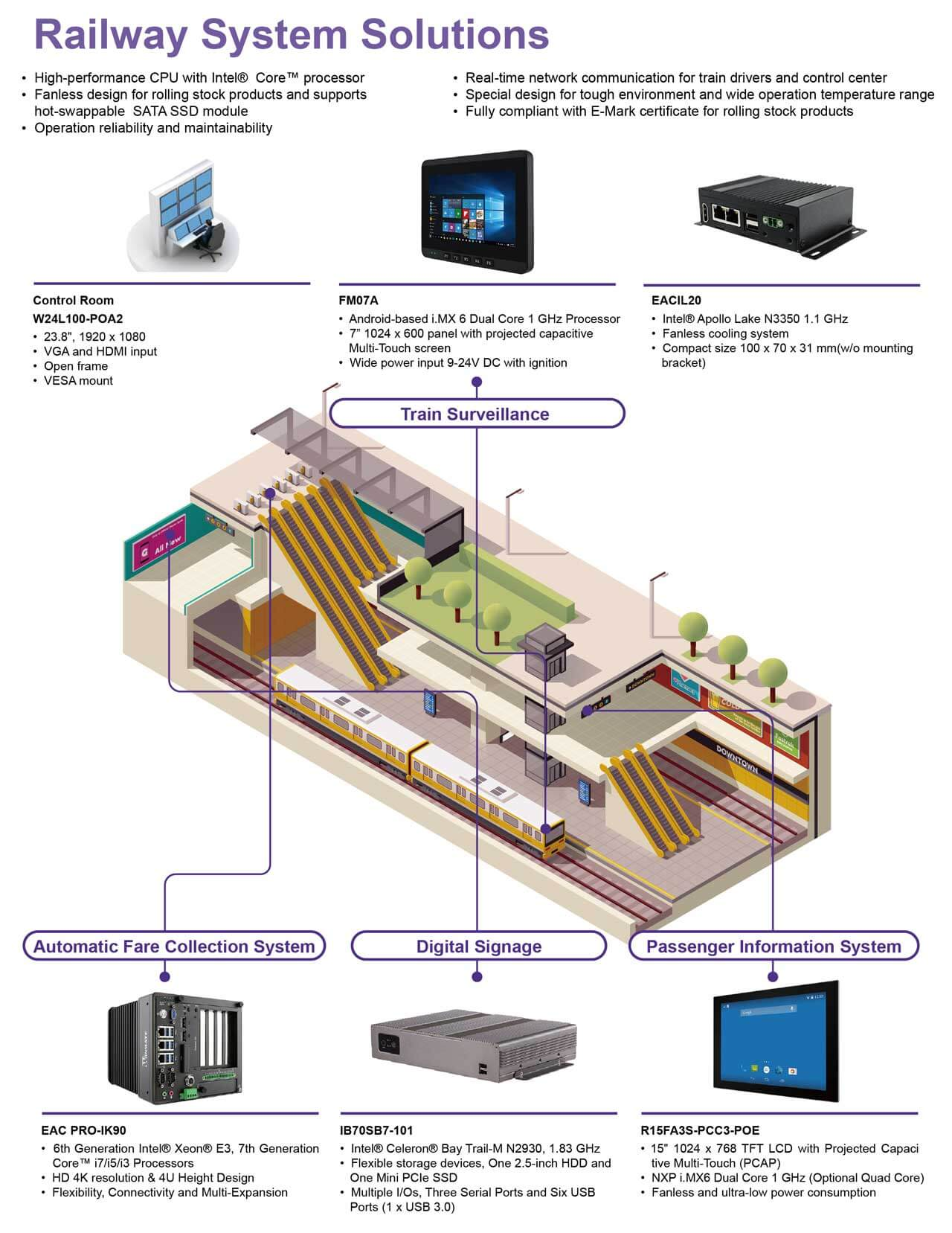

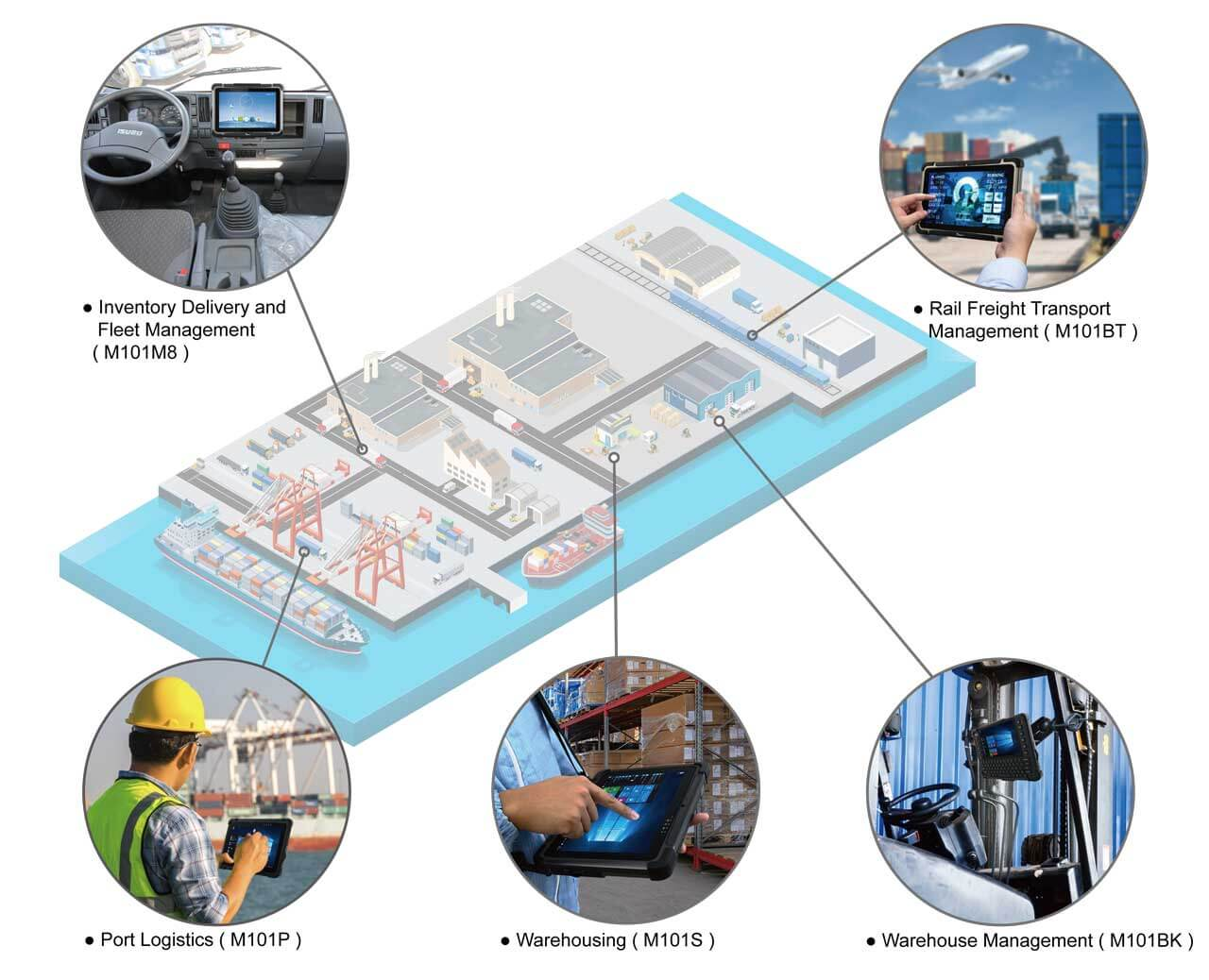

User Scenario

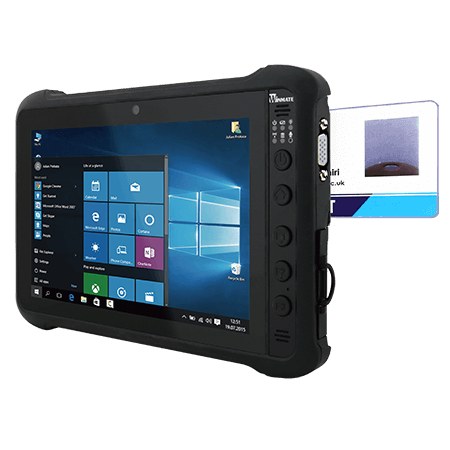

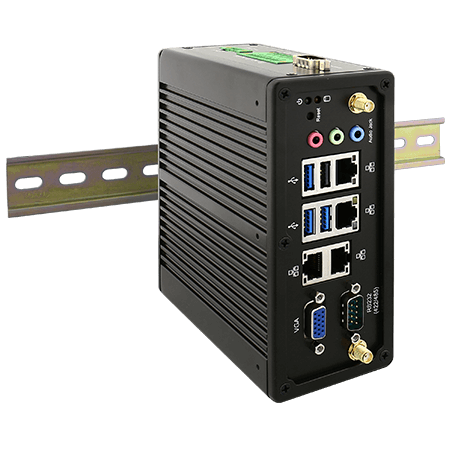

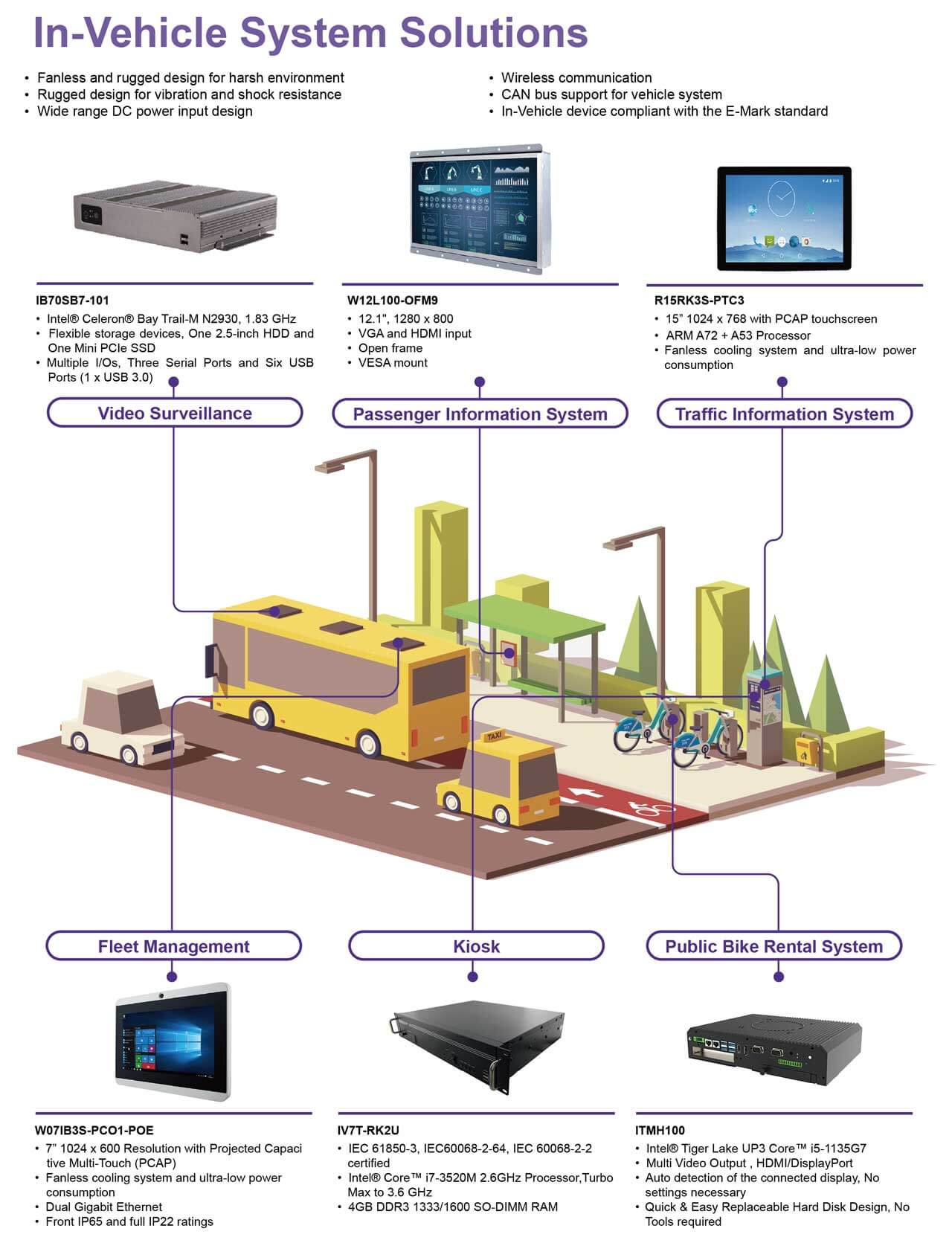

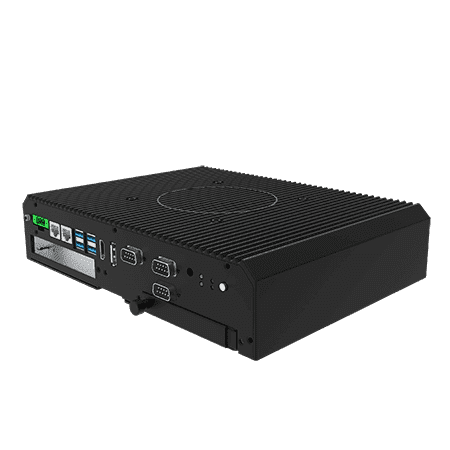

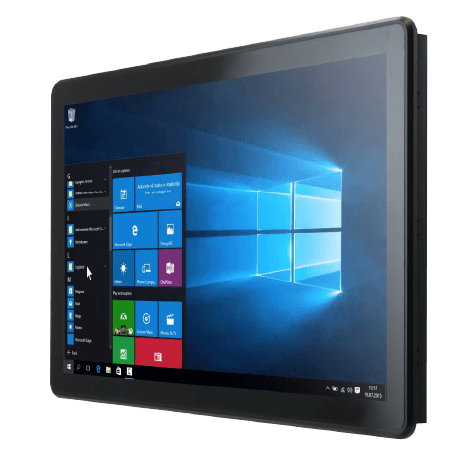

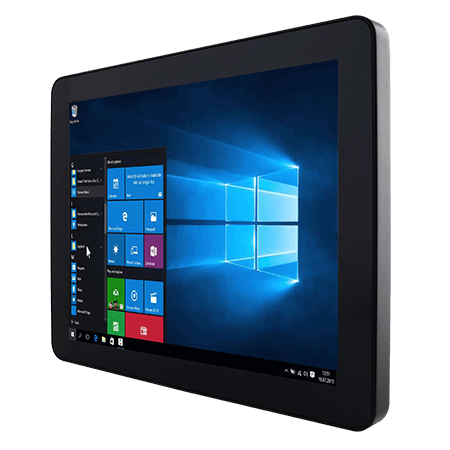

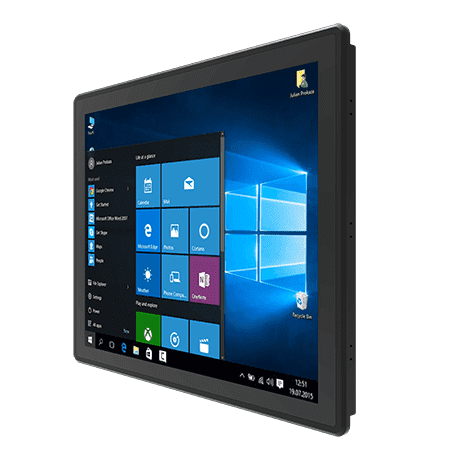

	M101S M101BK IB70SB7-101 W12L100-OFM9 W07IB3S-PCO1-POE IV7T-RK2U ITMH100 W24L100-POA2 EACIL20 IB70SB7-101

Core Capabilities / Advantages

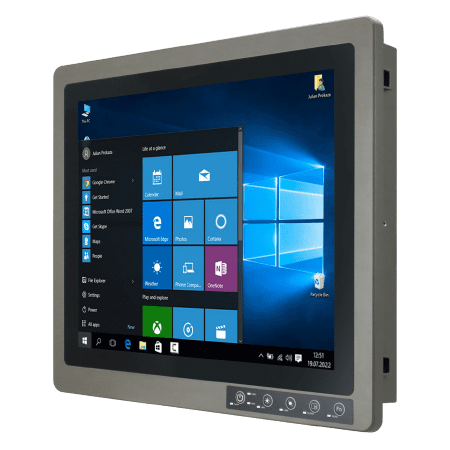

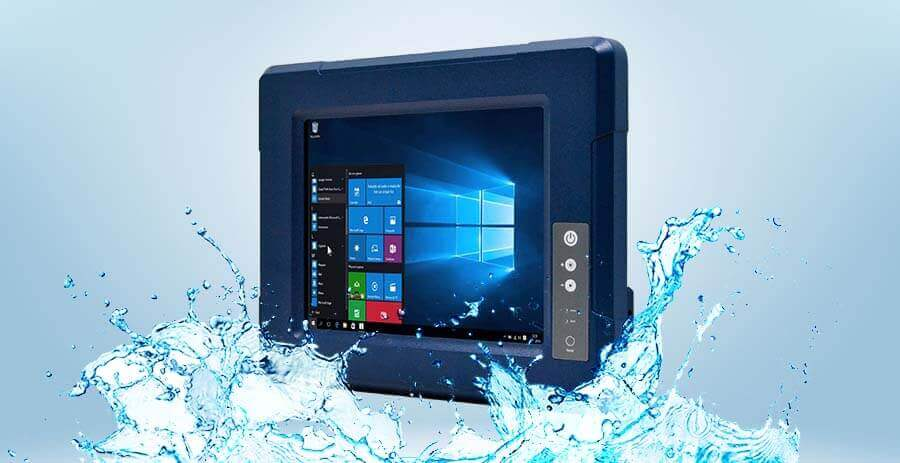

Dust - and waterproof housing and connector Winmate multipurpose panel pc is protected against dust and water splash specially made to keep the industrial panel computer and display workable against harsh environments.

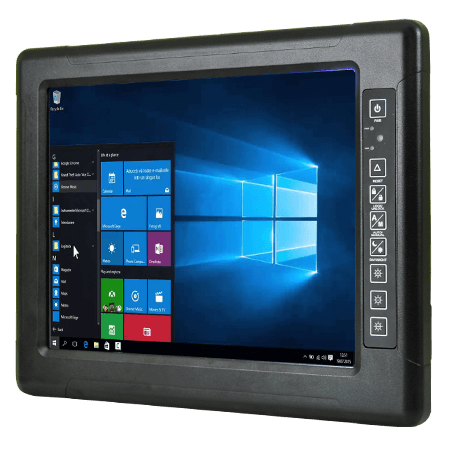

	Fanless cooling system and ultra-low power consumption G-WIN line offered fanless vehicle mount panel PCs, with Intel's next-generation processor paired with genuine Intel graphics resulting in high performance with low power consumption. Suitable for long-hour drive and in-motion computing capabilities.

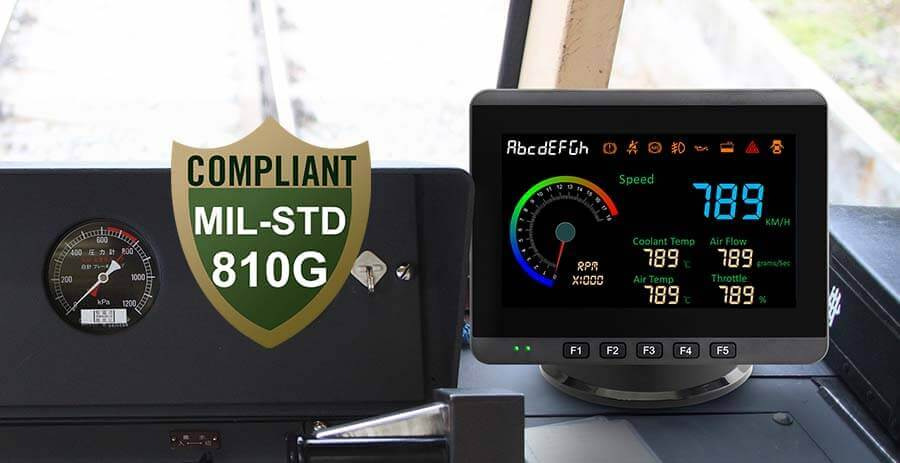

Anti-shock and vibration Winmate understands that in-vehicle panel pc is subjected to shock and vibration, either from the road or the transportation. Our G-WIN panel passes the MIL-STD-810F/G shock and vibration tests. The overall construction of the G-WIN panel is inherently rugged, with aluminum alloy housing and anti-corrosion treatment. Also, optical bonding and a protective glass option increase the screen's sturdiness.
	Suitable for Operations in Extreme Working Conditions With the built-in intelligent heater that boosts from -40°C to 70°C, the R19IHAT-66EX ATEX panel PC is suitable for operating in outdoor or hazardous environments blistering hot or cold temperatures.

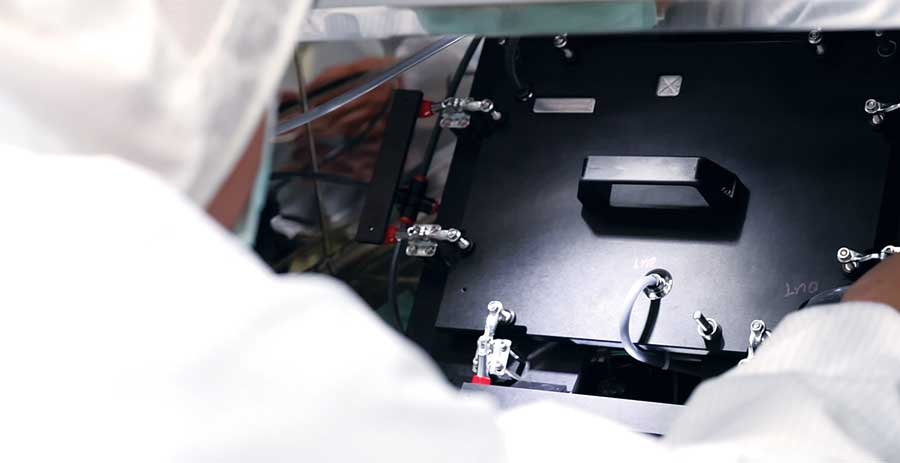

No-Air Potting Process Potting is the process of filling a complete electronic assembly with a solid or gelatinous compound for resistance to shock and vibration and excluding moisture and corrosive agents. Winmate performs no-air potting of electronic components in-house. Potting prevents the substrate from failing in harsh environments or from vibrations or other potentially-damaging uses.

Safety and Standards

• IEC 61850 (EMC, EMI)

  The product that meets the IEC 61850-3 standard provides a full-range, redundant power supply which ensures the high quality of electricity transmission. The equipment that meets the IEC 61850-3 requirement have the following characteristics:
