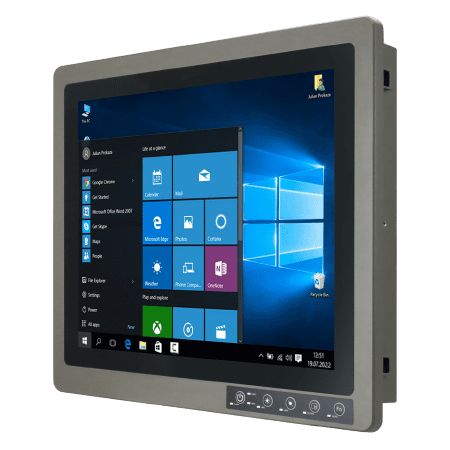

R19IHAT-66EX-T

19" 800 nits ATEX Panel PC with Intel® Core™ i5-1135G7

KEY FEATURES

• 19" 800 nits LCD ATEX Panel PC
• Class 1, Division 2 & ATEX Zone 2 certified for hazardous area applications
• Intel® 11th Tiger Lake Core™ i5-1135G7 Processor
• Fanless design with streamlined enclosure for highly efficient heat dissipation
• Intelligent Heater for working in extreme cold environments -40°C

Download Datasheet

Fully Rugged and Waterproof Design

The R19IHAT-66EX-T ATEX panel PC offers all-around IP66 protection against dust and water, in compliance with the MIL-STD-810G standard. Suitable for applications in potentially explosive and harsh environments. With the EX-type brass cable glands M16/ M12 ports for maximum protection in wet and dusty operation conditions.

Safe for Use in Hazardous Locations

The R19IHAT-66EX-T complies with ATEX Zone 2 certification for remote data collection, process visualization, and control. Suitable for deployment in hazardous zones, such as explosion-prone areas, where explosion-proof safety requirements are the priority.

High Processing Power and Fanless Thermal System

Intel® CPU powers Winmate Explosion-proof Panel PC, and a fanless thermal design with a smooth enclosure offers highly efficient heat dissipation and high-performance computing for most demanding tasks.

Suitable for Operations in Extreme Working Conditions

R19IHAT-66EX-T Explosion-proof panel PC comes with the built-in intelligent heater and optional high brightness, operable at -40°C to 70°C and suitable for outdoor use in rain, sunny, windy, or cold applications.

Ultimate Touch Experience

Enhance customer experience and convenience with a PCAP touch that supports a multi-touch screen. Experience the ultimate durability in some of the most demanding applications, such as a control panel of a drilling rig.
