 | Features and Benefits
|

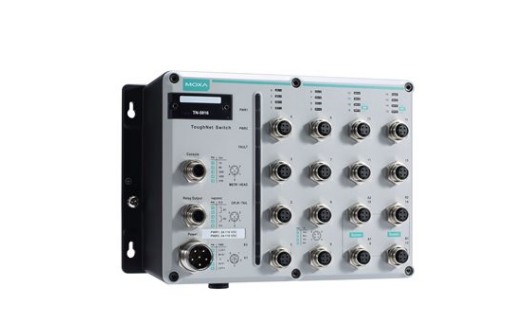

The ToughNet TN-5900 Series, designed for rolling stock backbone networks, are high-performance M12 routers with four bypass relay backbone ports. They support NAT and routing functionality to facilitate the deployment of applications across networks. The TN-5900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.
The TN-5900 Series routers provide a wide power input range of 24 to 110 VDC. TN-5900 Series switches operate in an extended operating temperature range of -40 to 75°C and are compliant with the mandatory requirements of EN 50155/50121-4, making them suitable for a variety of industrial applications.
Routing functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks
NAT makes IP management easier, since end devices in different carriages can use the same IP addresses
Leading EN 50155 Ethernet router for rolling stock applications
Turbo Ring and RSTP/STP for network redundancy
IGMP V1/V2 snooping for filtering multicast traffic
IEEE 802.1Q VLAN to ease network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to improve reliability
Panel mounting or DIN-rail mounting installation capability
SNMPv3, HTTPS, and SSH to enhance network security
SNMP v1/v2c/v3 for different levels of network management
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Line-swap fast recovery
Automatic recovery of connected device’s IP addresses
LLDP for automatic topology discovery in network management software
Configurable by web browser, Telnet/serial console, and CLI Windows utility
