 | Features and Benefits
|

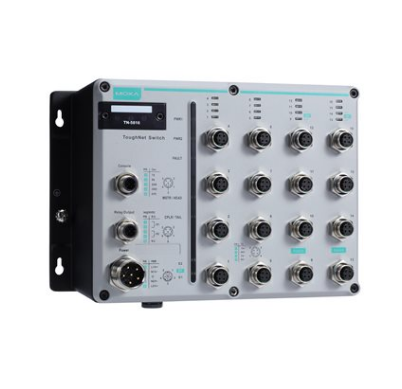

The ToughNet TN-5800A Series switches are high-performance M12 Layer 3 Ethernet switches that support Layer 3 routing to facilitate the deployment of applications across networks. By using M12 and other circular connectors, the TN-5800A Series ensures tight, robust connections and reliability against environmental disturbances, such as vibration and shock. TN-5800A Series switches provide isolated power with 24 to 110 VDC power input range, which allows you to use the same model at different sites around the globe.

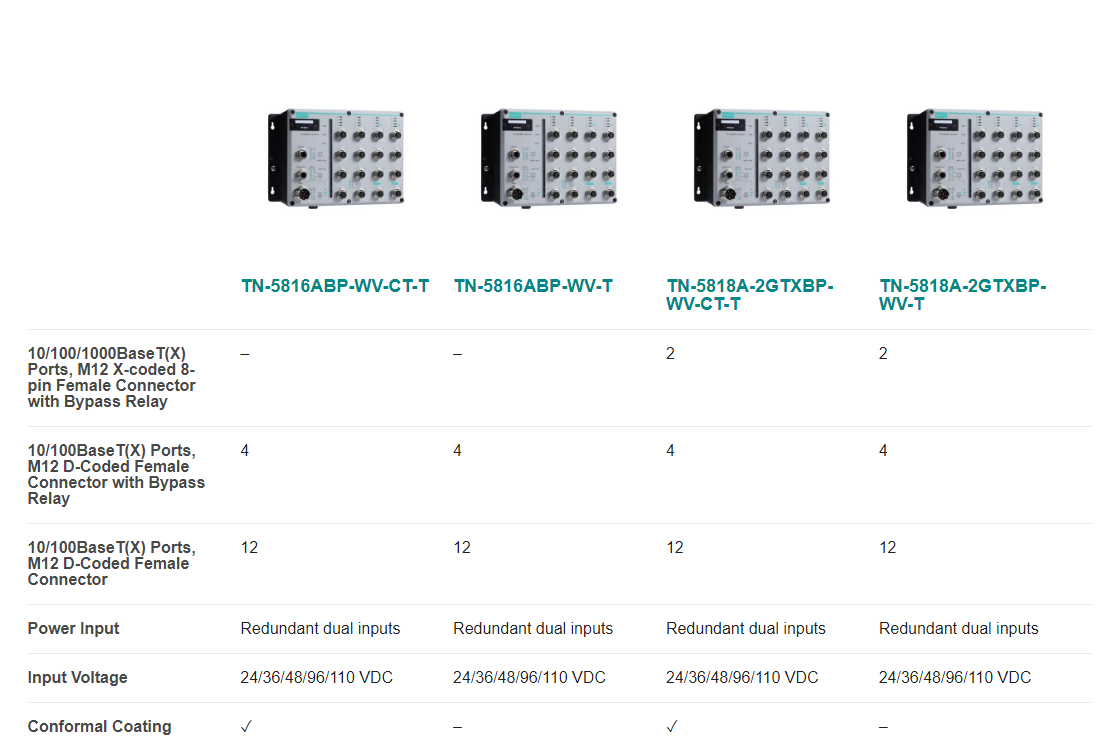

In addition, TN-5800A Series switches provide up to 16 Fast Ethernet M12 ports with 4 bypass relay ports, and 2 Gigabit Ethernet ports with bypass relay function. Furthermore, the -40 to 75°C operating temperature and IP54-rated water and dust resistant enclosure allow deployment in harsh environments. The TN-5800A Series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.
Layer 3 switching functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks
Leading EN 50155 L3 Ethernet switches for rolling stock applications
DHCP Option 82 for IP address assignment with different policies
Turbo Ring, Turbo Chain, and STP/RSTP/MSTP for network redundancy
IGMP snooping and GMRP for filtering multicast traffic
IEEE 802.1Q VLAN, and GVRP to ease network planning
EtherNet/IP and Modbus TCP industrial Ethernet protocols supported
QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization
IEEE 802.3ad, LACP for optimum bandwidth utilization
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port allows access by only authorized MAC addresses
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Line-swap fast recovery
LLDP for automatic topology discovery in network management software
Configurable by web browser, Telnet/serial console, and Windows utility
Panel mounting or DIN-rail mounting installation capability
Loop protection to prevent network loops
