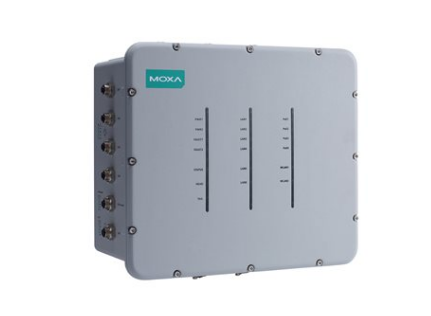

TAP-323 Series

Features and Benefits

2 dual-band radios, IEEE 802.11a/b/g/n compliant
Rugged IP68-rated housing and -40 to 75°C operating temperature
Controller-based Turbo Roaming (less than 50 ms)
2 fiber SFP slots and 4 PoE ports with M12 LAN connectors
Complies with all EN 50155 mandatory test items
Complies with EN 50121-4
Wireless network redundancy with AeroLink Protection
High transmission power for extended reach

Introduction

The TAP-323 trackside wireless unit is designed for train-to-ground wireless communication. The TAP-323 is a highly compact and rugged wireless unit that integrates two access points, a managed fiber switch, and a wide-range AC/DC power supply into one box. The IP68 housing allows the unit to withstand harsh weather conditions, and the M12 connectors make the unit shock and vibration resistant. The TAP-323 supports advanced controller-based Turbo Roaming technology for train-to-ground wireless applications such as communication-based train control (CBTC) and CCTV. The unit can supply power to up to 4 PoE devices while providing reliable LAN communication with Moxa’s Turbo Chain technology.

Advanced Mobility and Reliability

Controller-based L3 Turbo Roaming
Mobile IP support
2 dual-band radios: 2.4 GHz and 5 GHz
Turbo Chain support (100 ms recovery time)
WPA/WPA2 and 802.11i supported
IEEE 802.1X/RADIUS supported

Built for Transportation Applications

Isolated 110 to 220 VDC/VAC power input
High transmission power, 400 mW (max)
Supplies power through 4 PoE ports
2 fiber SFP ports for backbone installation
Wide temperature (-40 to 75°C) range and IP68-rated housing

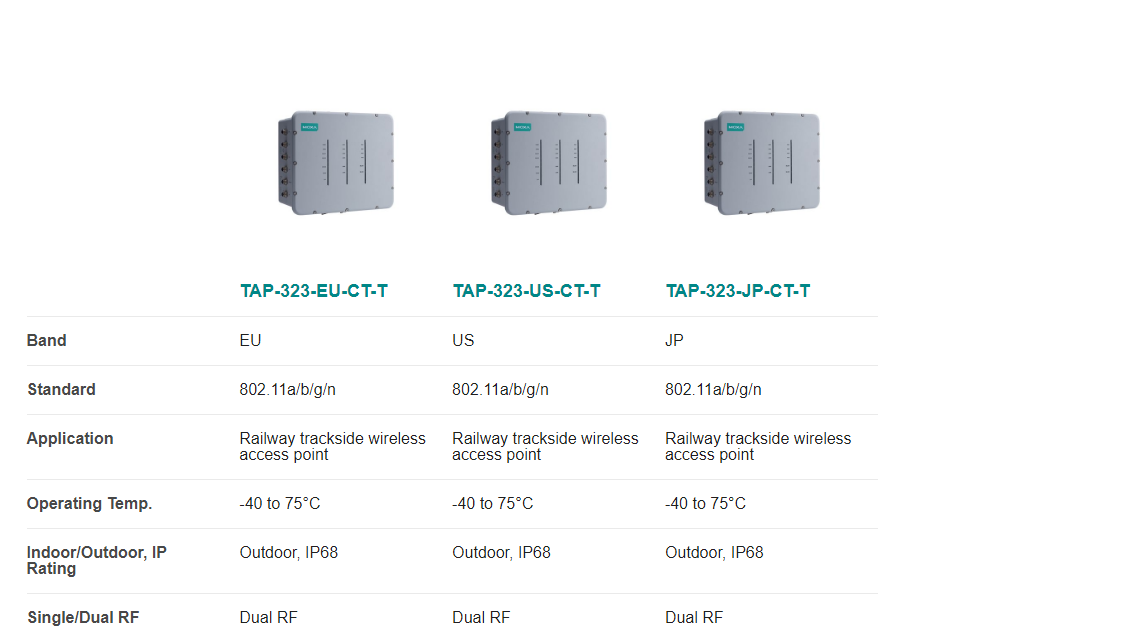

Models
