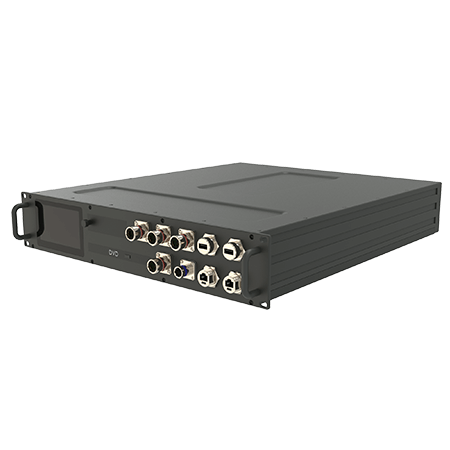

SV500S-ML

Intel® Xeon® Scalable Defence Rack Server

KEY FEATURES

• Intel® 3rd Gen Xeon® Scalable Processor, Defence Rack Server
• RAM Support 8x RDIMM DDR4-3200
• Support Redundant PSU
• Military­ grade connector (MIL­-DTL­38999) for power input & all I/O
• Support information display at front side
• Support DVD RW
• Support removeable 2.5” HDD
• Compliant MIL­STD 810G/ MIL­STD 461E
• 2U Rack mechanical design

Download Datasheet

Suitable for Server Rooms

Winmate 2U Rack Server designed to be mounted in a vertical server rack features innovation and performance, ready to be deployed in data centers with demanding applications. Support Intel vPro, AMT 11 remote management.

High Performance, Efficient Heat Dissipation

Winmate 2U Rack Server is a ready-to-integrate solution that combines a high level of performance from the latest Intel’s processors, efficient heat dissipation and energy efficiency, and overall reliability.

Cloud Security with Trusted Platform Module (TPM)

Support Trusted Platform Module (TPM) function that provides additional security features in servers related to tasks such as user authentication, remote access, and data protection.

Peripheral Connectivity

Winmate 2U Rack Servers can be used for nearly any purpose and stand out with flexibility and expandability. In terms of peripheral connectivity, they feature USB 2.0, RS232 serial communications, Giga LAN with MIL-DTL-38999 connectors.

Meeting the MIL-STD-461F Requirements with EMI/ ITO Mesh Solution

MIL-STD-461F is a requirement for the control of electromagnetic interference characteristics of subsystems and equipment. The EMI solution enables compliance with MIL-STD-461F for applications requiring MIL-STD-461F certification.
