SIGM-U1350

www.alvasta-tech.com / Enterprises / JHCTECH / Embedded Box PC / EN50155 Certified Box PC / SIGM-U1350 /

SIGM-U1350

Key Features

  • Intel® Skylake/Kabylake-U CPU
  • 2-Ch DDR4, Onboard 4GB+SODIMM, up to16GB
  • 1*DP, 1*VGA, 1*Smart Display, 3 display
  • 2*LAN(M12?, 5*USB(2*M12), with internal dongle
  • 1*CONSOLE RS232(RJ45)
  • 1*SATA3.0 ?1*mSATA?Opt.?
  • 4*Mini PCIe(1*Optional mSATA), support GPS/WiFi/LTE/4G
  • MLU220T-MXM AI accelerate?16TOPS (INT8?
  • EN50155, E-Mark certification, support TPM2.0
  • Railway power DC 110V

Datasheet

SIGM-U1350 | Fanless In-Vehicle Computer

Intel® Skylake/Kabylake-U CPU, MLU-220T-MXM?1*DP, 1*VGA, 1*Smart Display, 5*USB, 2*LAN, 1*SATA, 1*COM, 4*Mini PCIe, DC 110V

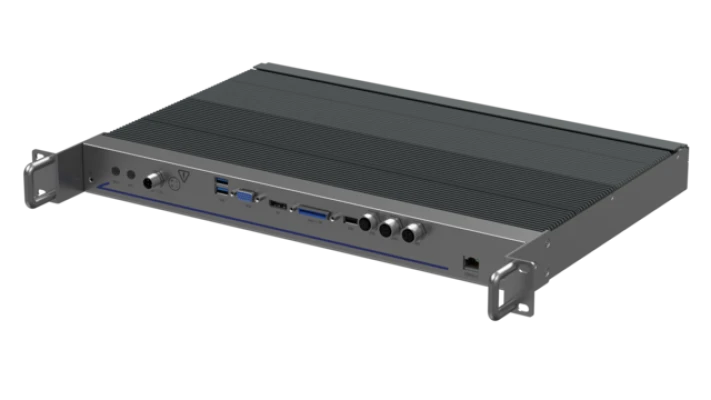

SIGM-U1350 is a standard 1U rack mount fanless In-Vehicle & rugged computer, Powered by Intel® Skylake/Kabylake-U CPU, with MLU220T-MXM, support dual 4G LTE/Wifi/BT/GPS and other wireless functions, DC 110V, E-mark vehicle certification, EN50155 certification, suitable for ITS, road vehicle, Railway vehicle applications.


Specification

CPUIntel® Skylake/Kabylake-U Corei3/i5/i7 series CPU
System memory2-ch DDR4, support 2133MHz, on board 4GB+1*SODIMM, up to 12GB
GraphicsIntel® Gen. 9 HD Graphics?support 3 display
DP max. res. 4096*2160@60Hz
Smart Display max. res. 1920*1200@60Hz
VGA max. res. 1920*1200@60Hz
LAN2*Intel® I210AT PCIe Gig. Ethernet, 10/100/1000Mbps, M12 X-Coded connector
Storage1*SSD/HDD SATA bay; 1*mSATA (SATA+USB);
I/O ports2*Gig-LAN (M12 X-Coded)
2*USB3.0 Type A, 2*USB2.0 (M12 A-Coded), 1*USB2.0 Type A
1*Console RS232?RJ45?
1*VGA + 1*DP + Smart Display
Expansion2*Mini PCIe with PCIe X1+USBsignal, 2*SIM slot, support 2*4G/LTE/Wifi/BT/GPS
1*Mini PCIe with SATA+USB signal?support mSATA
1*Mini PCIe with PCIe + USB signal
AI chipMLU220T-MXM AI accelerate?16TOPS?INT8?
LED1*Power LED, 1*HDD LED, 3*CPU Temp. LED (Red is warning, yellow is High, Green is normal)
Control SW1*Power button, 1*Remote SW signal, 1*AT/ATX SW, 1*Clear CMOS SW
SecurityInfineon TPM2.0
Power SupplyDC 110V input, 4-pin connector(M12), TDP: TBD)
Watchdog TimerWatchdog timeout programmable via software1 to 255 second
OS SupportLinux Fedora, Ubuntu
StructureAluminum chassis, Silver stainless steel wire drawing frame
ColorSilver + Grey
MountingRack installation
Dimension(W*H*D)?430*283.05*44.5mm
Net weightTBD
Operating
temperature		EN50155 TX: -40?60?
Storage
Temperature		-40°C~85°C
Storage Humidity10~90%@40°C, Non-condensing
VibrationMIL-STD-810G, EN50155
ShockMIL-STD-810G, EN50155
EMC/
Certification		EN50155 & E-Mark & CE & FCC Class B
