| Key Features
|
Intel® Apollo Lake E3950 CPU, 1*LAN, 2*POE, 2*USB3.0, DP, VGA, Smart Display,2*COM, 8-bit Iso.DIO, DC 9~36V, ITPSmanagement, Optional DC 48/72/110V input.

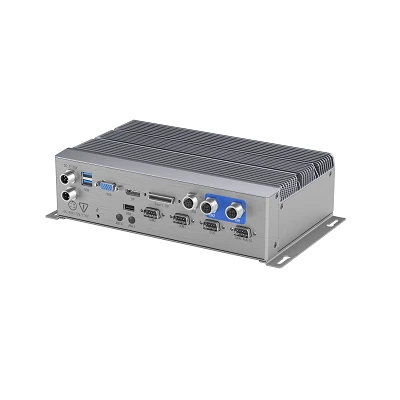

The SIGM-2650 is a fanless In-Vehicle rugged computer, Powered by Intel® Apollo Lake E3950 processor and dual-channel (Onboard + SODIMM) DDR3L, supporting 1866MHz, up to 8GB. DP+VGA+ Smart Display, three display interfaces, 2*POE, 5*USB, 4*Mini PCIe, support dual 4G VPN/Wifi/BT/GPS and other wireless functions, 2*COM with isolation function, 8-bit isolated DIO, Optional 2*CAN. 1*mSATA, 1* easy-swap 2.5-inch SATA3.0 for storage. DC 9~36V wide voltage power supply, ITPSpower management, optional Railway standard power input DC 48/72/110V, E-mark vehicle certification, EN50155 certification, suitable for the road vehicle, railway vehicle applications.
The SIGM-2650 is a fanless In-Vehicle rugged computer, Powered by Intel® Apollo Lake E3950 processor and dual-channel (On- board + SODIMM) DDR3L, supporting 1866MHz, up to 8GB. DP+VGA+ Smart Display, three display interfaces, 2*POE, 5*USB, 4*Mini PCIe, support dual 4G VPN/Wifi/BT/GPS and other wireless functions, 2*COM with isolation function, 8-bit isolated DIO, Optional 2*CAN. 1*mSATA, 1* easy-swap 2.5-inch SATA3.0 for storage. DC 9~36V wide voltage
power supply, ITPS power management, optional Railway standard power input DC 48/72/110V, E-mark vehicle certification, EN50155 certification, suitable for road vehicle, Railway vehicle applications.
Specification
System | CPU | Intel® Apollo lake E3950 CPU, 4 Cores, 4 Threads, up to 2.00GHz, 2 MB L2, TDP 12W |
| System Memory | 2-ch DDR3L, support 1866MHz, on board 4GB+1*SODIMM, up to 8GB | |
| Expansion | 2*Mini PCIe with PCIe X1+USB signal, 2*SIM slot, support 2*4G/LTE/Wifi/BT/GPS 1*Mini PCIe with SATA+USB signal?support mSATA 1*Mini PCIe with USB signal, when using 2*CAN, This slot is occupied | |
| Intel Graphics | Intel Gen.9 HD Graphics 505, DP max. res. 4096*2160@60Hz, Smart Display max. res. 1920*1200@60Hz, VGA max. res. 1920*1200@60Hz, support 3 displays | |
| Audio | Realtek ALC662VD controller, Audio out and MIC, support 5.1 channel | |
| LAN | 2*Intel I210AT PCIe Gig. Ethernet, M12 connector, with POE function, 802.3af (15.4W) | |
| Storage | 1*2.5" HDD/SSD bay, 1*mSATA(SATA+USB) | |
| DIO | 4-ch input/4-ch output, isolated (DB9), 2.5KV opto-isolated input(H: 5-24V, L: 0-1.5V) , opto- isolated output(200mA? | |
I/O ports
| 2*Gig-LAN, with POE 802.3af 15.4W (M12 X-coded) 2*USB3.0 (Type A); 1*USB2.0 (Type A); 2*USB2.0 (M12) 4-ch input/4-ch output, isolated (DB9 male)?2*SIM slot 1*RS232 isolated (DB9 male), 1*RS485 isolated (DB9 male), Optional 2*CAN 2.0(DB9 male) 1*Audio-out & 1*MIC (3.5mm phone jack) 1*DP+1*VGA+1*Smart Display | |
| LED | 1*Power LED, 1*HDDLED, 3*CPUTemp. LED (Red is warning, yellow is High, Green is normal) 3*LANLED(ACT/LINK) | |
| Control SW | 1*Power button, 1*Remote SW signal, 1*AT/ATX SW, 1*Clear CMOS SW, 1*ACC/Family select SW | |
| Power Supply | DC 9~36V input, 5-pin connector (M12), TDP: 12V/3.7A(E3950 CPU, 4G DDR3L, 128G HDD, 128G SSD) Optional Railway power module, DC 48/72/110V input, 4-pin connector(M12) | |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
| OS Support | Windows 10, Linux, Wind River VxWorks | |
Mechanical | Structure | Aluminum chassis, SGCC frame |
| Color | Silver & Grey | |
| Mounting | Desktop Mounting | |

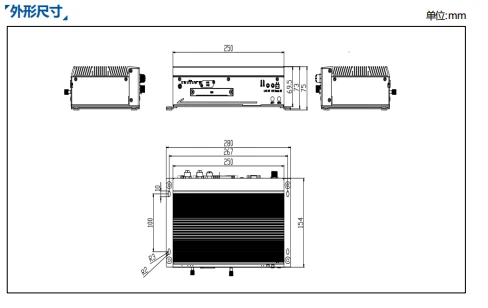

| Dimension | (W*H*D)?250*154*72mm | |
| Netweight | 3.10Kg | |
Environmental | Operating temperature | EN50155 TX: -40~70?(Operating 10min in 85?) |
| Storage Temperature | -40°C~85°C | |
| Storage Humidity | 10~90%@40°C,Non-condensing | |
| Vibration | MIL-STD-810G, EN50155 | |
| Shock | MIL-STD-810G, EN50155 | |
| Certification/EMC | EN50155, E-Mark, CE/FCC Class B |
