| Key Features
|
Intel® Celeron J1900 CPU, 2/3*LAN, 7*USB, 6*COM, 1*HDMI+1*VGA, Dual display, Optional 8-bit DIO, CPU temp. show in LED, DC IN 9~36V.

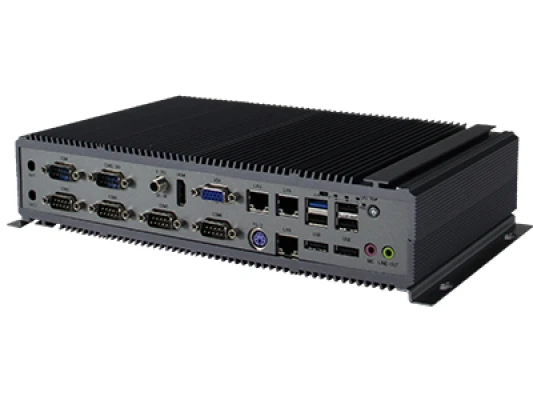

SCC-3116 is a multi-IO industrial design Box Computer of JHCTECH with an aluminum chassis and fanless design. It is powered by Intel® Baytrail Celeron J1900 2.0-2.42 CPU and DDR3L 1333MHz memory, up to 8GB. HDMI and VGA dual independent display, 2/3*Gig. LAN, Integrated 10/100/1000M. 6*COM, 7*USB, optional 8-bit DIO, 1*Mini PCIe which support 4G and Wifi/BT. 1*2.5" SATA HDD/SSD, 1*mSATA, Dual storage. With DC 9~36V wide power input. Operating temperature showing in LED, it will be fit for IoT terminal, automation and manufacture application.
[Specification]
[Applications]
Iot terminal, automation and manufacture application.
[Certification]
CE/FCC Class A |  |
Specification
System | CPU+PCH | Intel gen 10 Comet lake-S Core i9/i7/i5/i3/Pentium/Celeron LGA1200 CPU, up to 125W, H420E chipset |
| Memory | 2x288-pin Non-ECC UDIMM , dual channel DDR4 2400/2666/2933MHz, up to 64GB | |
| Expansion | 1xPCIeX16 Gen3.0 slot, 3xPCIeX4 Gen3.0 slot (PCIeX1 signal?the first slot(X2 signal) can share the other 2 slots signal through BIOS settings, so it can be changed to X4 signal, at this time the other 2 slots are unavailable), 3x32-bit PCI slot | |
| Graphics | Intel UHD Graphics, Supports DirectX 12, OpenGL 4.5 and OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 HDMI max. res. 4096*2160@30Hz?VGA max. res. 1920*1200@60Hz | |
| Audio | Realtek ALC897 controller, Support 5.1 channel | |
| LAN | 1xIntel I226V?10M/100M/1000M self-adapt?support WOL 1xIntel I219LM?10M/100M/1000M self-adapt?support WOL | |
| Storage | 4xSATA3, 6.0Gbps interface, the box is designed with 4x3.5 "and 2x2.5" 5 anti-vibration hard disk bay, 1 ultrathin DVD driver bay, can realize multi-category combined storage | |
Rear I/O
| 2xLAN(RJ45); 1xHDMI+1xVGA; 1xLine out+1xMic 2x3.5mm phone jack 4xUSB3.2 Gen1 (5Gb/s, Type A), 2xUSB2.0(Type A)?support USB Power to switch between Systemmode(+5V) and +5VSB mode through jumper 2xRS232/422/485 (DB9 male), 2xRS232(DB9 male), optional 1xLPT (DB25 female) | |
| Front I/O | 2xUSB2.0(Type A) | |
| Internal I/O | 8bit DIO, 1xUSB2.0(Type A), 1*LPT pin header?2*RS232 pin header, PS/2 wafer, the built-in interface can be elicited through an extension window | |
| Switch & LED | Front with Power Button, Reset Button, Power LED, HDD LED, on board with USB Power jumper, AT/ATX jumper, Clear CMOS jumper | |
| Power Supply | AC100-240V input, standard ATX power supply 300W, optional 500W and 750W; TDP: 184.85W (I7-10700K CPU/16G DDR4/256G SSD) | |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
| Security | Support Infineon TPM2.0(Opt.) | |
| OS Support | Windows 10, Windows 11?Linux Ubuntu | |
Mechanical | Structure and Mounting | Door with lock design, SGCC steel plate, metal mold molding; Mounted on 19”rack, optional mounting rail set |
| Cooling | Linear airflow design, front 12025 ball bearing fan, optional 2 rear 8025 ball bearing fan | |
| Color | Granite grey | |
| Dimension | (W*H*D)?430x470x173mm | |
| Net weight | 14.0kg | |
Environmental | Operating Temperature | 0?50? |
| Storage Temperature | -40°C~70°C | |
| Storage Humidity | 10~95%@40°C, Non-condensing | |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) | |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? | |
| EMC/Certification | CE/FCC Class A, 3C |
