Reliability
| Security
| Easy Development and Management
|
Wireless capabilities enable easy deployment of edge computers in various locations, eliminating wiring constraints and enhancing data-aggregation capabilities. By transitioning OT environments to modern wireless technologies, organizations can benefit from simplified integration and reduced installation costs. Additionally, remote-management capabilities can enhance the efficiency of industrial automation systems.

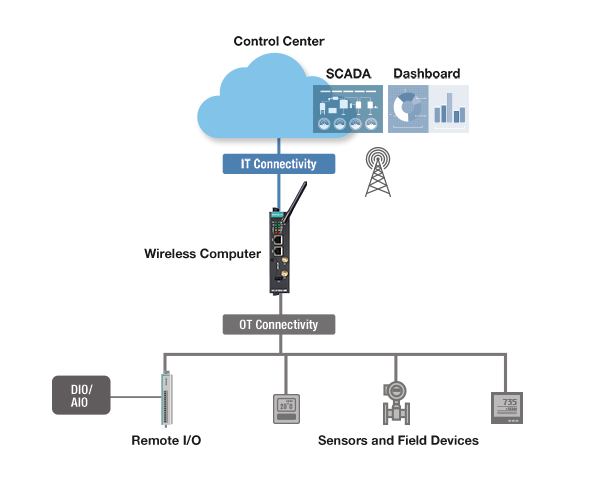

Wireless Computer As an Edge Gateway
|
|
 | Wireless Technologies Bring Efficiency to Data Transmission in Harsh Environments The UC-3400A and UC-4400A Series computers feature dual wireless capabilities for 4G/5G and Wi-Fi 6/6E, ensuring reliable operations in harsh environments. Leveraging Qualcomm's QXDM, Moxa offers advanced log analysis and troubleshooting support for enhancing wireless connection quality through log analysis, troubleshooting, and protocol decoding. |

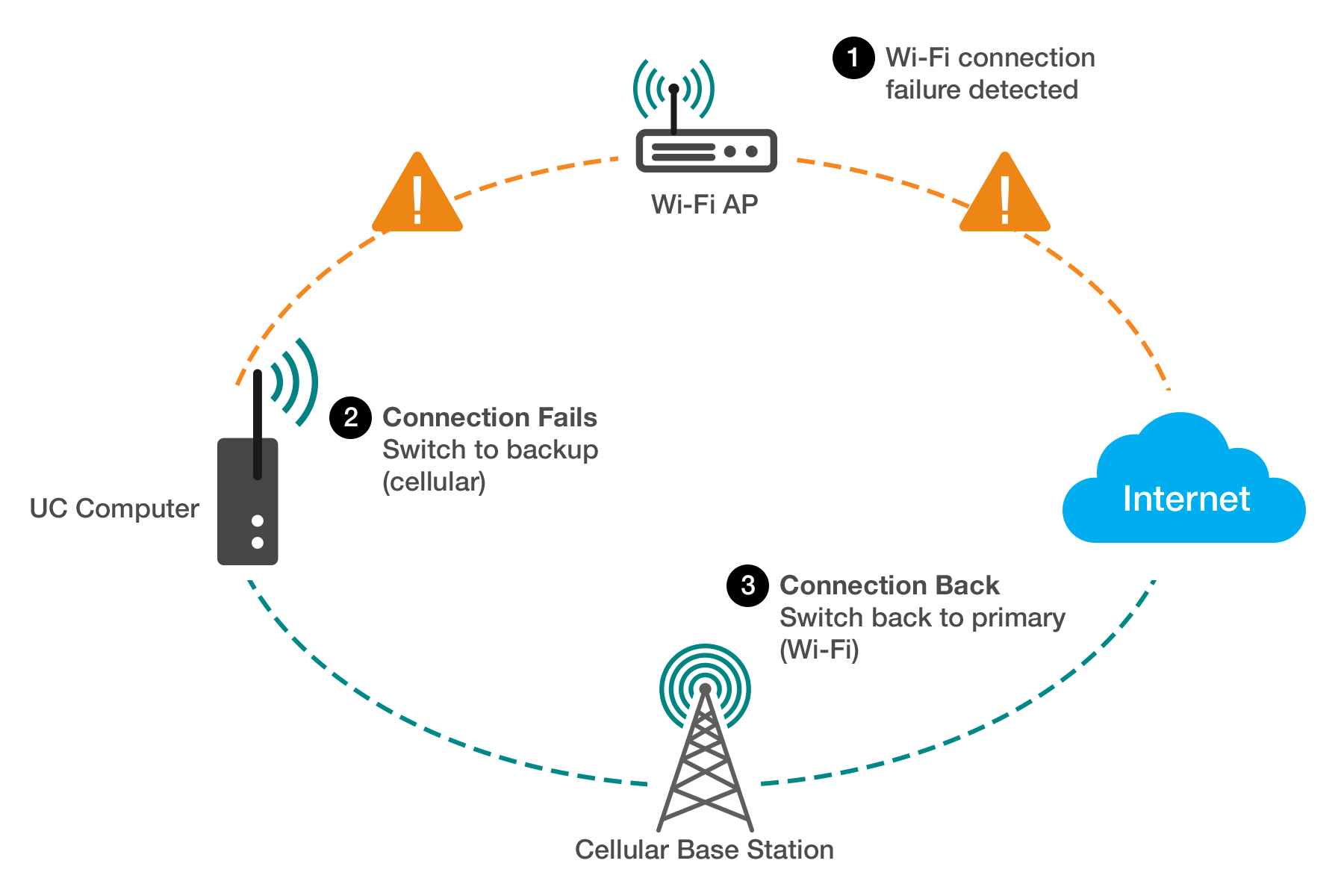

Moxa Connection Manager Automatic Network Failover Ensures Continuous Connectivity Moxa Connection Manager (MCM) allows for the creation of multiple profiles for network interfaces. When a connection fails, MCM can automatically failover to a connection with the highest priority based on your profile settings and switch back when the connection is restored. The user-friendly GUI helps set up device connections in just a few clicks. |  |

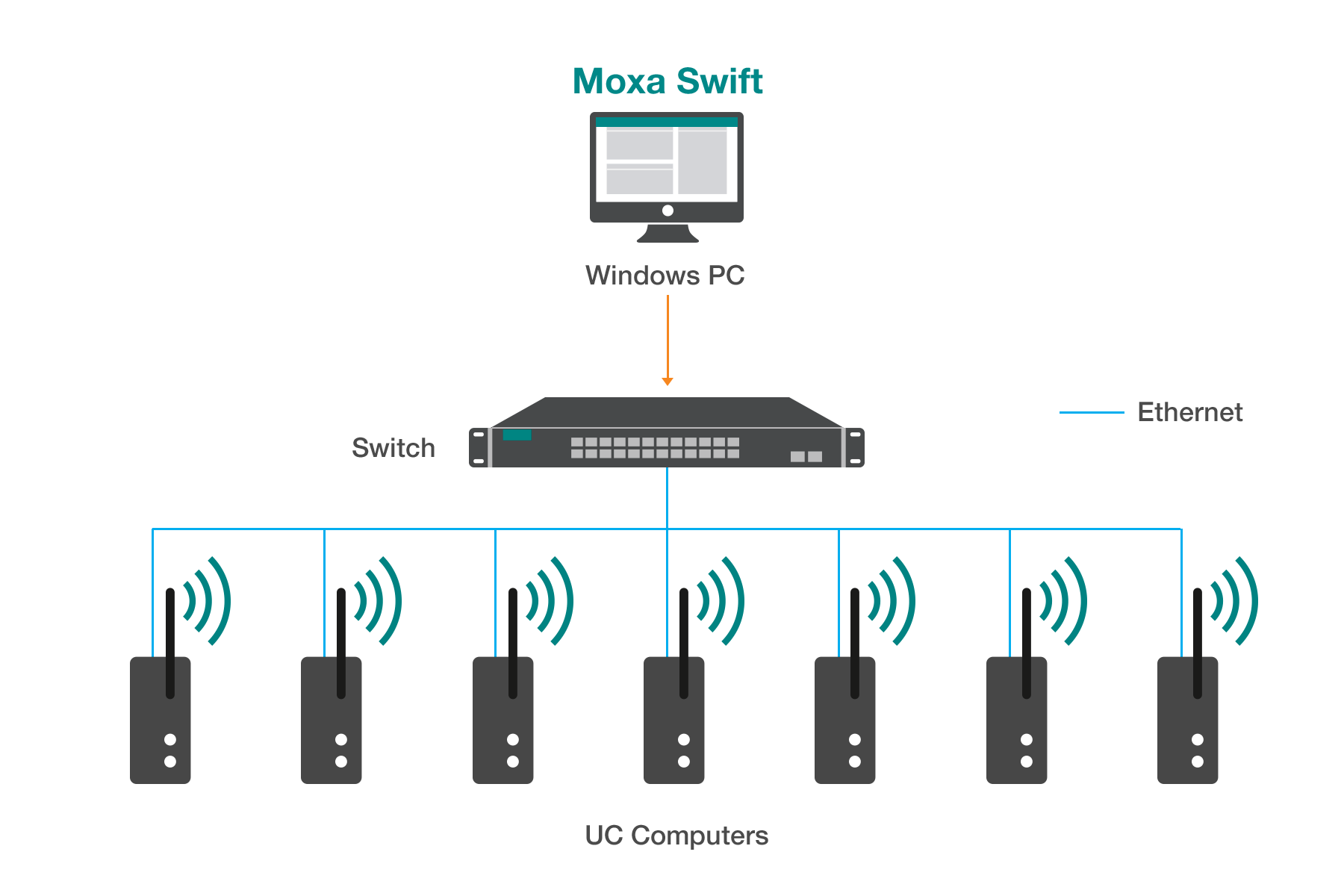

 | Streamline Large-scale Deployment With Effortless Provisioning Moxa Swift offers an intuitive web GUI for configuring and provision supported devices in batches. Use the tool to create a golden sample of the configuration on one computer and used this backed-up configuration settings to batch provision multiple industrial computers. |

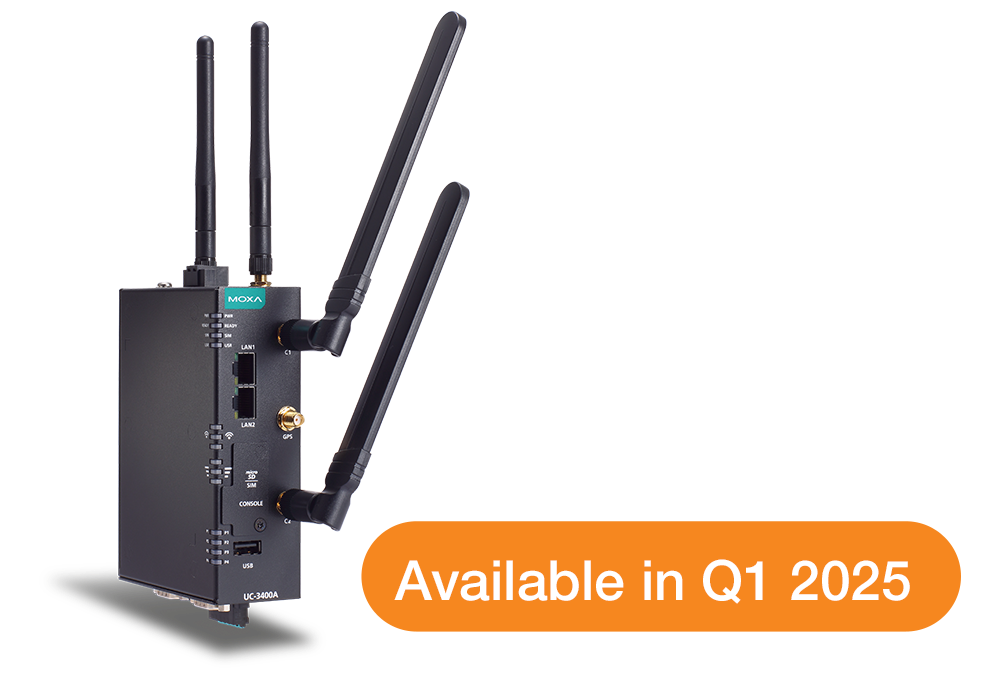

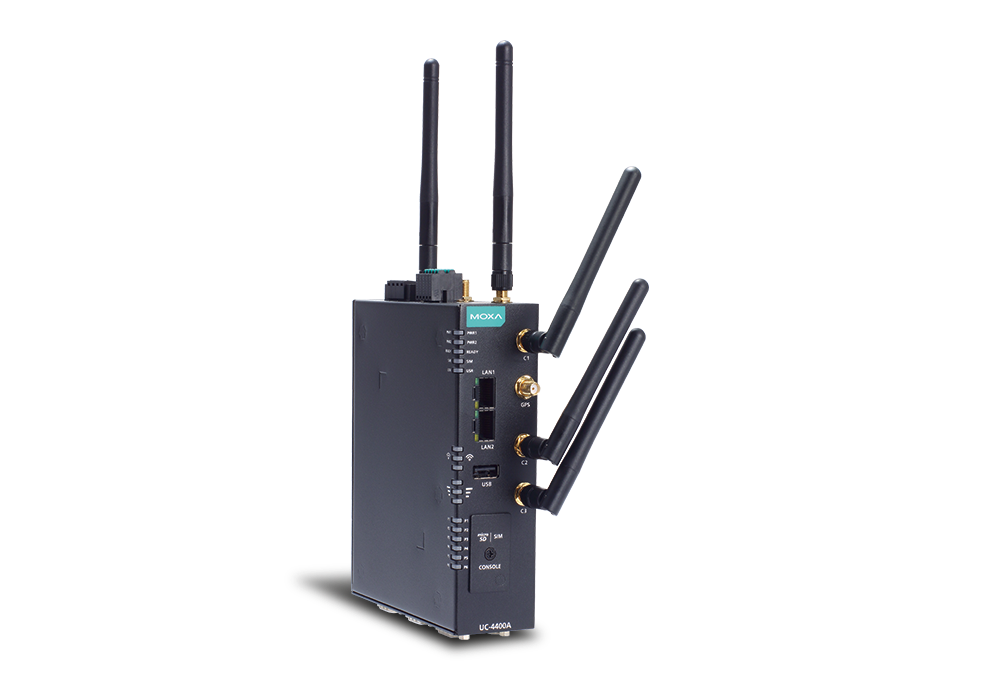

UC-3400A Series
| UC-4400A Series | |
| Industrial 4G and Wi-Fi 6 computers | Industrial 5G and Wi-Fi 6E computers | |
| CPU | Armv8 Cortex-A53 quad-core 1.4 GHz | Armv8 Cortex-A53 quad-core 1.6 GHz |
| Memory | 4GB DDR4 | 4GB DDR4 |
| OS | Moxa Industrial Linux 3 (Debian 11, kernel 5.10) Moxa Industrial Linux 4 (Debian 13, kernel 6.1) in late 2025 | Moxa Industrial Linux 3 (Debian 11, kernel 5.10) Moxa Industrial Linux 4 (Debian 13, kernel 6.1) in late 2025 |
| Security Module | TPM 2.0 (built-in) | TPM 2.0 (built-in) |
| Storage Slots | eMMC (16 GB preinstalled) microSD | eMMC (16 GB preinstalled) microSD |
| Interface | 2 LAN, 2 serial, and up to 2 CAN ports, USB 2.0 port | 2 LAN, up to 4 serial (two with 2-Kv isolation), up to 2 CAN ports, 4 DIs and 4 DOs, USB 2.0 port |
| Wireless | LTE/4G , BT and Wi-Fi 6 support (model with built-in LTE and Wi-Fi 6) | LTE/5G and Wi-Fi 6E/BT support (model with built-in 5G) |
Power Input Wide Temperature
| 9 to 48 VDC -40 to 70°C
CE, FCC, IC, UL, UKCA, NCC, RCM, RNZ, ATEX*, CID2* | Dual power inputs, 9 to 48 VDC -40 to 75°C (Non-wireless) AT&T, Verizon* CE, FCC, UL, BSMI, UKCA, RCM, KC, IC |

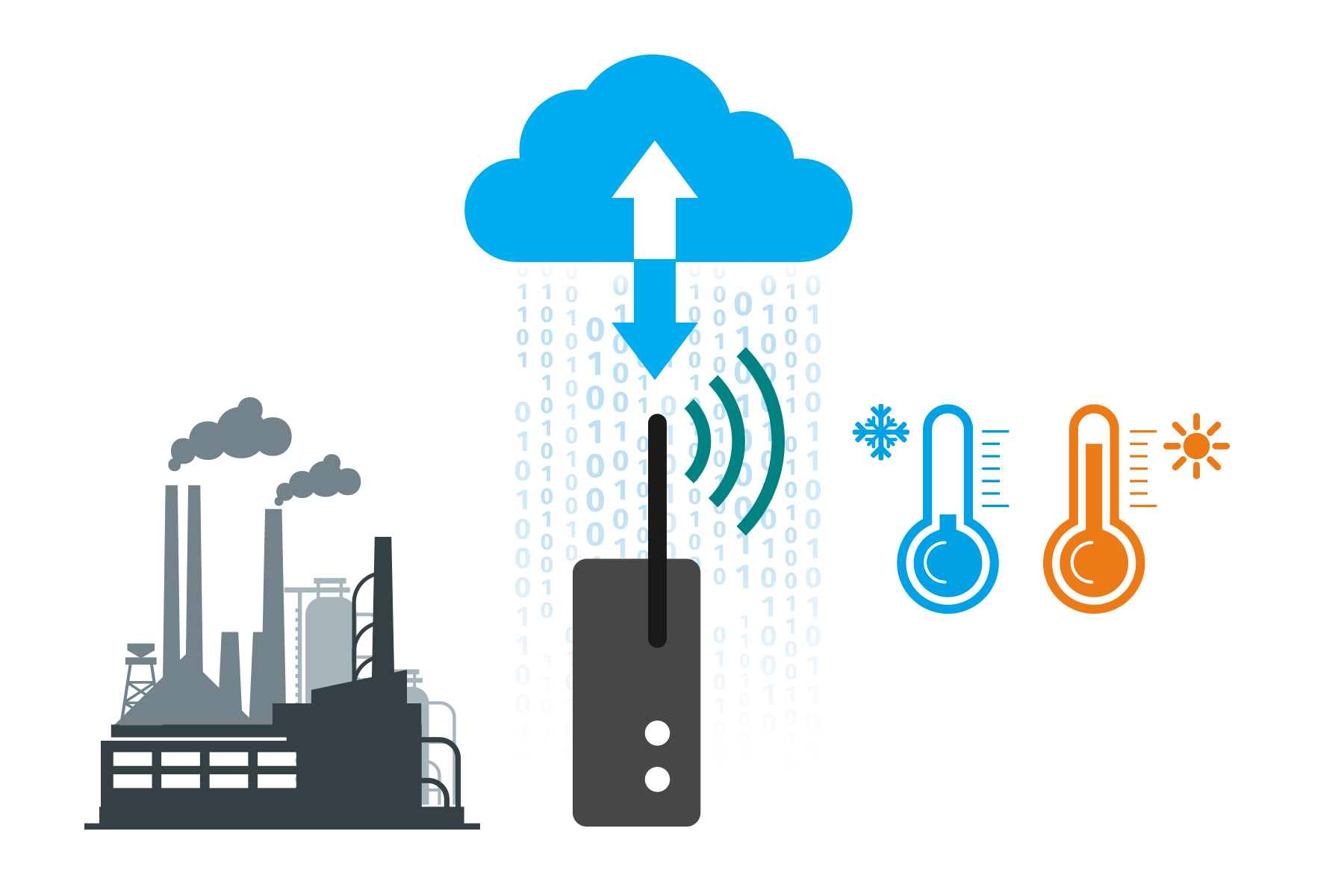

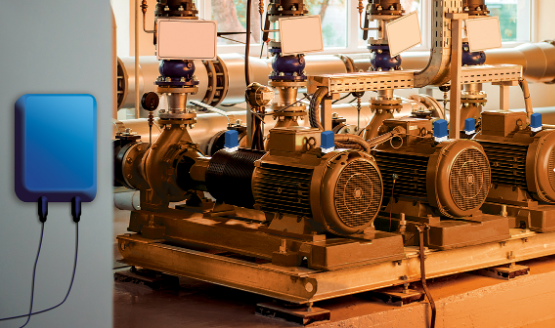

 | Increase Industrial Productivity With Real-time Machine Health MonitoringReliable, low-power edge computers are essential for machine health monitoring in harsh environments, as they collect sensor data and transmit it to the cloud for remote monitoring. |

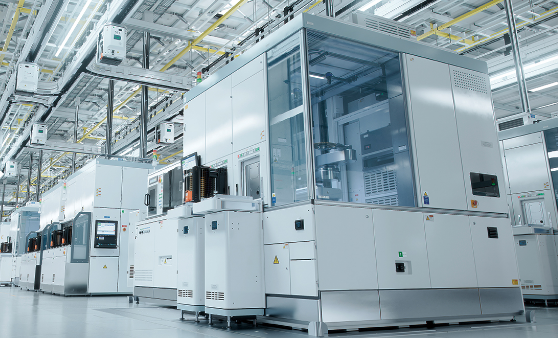

Efficient Monitoring for Semiconductor Manufacturing With 5G-ready Arm ComputersAn all-in-one solution with 5G connectivity and optional Wi-Fi for backup, reduces the need for multiple devices and saves cost and space. |  |
