R19L100-67FTP(HB)

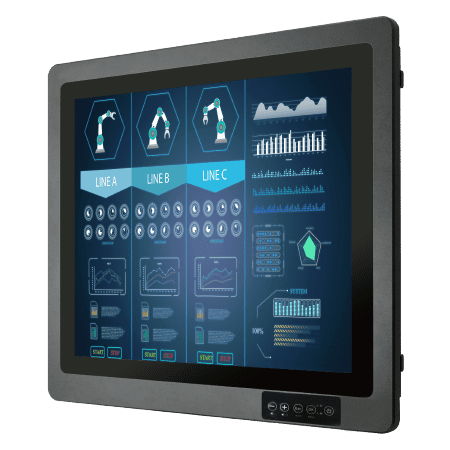

19" G-WIN IP67 Series Display

KEY FEATURES

• Totally sealed Full IP67 aluminum compact housing design
• 19-inch 1280 x 1024 panel with Projected Capacitive touch screen
• -10 to 55°C wide operating temperature
• Fanless, streamlined enclosure for highly efficient heat dissipation
• Rugged Front Anti-Impact Design
• Front control membrane keys lockable by software
• Full IP67 male connectors with external female cables

Download Datasheet

Easy-to-Clean Flat Surface

Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The display is easy to clean, plus the screen is resistant to water and liquid droplets.

Full IP67 Protection

The dust and waterproof display comply with IP67 standards. Plus, the M12 connectors are waterproof for varying industrial environments.

Fanless Cooling System

The fanless design eliminates dust circulation for improved product longevity – especially in heavy-duty applications where dusty conditions are prevalent.

Full Power Input Range

Since panel display and computers were not designed to be carried around, they rely on DC power via conventional external AC adapters. Winmate offers 9 to 36 Volt input power range options to fulfill a wide range of applications.

Anti-Shock and Vibration

The G-Win series is as tough as it gets. The displays are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensure the screen and housing are both rugged to the max.
