R19IH3S-MRA1FP

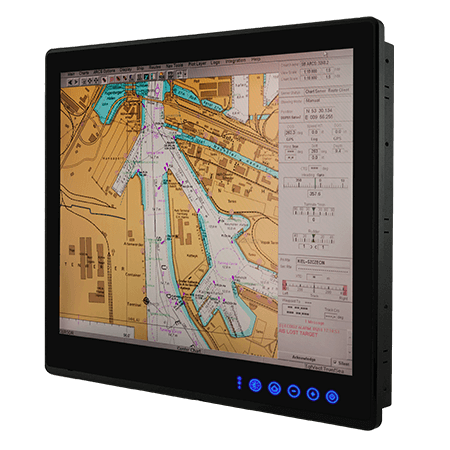

19" Intel® Core™ i5-5350U Flat PCAP ECDIS Marine Panel PC

KEY FEATURES

• 19” 1280 x 1024 resolution with projective capacitive multi-touch screen
• Edge-to-edge narrow bezel design and fanless cooling system
• Color calibrated for ECDIS compliance (Optional)
• Capacitive touch keys for quick function access and display control (Support ECDIS DAY, DUSK, and NIGHT mode switching)
• Optional 4 x COM port (NMEA 0183 protocol) 422/485 switchable via software
• Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10
• Support capacitive touch key lock / touchscreen lock function

Download Datasheet

Reliable Computing Certified for Marine Applications

Winmate ECDIS Marine Panel PCs are built and tested according to DNVGL-CG-0339 Standard, IEC60945, and IACS-E10 to meet the marine industry's international regulatory requirements. Winmate performs in-house reliability test to ensure optimal performance in harsh maritime environments.

ECDIS Reliability for the Real Marine Colors Representation

On Winmate ECDIS, Marine Panel PC users can adjust to a day, dusk, or night mode through the capacitive touch key to accommodate any lighting situation. Winmate calibrates color settings at the factory for accurate color reproduction according to the IEC 61174 ECDIS Standard.

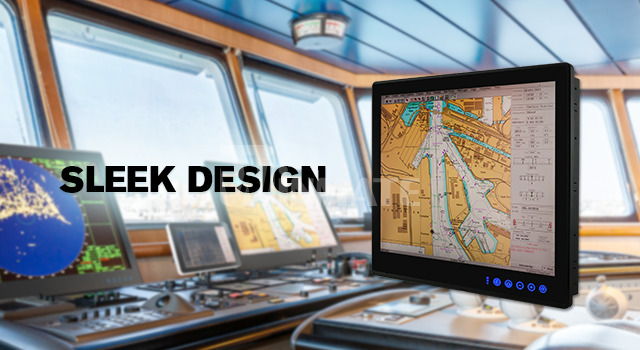

Sleek Design for Modern Bridge Workstations

Easy to maintain and clean. The glass cover lens provides excellent protection from scratch and reduces the gap for a possible accumulation of dust and liquid. The true-flat surface also gives a slim and elegant appearance to the device goes beyond that of the standard industrial, marine computers with a sleek and edge-to-edge design, rugged construction, powerful performance, and flexible mounting options.

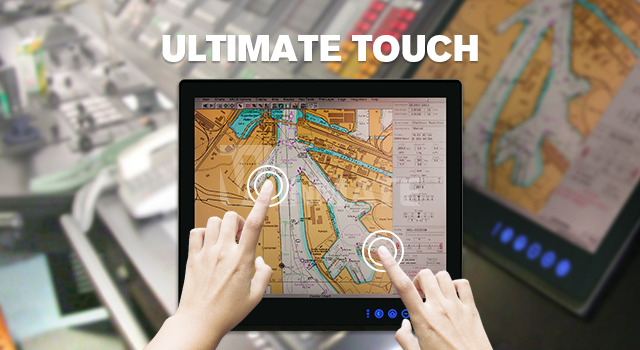

Ultimate Touch Experience

Enhance customer experience with PCAP touch that supports multi-touch and can easily be controlled by fingers. Enjoy every touch and convenience when using the ECDIS Marine Panel PC, and experience the ultimate durability in some of the most demanding applications, such as bridge navigation and control.

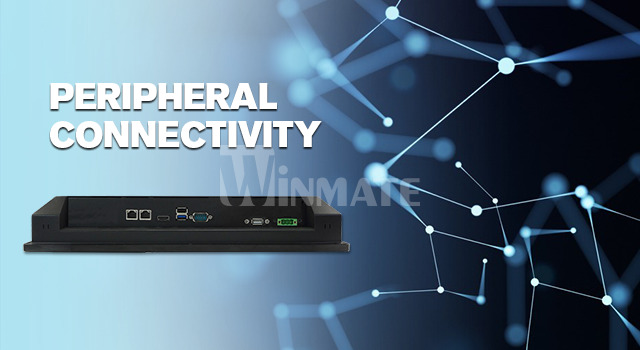

Peripheral Connectivity

Onboard connectivity consists of Ethernet LAN, two USB2.0, one USB3.0, HDMI, Optional 4-Channel Isolated Digital Input and Output, optional four COM ports RS232/422/485 - that meet the NMEA 0183 National Marine Electronics Association physical layer standard -switchable via software.
