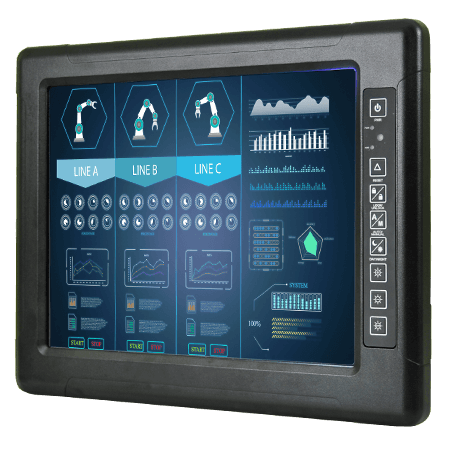

R15L100-67C3(HB)

15" G-WIN IP67 Series Display

KEY FEATURES

• High Quality 15" XGA Panel, 1024 x 768 resolution, 1000 nits
• Full IP67 Dust Water-proof Protection
• Aluminum Housing with Anti-Corrosion Treatments
• Built-in ambient Light sensor
• Optical Bonding with Anti Moisture Treatments
• Anti-Shock and Vibration Standard according to IEC60068-2-27
• 5 Wire Resistive Touchscreen / Anti-Reflective Protection Glass
• 9V ~ 36V DC Isolation Wide Range Power Input
• Compliance with EN50155

Download Datasheet

Easy-to-Clean Flat Surface

Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The display is easy to clean, plus the screen is resistant to water and liquid droplets.

Full IP67 Protection

The dust and waterproof display comply with IP67 standards. Plus, the M12 connectors are waterproof for varying industrial environments.

Fanless Cooling System

The fanless design eliminates dust circulation for improved product longevity – especially in heavy-duty applications where dusty conditions are prevalent.

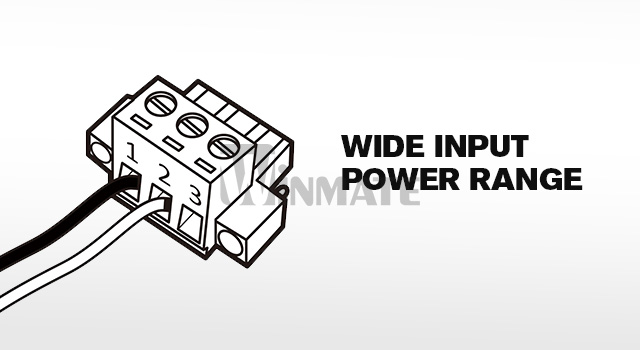

Full Power Input Range

Since panel display and computers were not designed to be carried around, they rely on DC power via conventional external AC adapters. Winmate offers 9 to 36 Volt input power range options to fulfill a wide range of applications.

Anti-Shock and Vibration

The G-Win series is as tough as it gets. The displays are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensure the screen and housing are both rugged to the max.
