R10L100-MLT2

R10L100-MLT2

R10L100-MLT2

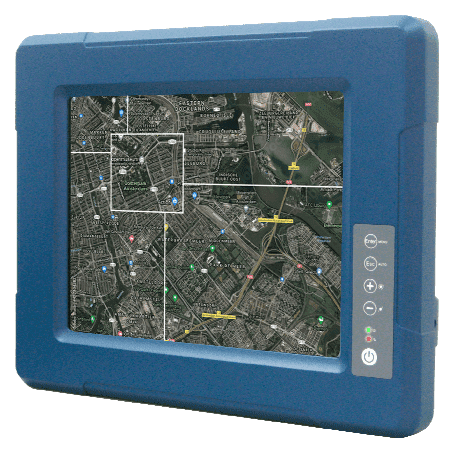

10.4" G-WIN Defence Display

KEY FEATURES

  • 10.4", 1024 x 768 resolution
  • AR protection glass , 5-­wire resistive touch screen(Optional)
  • Compliant MIL-­STD 810G/ MIL­-STD 461E
  • Convenient on­screen display controls
  • Fanless design and efficient heat dissipation
  • Power input 12 V DC military-­grade connector (Optional 9­36 V DC wide range )
  • Full IP65 dust and water proof enclosures, except I/O parts
  • Supports VESA mount

Download Datasheet

Reliable Computing Tailored for Defence Applications

To meet the military and defense's regulatory requirements, all Winmate's G-WIN Defence Displays are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standards. Winmate performs in-house reliability tests to ensure optimal performance in harsh defence environments.

Defence Vehicle Focused Design

The G-WIN Defence Displays offer robust, rugged computing solutions for armored and defence vehicles - vibration resistant MIL-STD-810G, water, and dustproof IP6x fixed-mount or mobile with vehicle docking solution for vehicle navigation, location tracking, and real-time communications between the vehicle and control center.

Built-to-Survive Extreme Environments

The G-WIN Defence Displays are finished with an IP65-rated housing against water and dust and withstand extreme temperatures. Suitable for both cold and hot weather conditions.

Defence-Grade Lockable Power Input Connector

The G-WIN Defence Displays come with defence-grade lockable MIL-DTL-38999 type I high power connector that accepts a wide power input range 9 to 36V DC. Suits the increased need for power carrying capability, safety, and defence requirements. Compatible with existing defence vehicle systems.

Ultimate Touch Experience and Convenient On-Screen User Controls

The G-WIN Defence Displays feature a user-friendly touchscreen and physical OSD buttons on the front panel for fast access to the central control.
