| Key Features
|
Intel® Comet lake-S CPU, 2xLAN, VGA+HDMI, 4xCOM, 4xUSB3.0?5xUSB2.0, 7xPCIe/PCI, 4xSATA Bay, 4U rackmount, ATX power

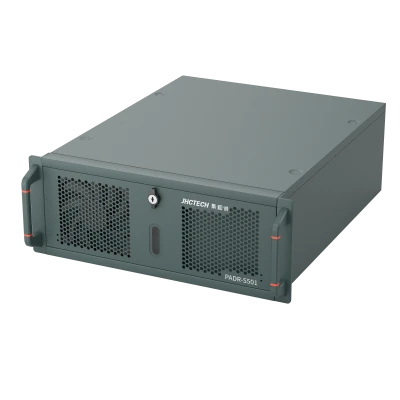

PADR-S501-971 is a standard 19”4U rackmount industrial computer with an Intel H420E chipset powered by Intel® gen 10th Comet lake-S LGA1200 series CPU. Rich functional IO, 7 PCIe/PCI expansion capabilities, excellent air cooling design, power consumption ladder ATX power supply selection, suitable for machine vision, CNC machine tools and factory production line automation and other fields.
Specification
System | CPU+PCH | Intel gen 10 Comet lake-S Core i9/i7/i5/i3/Pentium/Celeron LGA1200 CPU, up to 125W, H420E chipset |
| Memory | 2x288-pin Non-ECC UDIMM , dual channel DDR4 2400/2666/2933MHz, up to 64GB | |
| Expansion | 1xPCIeX16 Gen3.0 slot, 3xPCIeX4 Gen3.0 slot (PCIeX1 signal?the first slot(X2 signal) can share the other 2 slots signal through BIOS settings, so it can be changed to X4 signal, at this time the other 2 slots are unavailable), 3x32-bit PCI slot | |
| Graphics | Intel UHD Graphics, Supports DirectX 12, OpenGL 4.5 and OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 HDMI max. res. 4096*2160@30Hz?VGA max. res. 1920*1200@60Hz | |
| Audio | Realtek ALC897 controller, Support 5.1 channel | |
| LAN | 1xIntel I226V?10M/100M/1000M self-adapt?support WOL 1xIntel I219LM?10M/100M/1000M self-adapt?support WOL | |
| Storage | 4xSATA3, 6.0Gbps interface, the box is designed with 4x3.5 "and 2x2.5" 5 anti-vibration hard disk bay, 1 ultrathin DVD driver bay, can realize multi-category combined storage | |
Rear I/O
| 2xLAN(RJ45); 1xHDMI+1xVGA; 1xLine out+1xMic 2x3.5mm phone jack 4xUSB3.2 Gen1 (5Gb/s, Type A), 2xUSB2.0(Type A)?support USB Power to switch between Systemmode(+5V) and +5VSB mode through jumper 2xRS232/422/485 (DB9 male), 2xRS232(DB9 male), optional 1xLPT (DB25 female) | |
| Front I/O | 2xUSB2.0(Type A) | |
| Internal I/O | 8bit DIO, 1xUSB2.0(Type A), 1*LPT pin header?2*RS232 pin header, PS/2 wafer, the built-in interface can be elicited through an extension window | |
| Switch & LED | Front with Power Button, Reset Button, Power LED, HDD LED, on board with USB Power jumper, AT/ATX jumper, Clear CMOS jumper | |
| Power Supply | AC100-240V input, standard ATX power supply 300W, optional 500W and 750W; TDP: 184.85W (I7-10700K CPU/16G DDR4/256G SSD) | |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
| Security | Support Infineon TPM2.0(Opt.) | |
| OS Support | Windows 10, Windows 11?Linux Ubuntu | |
Mechanical | Structure and Mounting | Door with lock design, SGCC steel plate, metal mold molding; Mounted on 19”rack, optional mounting rail set |
| Cooling | Linear airflow design, front 12025 ball bearing fan, optional 2 rear 8025 ball bearing fan | |
| Color | Granite grey | |
| Dimension | (W*H*D)?430x470x173mm | |
| Net weight | 14.0kg | |
Environmental | Operating Temperature | 0?50? |
| Storage Temperature | -40°C~70°C | |
| Storage Humidity | 10~95%@40°C, Non-condensing | |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) | |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? | |
| EMC/Certification | CE/FCC Class A, 3C |
